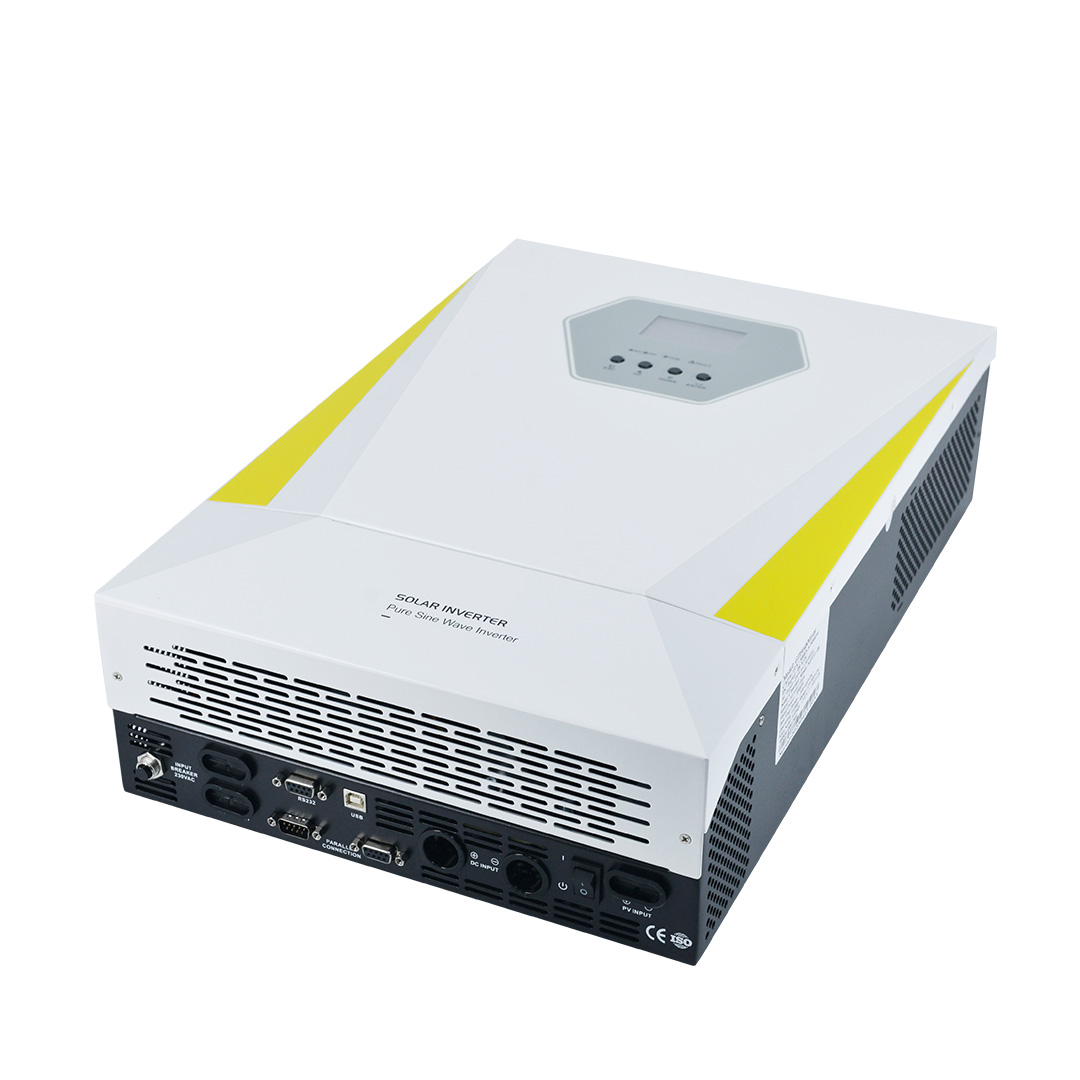

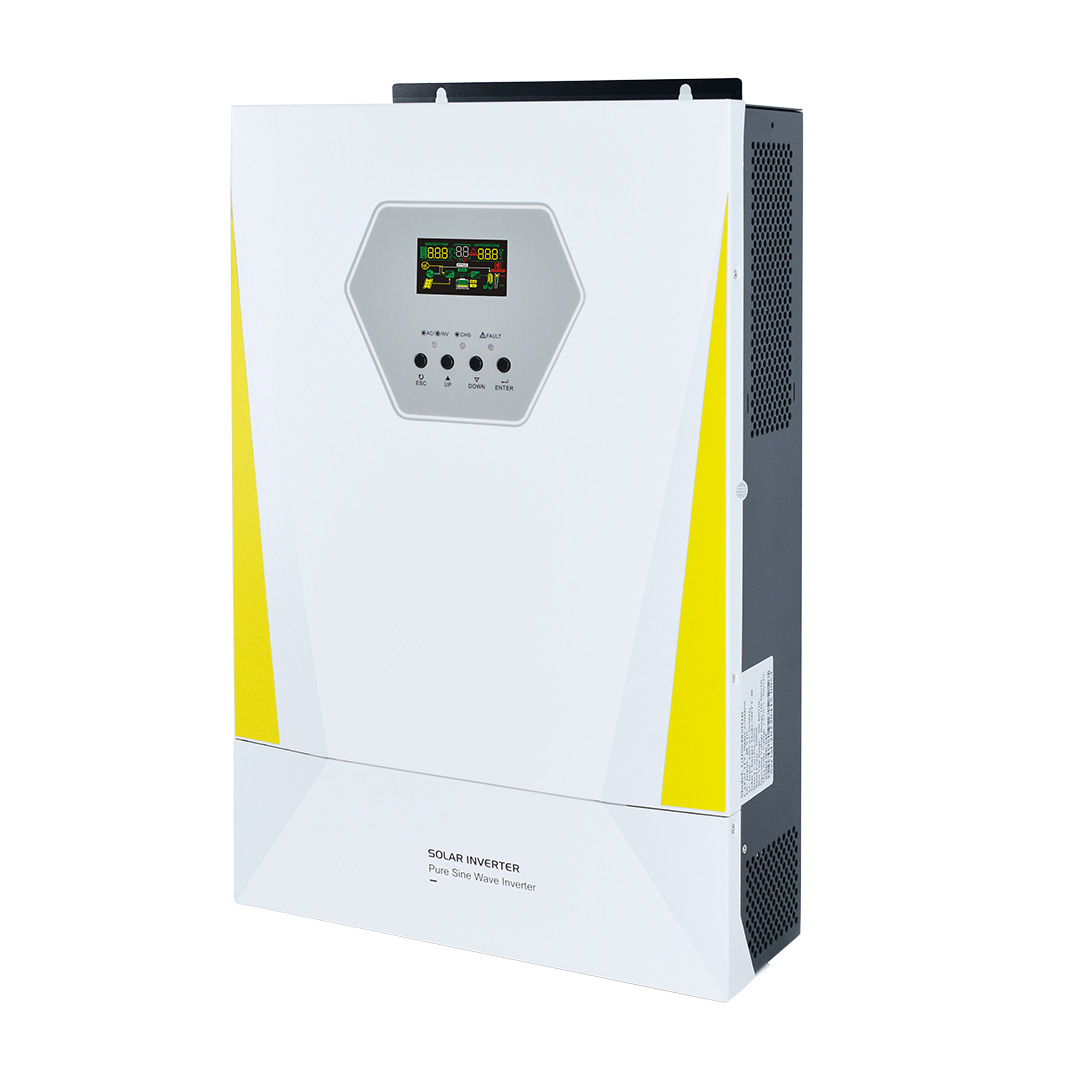

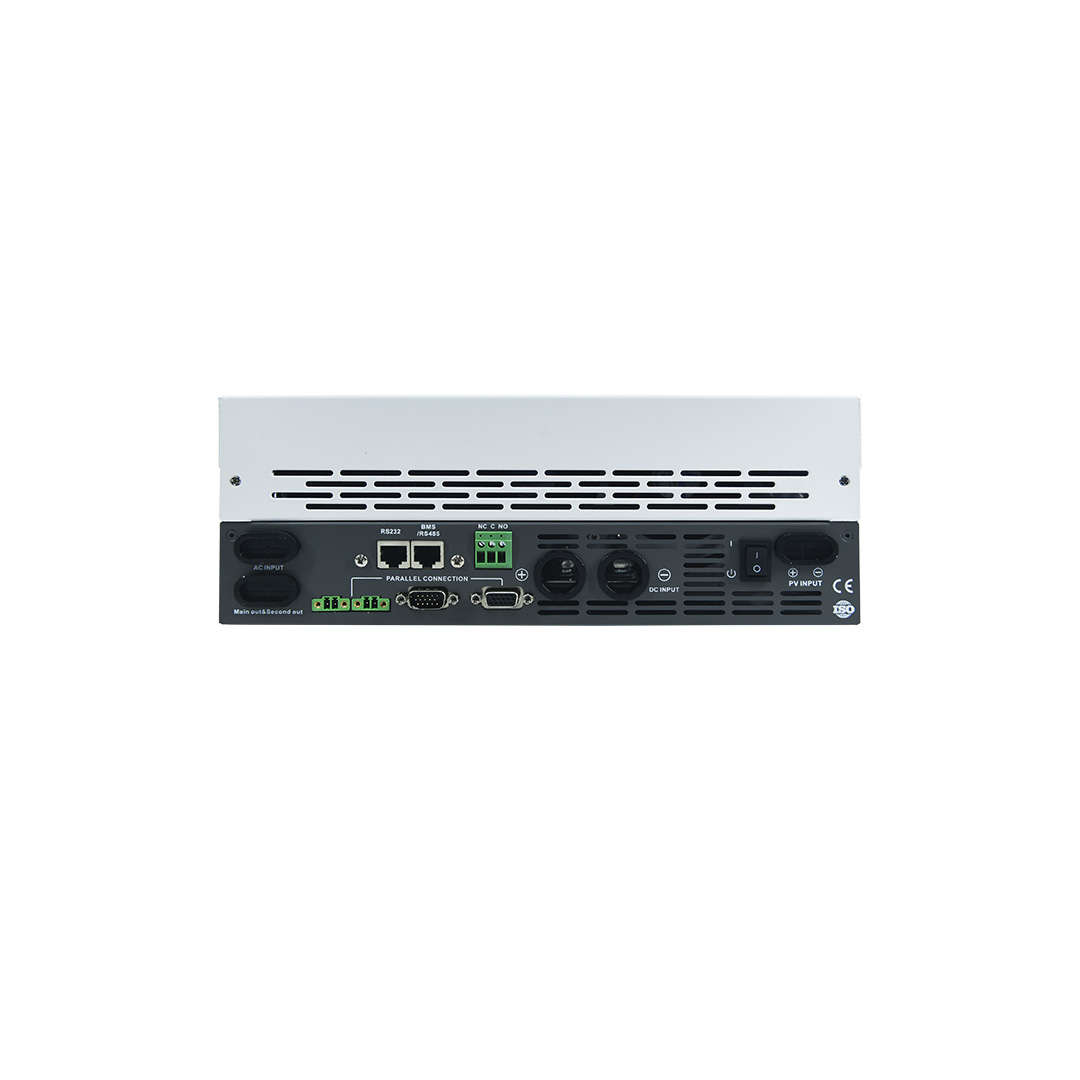

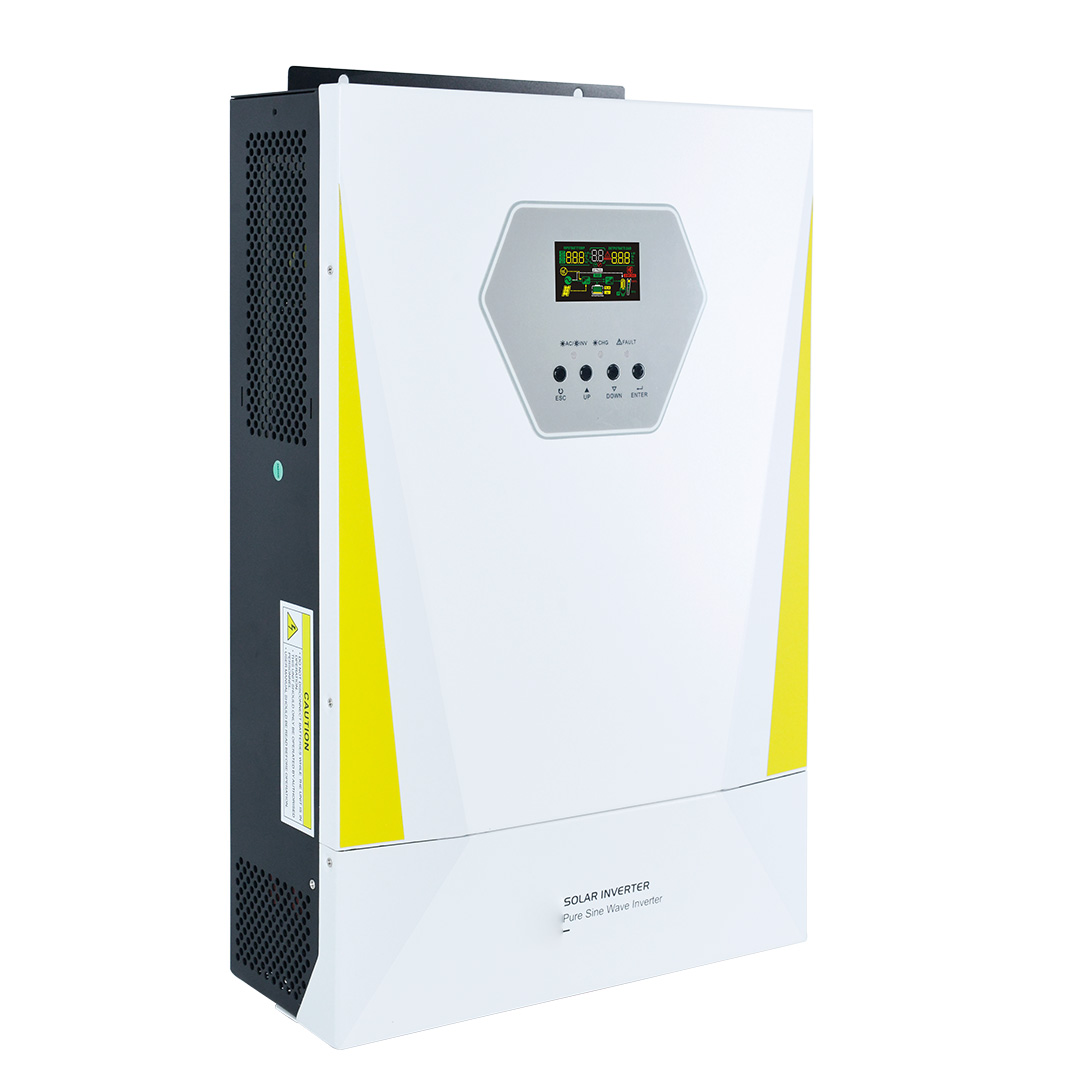

HNF-3-5K
HINA
HINA-Inverter001
| Quantity: | |
|---|---|
A residential inverter converts the DC power generated by rooftop solar panels into usable AC electricity for home consumption. It typically connects multiple panels in a “string,” offering high efficiency and centralized control for the PV system. This type of string inverter is widely used in household solar energy systems due to its reliability, cost-effectiveness, and stable performance.
| 型Model | 3024JMH | 3624JMH | 5548JMH | 6248JMH | |
| Input voltage | input Formation | L+N+PE | |||
| AC Input | 220/230/240VAC | ||||
| Input voltoge Range | 90-280VAC±3V(Normal Mode)170-280VAC±3V(UPS Mode) | ||||
| Frequency | 50/60Hz(Adaptive) | ||||
| Output | Rated Power | 3000w | 3600w | 5500w | 6200w |
| Output voltage | 220/230/240VAC±5% | ||||
| Output Frequency | 50/60Hz±0.1% | ||||
| Output Wave | Pure sine Wave | ||||
| Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | ||||
| Peak Power | 6000VA | 7200VA | 10000VA | 12400VA | |
| Overload Ability | Battery Mode:21s@105%-150%Lood I1s@150%-200%Load 400ms@>200%Load | ||||
| Rated voltoge | 24VDC | 48VDC | |||
| Battery | Constant charging Voltage(Adjustable) | 28.2VDC | 56.4VDC | ||
| Float Charging Voltoge(Adjustable) | 27VDC | 54VDC | |||
| Pv Charging Method | MPPT | ||||
| Dimension | L*W*H ( m m ) | 495*312*146mm | |||
