HNF-3024EMH
HINA
HINA-Inverter002
| Quantity: | |
|---|---|

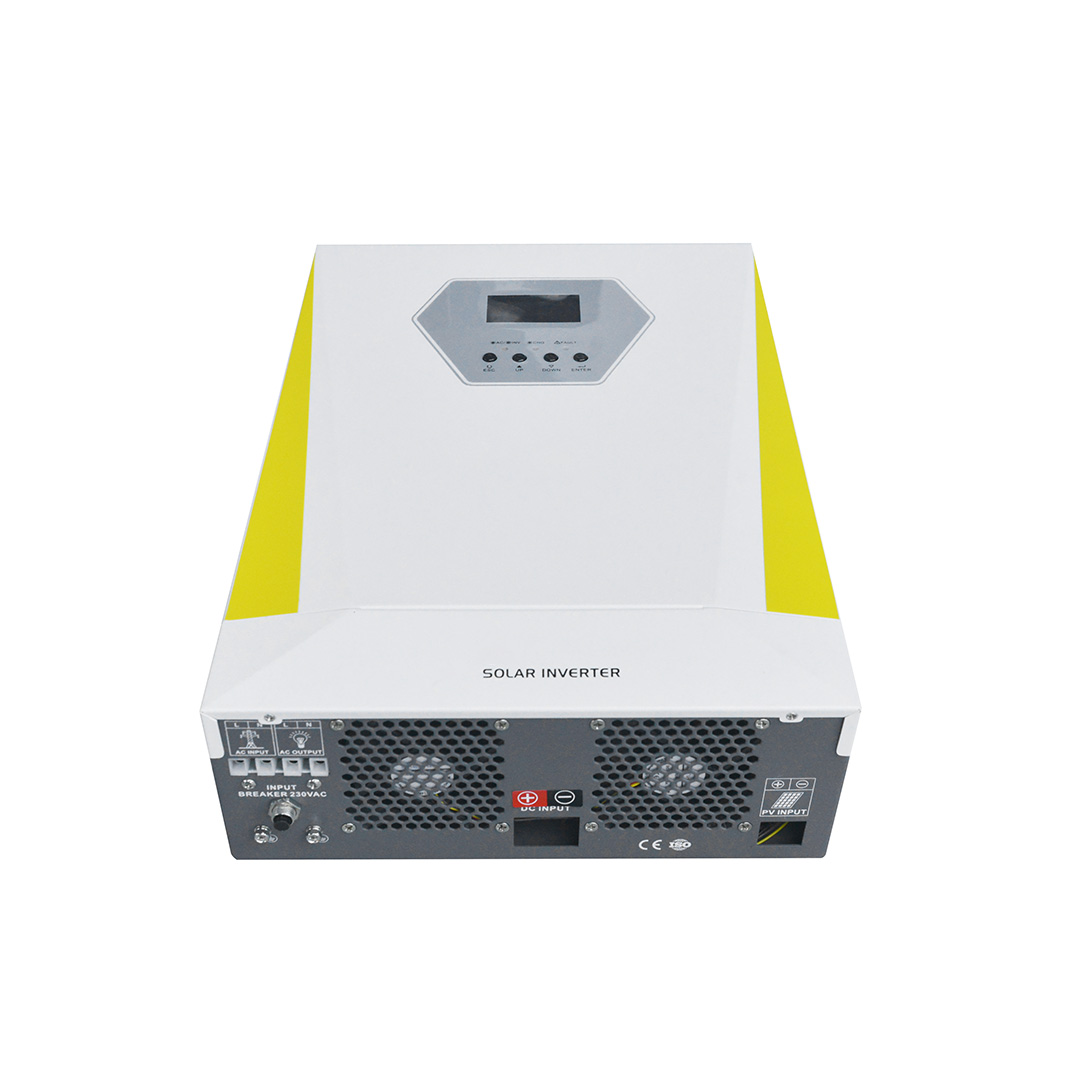

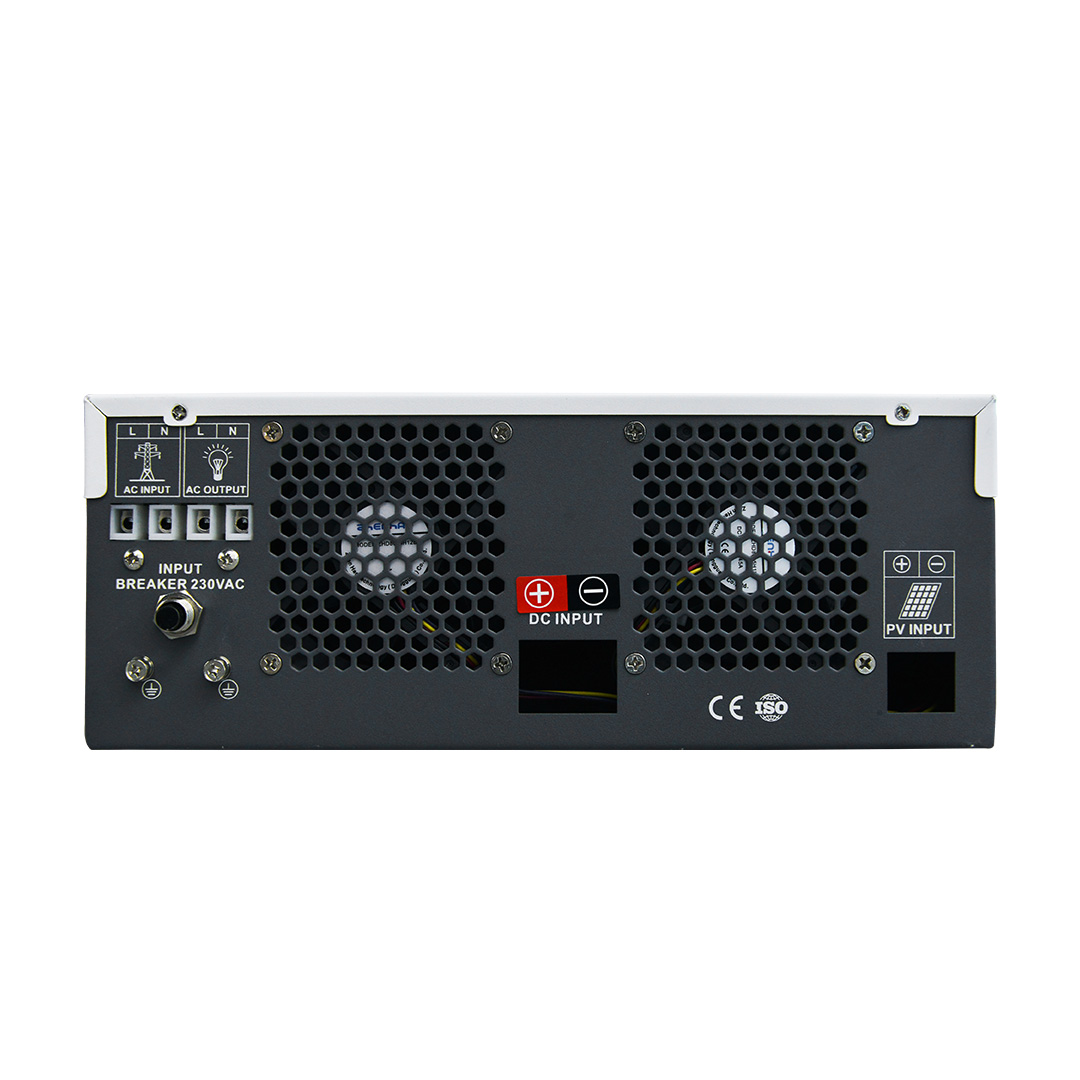

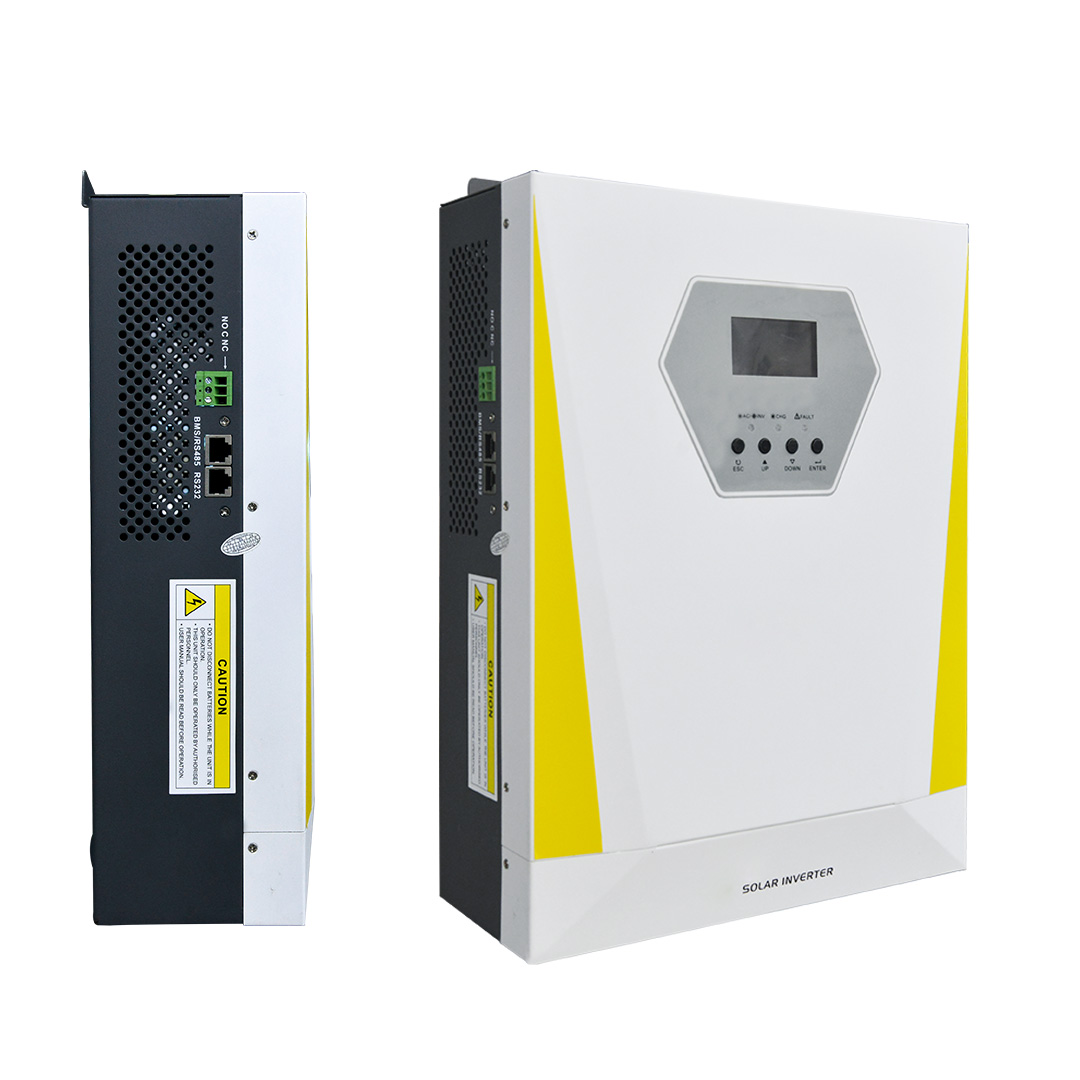

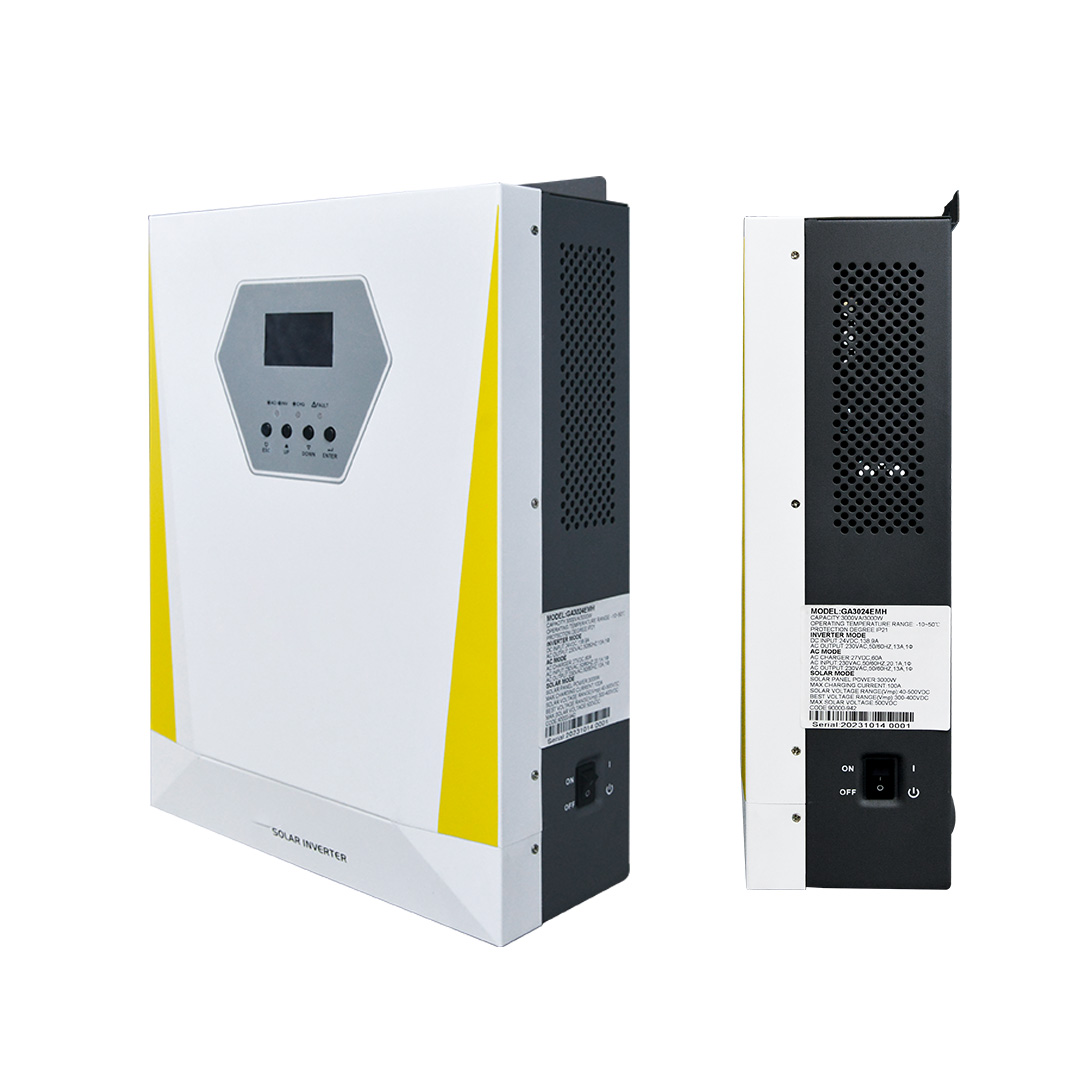

A residential inverter converts the DC power generated by rooftop solar panels into usable AC electricity for home consumption. It typically connects multiple panels in a “string,” offering high efficiency and centralized control for the PV system. This type of string inverter is widely used in household solar energy systems due to its reliability, cost-effectiveness, and stable performance.
| Model | 3024EMH | |
| AC Input voltage | AC Input | 220VAC/110VAC |
| Input voltage Range | 90-280VAC±3V(Normal Mode)170-280VAC±3V(UPS Mode) | |
| Input Frequency | 50/60Hz±5% | |
| Output | Rated Power | 3000w |
| Output voltoge | The output voltge under mains power is the same as the input voltage | |
| Output Frequency | The output frequency under mains power is the same as the input frequency | |
| Output voltoge | 220VAC±10%(IOVAC±10%) | |
| Output Frequency | 50HZ or 60HZ±1% | |
| Output Wave | Pure Sine Wave | |
| Battery | Battery Type | External lead-acid battery,Gel battery.water battery or Lithium battery |
| Rated voltage | 24VDC | |
| Constant Charging Voltoge(Adjustable) | 28.2VDC | |
| Dimension | L*W*H ( m m ) | 345*254*105mm |
