An off-grid solar system is not only an environmentally friendly solution but also a practical way to ensure energy independence. Whether you're looking to power a remote cabin, reduce your reliance on the utility grid, or go completely off the grid in your home, this guide provides everything you need to know about building your own off-grid solar system, including the key components, sizing, costs, and installation tips. We will also explore important mounting system options like the Solar Flat Roof Mounting System and Solar Tile Roof Mounting System to ensure your solar panels are installed securely and efficiently.
An off-grid solar system is a stand-alone power solution that operates independently from the utility grid. Instead of drawing power from the local power company, it generates electricity from the sun and stores it in batteries for later use. Off-grid systems are ideal for homes or properties in remote locations, areas with unreliable utility connections, or individuals who want to reduce their environmental footprint by using renewable energy.
Energy Independence: One of the most compelling reasons to switch to an off-grid solar system is to achieve energy independence. You will no longer rely on the local utility company, which means you're protected from power outages, rising utility prices, and grid failures.
Sustainability: Solar energy is a renewable resource that reduces your carbon footprint. By using a clean energy source like solar, you help minimize your environmental impact and reduce your dependence on fossil fuels.
Cost Savings: While the initial cost of setting up an off-grid system can be high, the long-term savings are significant. After the system is installed, you'll no longer have to pay monthly electricity bills, which can lead to substantial savings over time. Additionally, with advancements in solar technology, the cost of solar panels and related components has decreased in recent years, making it more affordable than ever to go off the grid.
Building a functional and efficient off-grid solar system requires several components that work together to capture, store, and distribute energy. Understanding these components is essential to building a system that suits your energy needs.
Solar panels are the primary source of energy generation in your off-grid system. These panels capture sunlight and convert it into electricity using photovoltaic (PV) cells. The two main types of solar panels are:
Monocrystalline: Known for high efficiency and long lifespan. These panels are made from a single crystal structure, making them the most efficient at converting sunlight into energy.
Polycrystalline: These are slightly less efficient but are typically more affordable. Made from multiple silicon crystals, they are a great option for those looking to balance cost and efficiency.
Thin-Film: These panels are lighter and more flexible but tend to have lower efficiency. They are usually used for specific applications or when space is not a limiting factor.
When choosing solar panels, it's important to consider factors such as your energy needs, available roof space, and the amount of sunlight your location receives.
The charge controller regulates the flow of electricity between the solar panels and the batteries. Without it, the battery could become overcharged, potentially causing damage or shortening its lifespan. There are two primary types of charge controllers:
PWM (Pulse Width Modulation): These controllers are simple and cost-effective but slightly less efficient in converting power from solar panels.
MPPT (Maximum Power Point Tracking): MPPT controllers are more advanced and extract more power from your solar panels, especially in low-light conditions, making them more efficient and ideal for larger systems.
Batteries are critical for storing the energy generated by the solar panels. During the day, your solar panels will generate more energy than you need, and this excess power is stored in the battery bank. At night or during cloudy days, you can draw power from the batteries.
The two most common types of batteries used in off-grid solar systems are:
Lead-Acid Batteries: These are affordable and reliable, though they have a shorter lifespan compared to lithium-ion batteries.
Lithium-Ion Batteries: These batteries last longer, are more efficient, and can discharge more completely than lead-acid batteries, making them an excellent choice for off-grid systems, especially in areas where you need consistent performance.
The inverter is responsible for converting the DC (Direct Current) power stored in the batteries into AC (Alternating Current) power, which is used by most home appliances. There are two main types of inverters:
Pure Sine Wave Inverters: These are the most efficient and provide the cleanest form of energy, making them ideal for sensitive electronics like computers and medical equipment.
Modified Sine Wave Inverters: These are more affordable but are not suitable for all types of appliances, particularly those with motors, such as refrigerators or air conditioners.

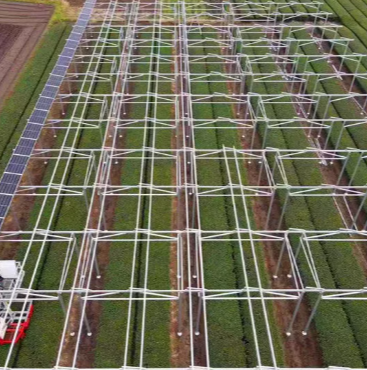

Mounting systems are essential for securing solar panels in place. The type of mounting system you choose will depend on your roof type and solar panel orientation. Two common mounting systems are:
Solar Flat Roof Mounting System: This system is designed for flat roofs and can be adjusted to an optimal angle to maximize sunlight exposure. Flat roof systems are easy to install and cost-effective. They also allow for a clean, minimalistic installation with the option to add multiple panels in the future.

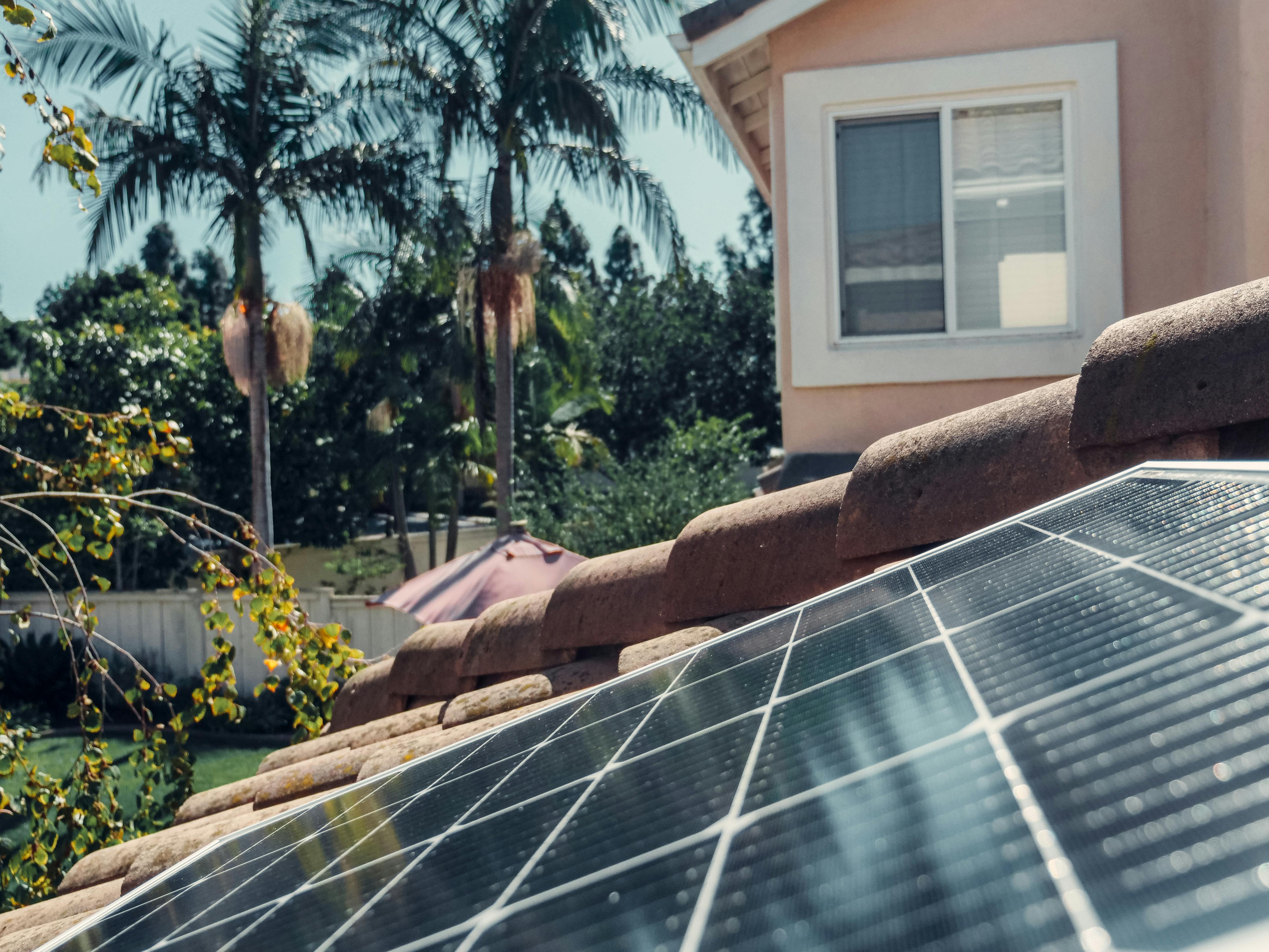

Solar Tile Roof Mounting System: These are designed for homes with tiled roofs. They integrate seamlessly with the existing roof tiles, providing a secure and aesthetically pleasing installation. Tile roof systems are highly durable, weather-resistant, and ideal for long-term use.
The wiring used in an off-grid solar system connects the panels, charge controllers, batteries, and inverter. Proper wiring ensures safe, efficient power flow. It’s essential to use the correct wire sizes and types to prevent overheating or power loss.
Additional electrical components include fuses, breakers, and disconnect switches, all of which protect the system from electrical surges, overloads, or malfunctions.
Properly sizing your off-grid solar system is crucial to ensure it meets your energy needs while avoiding wasted expenses on overcapacity. Here are the steps to help you determine the right system size:
Start by calculating how much energy you use on a daily basis. Make a list of all the devices and appliances you want to power, such as lights, refrigerators, fans, or water pumps. Check their wattage (usually listed on the appliance) and estimate how many hours per day each appliance will be used. Multiply the wattage by the hours to get the watt-hours (Wh) for each appliance.
For example:
Lights (20W) x 5 hours = 100 Wh
Refrigerator (200W) x 24 hours = 4800 Wh
Fan (150W) x 3 hours = 450 Wh
Total energy consumption per day = 5350 Wh (or 5.35 kWh).
Next, determine how much sunlight your location receives on average each day. This is known as the solar insolation. Areas with more sunlight will generate more energy, and this affects how many panels you will need. Online tools can help you estimate average solar hours based on your geographic location.
To calculate how many solar panels you need, use the formula:
Required Solar Panel Capacity = Daily Energy Consumption / Solar Hours per Day
For instance, with a daily consumption of 5.35 kWh and an average of 5 hours of sunlight:
Required Solar Panel Capacity = 5350 Wh / 5 hours = 1070W
So, you will need a system that provides at least 1,070W of capacity. Depending on the panel efficiency and available roof space, you may need more or fewer panels.
To ensure you have power when the sun isn't shining, you need to calculate how much energy you need to store in your batteries. If you want backup power for 2 days, you will need a battery bank that stores at least 10.7 kWh of energy (twice your daily energy usage).
Select an inverter that can handle your system’s peak load. Add up the wattage of the devices that will run simultaneously and choose an inverter that can handle this peak load. For example, if your refrigerator and lights are running at the same time, your inverter should be sized to handle their combined load.
Peak Load = 1,500W
Surge Factor = 1.5
Required Inverter Size = 1,500W x 1.5 = 2,250W
The cost of building an off-grid solar system varies based on several factors, including the components you choose, the system size, and the complexity of the installation. Here’s a breakdown of the primary cost factors:
| Component | Estimated Cost Range |
|---|---|
| Solar Panels | Moderate to High |
| Battery Storage | Moderate to High |
| Charge Controllers | Low to Moderate |
| Inverters | Low to High |
| Mounting Systems | Low to Moderate |
| Installation | Variable |
Location: Costs can vary depending on where you live, including installation labor rates and the availability of solar components.
Installation Complexity: A complex roof setup or system design may increase the overall cost.
An off-grid solar system is relatively low-maintenance, but certain tasks need to be performed regularly to ensure optimal performance. Here's what you need to do:
Clean Solar Panels: Solar panels can accumulate dust and dirt, reducing their efficiency. Cleaning them every few months will keep your system running at its best.
Monitor Battery Health: Check your batteries’ voltage regularly. If the batteries are not charging or discharging properly, it could affect your system’s performance.
Inspect the Inverter: Inverters require periodic checks to ensure they’re running efficiently. Many inverters come with built-in diagnostic tools that will alert you to potential issues.
Solar panels typically last for 25-30 years, though they will slowly degrade over time. Batteries typically last anywhere from 5-15 years depending on the type. Regular maintenance can help extend the life of the system and avoid costly replacements.
Building an off-grid solar system is a rewarding project that offers energy independence, sustainability, and long-term savings. By carefully selecting the right components, sizing your system properly, and ensuring a proper installation with a solar flat roof mounting system or solar tile roof mounting system, you can enjoy the benefits of renewable energy. Whether you're looking to power a remote cabin, reduce your carbon footprint, or achieve energy independence, an off-grid solar system provides a reliable, green solution.
Haina offers top-quality solar panels and accessories. Don't hesitate to reach out to us for any inquiries or assistance.
A: An off-grid solar system is a stand-alone system that operates independently from the utility grid. It generates and stores electricity using solar panels, batteries, and an inverter, providing power without relying on external power sources.
A: To size your off-grid solar system, calculate your daily energy consumption in watt-hours, assess your location's solar potential, and choose panels and batteries that meet your needs. Don't forget to select an appropriate inverter size based on peak loads.
A: Yes, you can power your entire home with an off-grid solar system, but the system size depends on your daily energy consumption, available sunlight, and the type of appliances you use. Proper sizing and battery storage are essential for full home energy needs.
A: Solar panels typically last 25-30 years, while batteries can last 5-15 years depending on their type and usage. Regular maintenance and monitoring will help extend the lifespan of your system.
A: The main advantages of an off-grid solar system include energy independence, sustainability, reduced electricity costs, and the ability to provide power in remote locations or during emergencies.
