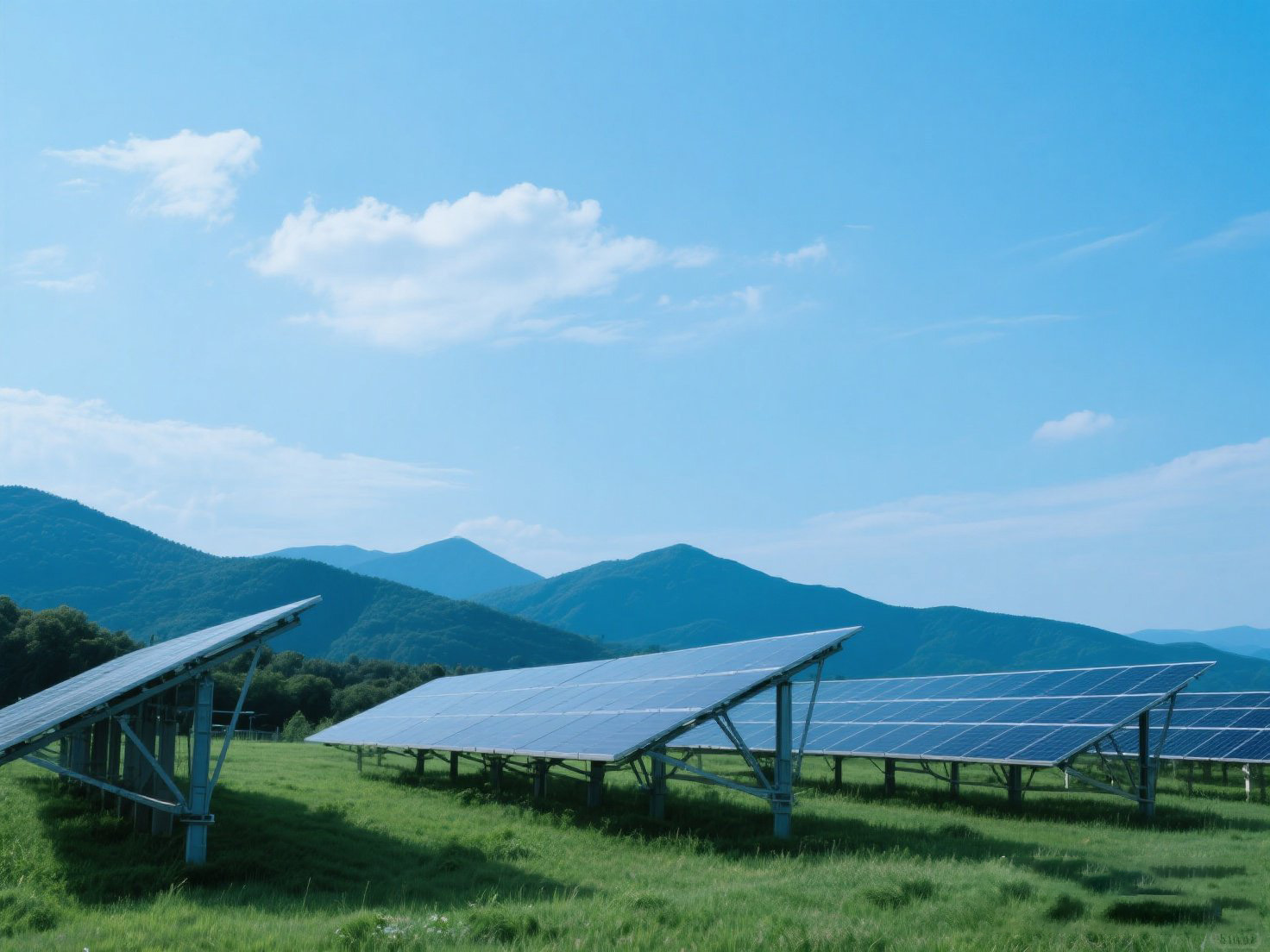

Can One Bolt Fit All for Solar Mounting System?

Bolt Specifications for Different Connection Parts: A Necessity for Structural Integrity

In the realm of structural engineering and construction, the question of whether different connection parts such as foundations, columns, purlins, and component (component clamps) require different bolt specifications is not a matter of simple yes or no, but rather a critical consideration rooted in mechanical engineering principles, load-bearing requirements, and material compatibility. The answer is a resounding "yes" - each connection part has unique functional demands, environmental exposures, and structural roles, necessitating tailored bolt specifications to ensure safety, durability, and optimal performance.

Foundations: The Bedrock of Stability

Foundations serve as the interface between the structure and the ground, bearing the entire vertical load of the structure as well as lateral forces such as wind and seismic loads. Bolts used in foundation connections, often anchor bolts, must withstand high tensile forces and resist pull-out from the concrete substrate. These bolts typically have larger diameters (ranging from M20 to M48 or even larger in heavy industrial structures) and are made from high-strength steel alloys (such as ASTM A325 or A490 in the US, or ISO 8.8, 10.9, 12.9 in metric systems). The thread pitch is usually coarse to enhance grip in the concrete, and they may feature anchor heads,  (hooked ends), or headed plates to increase the resistance to (pull-out). Additionally, corrosion resistance is paramount due to their exposure to moisture in the ground, so galvanized coatings or stainless-steel materials are commonly used.

Columns: Transferring Vertical and Lateral Loads

Columns act as vertical load-bearing members that transfer loads from the superstructure to the foundation. Bolted connections in columns can occur at column bases (connecting to foundations), column splices (connecting different column segments), and connections to beams or braces. At column bases, bolts similar to foundation anchor bolts are used but may have slightly different detailing based on the column section (e.g., H-beam, circular hollow section). For column splices, where two column sections are joined, the bolts must resist both axial forces and bending moments. Here, high-strength friction-grip bolts are often specified to develop sufficient clamping force to prevent slip between the connected flanges or webs. The bolt size depends on the column's cross-sectional area and the expected moment and shear forces, typically ranging from M16 to M30. The arrangement of bolts in the splice plate also matters - a staggered or symmetrical pattern is used to ensure uniform load distribution.

Purlins: Supporting Roof and Wall Cladding

Purlins are horizontal or inclined members that support roof and wall cladding materials, such as metal sheets, tiles, or insulation. The loads on purlins are primarily vertical (dead load from cladding and live loads like snow or wind) and lateral (wind suction or pressure). Bolts connecting purlins to columns or rafters need to be lightweight yet strong enough to resist shear and bending. Common bolt types here are smaller in diameter, typically M12 to M20, and may be made from carbon steel with zinc plating for corrosion resistance in non-aggressive environments. Self-drilling or self-tapping bolts are sometimes used for quick installation in light-gauge steel purlins, as they can penetrate the thin metal sections without pre-drilling. The thread design for these bolts is often optimized for metal-to-metal connections, with sharp threads to ensure a secure grip without excessive material deformation.

Component  (Component Clamps): Securing Solar Panels, Roofing Components, etc.

Component ，which are used to secure solar panels, roofing accessories, or other modular components, operate in a different mechanical environment. These clamps need to hold components firmly in place while allowing for some thermal expansion and contraction, especially in solar panel installations where temperature fluctuations can cause significant movement. Bolts used in component are usually smaller and more specialized, often M8 to M12, and may have unique head shapes (e.g., hexagonal, countersunk) to fit within the clamp's design. Material selection here depends on the environmental exposure - in coastal or corrosive environments, stainless-steel bolts (such as A2 or A4 grade) are preferred to resist saltwater or chemical corrosion. The bolt's tensile strength is important to maintain the clamping force, but excessive stiffness should be avoided to prevent stress concentrations in the clamped components. Thread locking mechanisms, such as nylon inserts or chemical adhesives, are often incorporated to prevent loosening due to vibration or cyclic loading.

Key Factors Driving Different Bolt Specifications

Several overarching factors justify the need for different bolt specifications across connection parts:

Conclusion: The Importance of Tailored Bolt Selection

In conclusion, the use of different bolt specifications for foundations, columns, purlins, and component is not just a best practice but a fundamental requirement for structural integrity. Each connection part operates under unique mechanical, environmental, and geometric conditions, and generic bolt specifications would fail to meet the specific demands of these applications. Engineers and constructors must carefully consider load analyses, material properties, environmental factors, and industry standards when selecting bolts for each component. Neglecting this tailored approach can lead to catastrophic failures, such as foundation bolt pull-out, column splice slip, purlin bolt shear failure, or component clamp loosening - all of which compromise the safety and service life of the structure. By recognizing the distinct needs of each connection part and applying appropriate bolt specifications, we ensure that structures are not only strong and durable but also compliant with the highest engineering standards.
