A Double Column Solar Carport Mounting System is an ideal solution for commercial, residential, and industrial parking areas. Designed with robust steel or aluminum structures, this solar carport solution provides shading, vehicle protection, and clean energy generation simultaneously.
With high durability, anti-corrosion performance, and fast installation design, it is widely used in parking lots, factories, shopping centers, and EV charging stations.

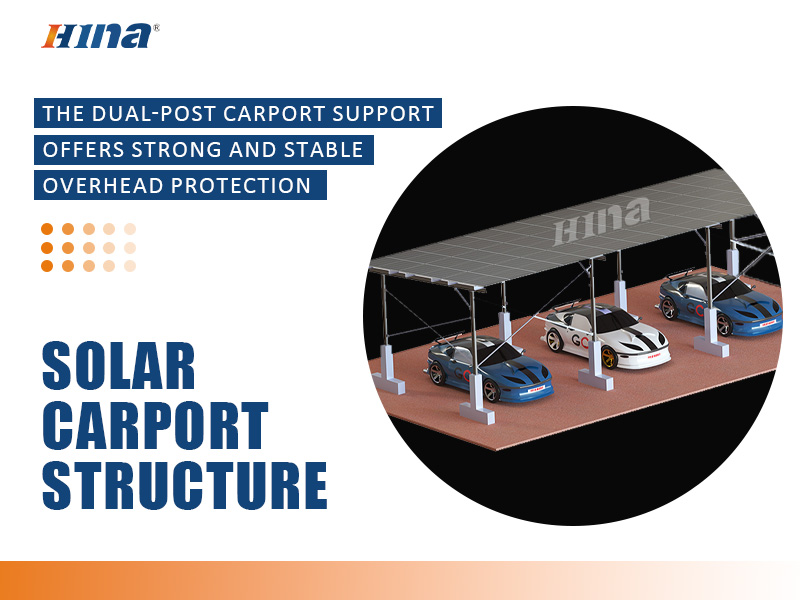

The double column solar carport uses two vertical support posts on each side to carry the main beams and solar panels above. This structure ensures high stability and large-span coverage, making it suitable for heavy snow loads, strong wind zones, and long-term operation.
It integrates:
Steel or aluminum main beams
Columns and base plates
Solar mounting rails
Mid clamps and end clamps
Waterproof design options
Cable management system
This ensures a durable and safe PV carport mounting system that can operate for over 25 years.
Using strong steel columns (Q235/Q355) or aluminum beams, the double-column design provides outstanding mechanical stability.
Suitable for commercial parking lots, business parks, schools, hospitals, and shopping malls.
Pre-assembled components, modular design, and standardized solar accessories reduce labor and installation time.
Hot-dip galvanized steel or aluminum alloy (AL6005-T5) ensures long-term outdoor performance.
Works with standard framed modules (30–40mm), bifacial PV modules, and large-format panels.
| Component | Material Option | Function |
|---|---|---|
| Main Beam | AL6005-T5 / Steel | Supports solar modules and transfers loads |
| Columns (Double Post) | Q235 / Q355 Steel | Primary vertical supports for carport |
| Base Plate | HDG Steel | Fixed to concrete foundation |
| Rails | Aluminum | Holds PV modules securely |
| Mid/End Clamps | Aluminum + SS304 | Module fastening |
| Fasteners | Stainless Steel 304 / 316 | Anti-corrosion bolts, nuts, washers |
| Waterproof System (optional) | EPDM / PC panel | Enhances rainwater protection |
| Item | Specification |
|---|---|
| Structure Type | Double Column Solar Carport |
| Material | Aluminum Alloy / HDG Steel |
| Module Layout | Landscape or Portrait |
| Snow Load | Up to 1.4 kN/m² |
| Wind Speed | 40–60 m/s (customizable) |
| Tilt Angle | 0–15° (adjustable) |
| Foundation Type | Concrete foundation / ground screw |
| Warranty | 10–15 years |
| Design Life | 25+ years |
Large-span shading and energy production suitable for retail centers, malls, airports, and public parking.
Used for factory parking, logistics centers, and warehouse facilities to offset electricity consumption.
Provides shade, protects cars, and helps communities generate renewable energy.
Combines solar power with EV charging infrastructure.
| Advantage | Description |
|---|---|
| High Stability | Double-column structure ensures strong load capacity |
| Flexible Layout | Supports single-row, double-row, or multiple-parking designs |
| Long Lifespan | Anti-corrosion material ensures >25 years of use |
| Energy Savings | Generates renewable power for on-site consumption |
| Low Maintenance | Designed for minimal service requirements |
Foundation construction (concrete base or ground screws)
Column installation with base plates
Fix main beams on double columns
Install rails and clamps
Mount solar modules in landscape or portrait layout
Cable management using trays or conduits
Inspection & commissioning
Professional structural design
Certified materials and high-strength steel
Customized layout for different parking spaces
Short delivery time, easy installation
Compatible with all solar panels and inverters
Complete fastener & accessory supply (bolts, nuts, clamps)
This makes it an ideal solution for EPCs, installers, and solar project developers.
1. What is a double column solar carport?
It is a solar mounting system supported by two columns on each side, providing high stability and large parking coverage.
2. What materials are used for the carport structure?
Common options include hot-dip galvanized steel (Q235/Q355) and aluminum alloy (AL6005-T5).
3. Is the system suitable for strong wind or heavy snow regions?
Yes, the structure can be customized for high wind speeds (up to 60m/s) and heavy snow loads.
4. Can the carport support EV charging stations?
Absolutely. The system is widely used together with EV chargers and energy storage.
5. How long does the solar carport last?
With anti-corrosion materials, it can operate safely for 25+ years.
6. Do you supply complete mounting accessories?
Yes, we provide rails, clamps, bolts, nuts, washers, and waterproof kits for a full solution.
