Amid the global transition to clean energy, solar energy, as one of the most promising renewable energy sources, is experiencing a continuous expansion in its application. Within the entire solar power generation system, ground-mounted solar mounting systems play a crucial role. They not only support the core structure of the solar panel system but also directly impact the efficiency, stability, and lifespan of solar power generation. This article comprehensively analyzes this critical equipment, including its core components, advantages and features, installation process, key considerations for purchasing, and future development trends. This article aims to help industry practitioners and investors gain a deeper understanding of the value of solar mounting systems.
A ground-mounting solar mounting system is a support structure specifically designed for ground-mounted solar panel systems. It allows precise angle adjustment based on the geographical environment, climate conditions, and installation requirements of the solar panels, ensuring that the solar panels receive maximum solar radiation, thereby improving the overall system's efficiency. Compared to rooftop solar mounting systems, ground-mounting solar mounting systems offer significant advantages in terms of installation space, layout flexibility, and ongoing maintenance. Therefore, they are widely used in large-scale photovoltaic power plants, distributed industrial and commercial photovoltaic projects, and family farms.
For a complete solar panel system, the ground-mounting solar mounting system is like the "solid skeleton," supporting the weight of core equipment such as solar panels, inverters, and cables. If the mounting system is unstable or poorly designed, not only can the solar panels' installation angle deviate, affecting power generation efficiency, but it can also cause structural damage in extreme weather conditions (such as strong winds, heavy rain, and snowstorms), leading to safety accidents and significant economic losses. Therefore, selecting a high-quality, high-performance ground-mounting solar mounting system is crucial for ensuring the long-term stable operation of a solar panel system.

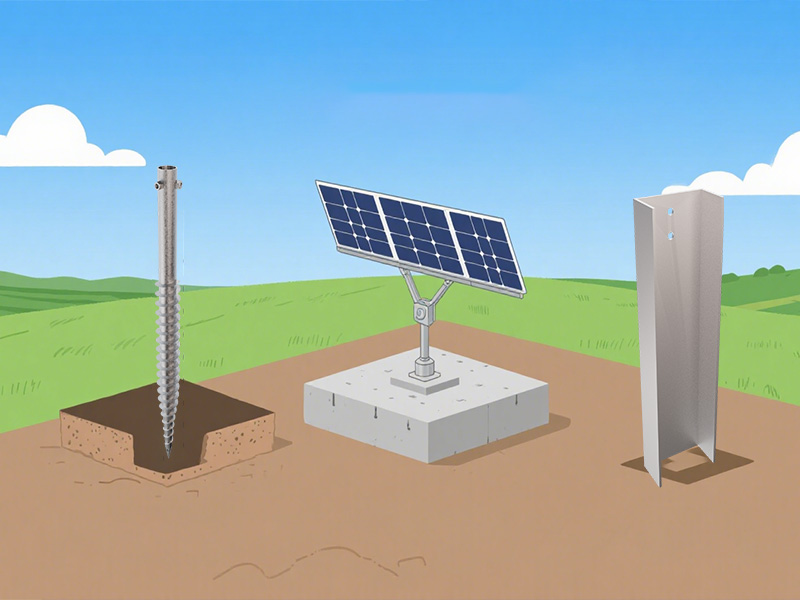

A complete ground-based solar mounting system consists of multiple core components, each of which plays an indispensable role. Ground screws, steel channels, as well as the main support beams, diagonal braces, and connectors, form a stable and reliable support structure.
1. Ground Screws: The "Foundation" of the Mounting System
Ground screws are the key components that connect the ground-based solar mounting system to the ground. Their primary function is to secure the mounting system to the ground, bearing the weight of the entire solar panel system as well as external loads such as wind and snow, ensuring that the mounting system does not tilt or shift. Compared to traditional concrete foundations, ground screws offer advantages such as ease of installation, the elimination of extensive excavation, and minimal environmental impact. During installation, the ground screws are simply driven into the ground using specialized equipment, significantly shortening the construction period and reducing costs. Currently, ground screws on the market are primarily made of high-strength steel and undergo anti-corrosion treatments such as hot-dip galvanizing, effectively resisting soil corrosion and extending their service life. Ground screw specifications, lengths, and thread designs vary depending on geological conditions (such as soil type and bearing capacity). For example, in soft soil, longer ground screws with deeper threads are required to ensure sufficient anchoring force; in hard rock formations, specialized ground screws are required in conjunction with drilling equipment.
2. Steel Channel: The "Load-Bearing Backbone" of the Mounting System
The steel channel is the primary structural component of a ground-based solar mounting system, supporting solar panels and typically serving as the horizontal or vertical beams of the mount. Featuring high strength and rigidity, the steel channel can withstand the weight of the solar panels and external loads, while also accommodating various mounting angles. In terms of material selection, steel channels are typically made of high-quality carbon structural steel such as Q235 or stainless steel. Some products also undergo cold-bend forming to enhance structural stability and compressive strength. Furthermore, to withstand harsh outdoor environments, steel channels are typically treated with anti-corrosion treatments such as hot-dip galvanizing or spray coating to effectively prevent rust and corrosion, thereby extending the lifespan of the mounting system. In actual applications, the specifications and dimensions of the steel channels must be carefully selected based on factors such as the scale of the solar panel system, the size of the solar panels, and the mounting angle to ensure the mounting system's load-bearing capacity meets design requirements.
3. Other Core Components: The "Details That Ensure Stable System Operation"
In addition to ground screws and steel channels, ground-mounted solar mounting systems also include components such as the main support beam, diagonal braces, connectors, and angle adjustment devices. The main beam is the primary structure connecting the steel channels, providing overall load-bearing and stability. Diagonal braces enhance the system's wind resistance and stability, preventing deformation in strong winds. Connectors connect individual components, ensuring the integrity of the entire system. The angle adjustment device allows for flexible adjustment of the solar panel's mounting angle based on seasonal variations in the sun's altitude, further improving power generation efficiency.
Though seemingly small, these components are crucial details that ensure the stable operation of ground-based solar mounting systems. When selecting these components, attention should be paid to their material, machining precision, and corrosion resistance, ensuring that each component works seamlessly with the others to create a reliable solar mounting system.
Compared to other types of solar mounting systems, such as rooftop and wall-mounted systems, ground-mounted solar mounting systems offer numerous significant advantages, making them the preferred support solution for solar panel systems in scenarios such as large-scale photovoltaic power plants and commercial and industrial photovoltaic projects.
1. Flexible Installation Space and High Layout Freedom
Ground-mounted solar mounting systems are not restricted by factors such as building roof area and structural form, allowing for flexible layouts tailored to the specific site conditions. Whether on open wasteland, farmland, hillsides, or rooftops, as long as the ground conditions meet the requirements, ground-mounted solar mounting systems can be installed. Furthermore, ground-mounted solar mounting systems can be configured in a variety of layouts, such as row and matrix, depending on the scale and power generation requirements of the solar panel system, maximizing site space and improving land utilization.
2. Higher Power Generation Efficiency and Easier Angle Adjustment
The power generation efficiency of solar panels is closely related to the amount of solar radiation received, and the solar altitude angle varies with the seasons and time of day. Ground-mounted solar mounting systems are equipped with flexible angle adjustment mechanisms, allowing them to precisely adjust the mounting angle of the solar panels based on latitude, seasonal variations, and the sun's trajectory. This ensures the panels always receive the optimal solar radiation, significantly improving power generation efficiency. In contrast, rooftop solar mounting systems, due to the limitations of the roof structure and load-bearing capacity, often lack the flexibility to adjust the angle, which can also affect power generation efficiency.
3. Easy Maintenance and Low Operating Costs
Ground-mounted solar mounting systems are installed on the ground, keeping the solar panels relatively low. This allows maintenance personnel to easily access the installation for inspection and cleaning. For example, if dust or debris accumulates on the solar panels, affecting power generation efficiency, maintenance personnel can easily clean them. If a system malfunction requires component replacement, they can also quickly disassemble and install them. Furthermore, the relatively simple structure of ground-mounted solar mounting systems reduces failure rates, effectively reducing ongoing operating and maintenance costs and improving the return on investment of the solar panel system. 4. Adaptable to Harsh Environments and Strong Stability
The ground-mounted solar mounting system utilizes high-strength materials (such as steel channels and ground screws) and a rational structural design, effectively withstanding harsh environmental factors such as strong winds, heavy rain, heavy snow, and earthquakes. For example, in areas with strong winds, the mounting system enhances wind resistance by adding diagonal braces and optimizing connector design. In areas with heavy snow, the mounting system's load-bearing structure is specially designed to withstand the pressure of heavy snow. Furthermore, the use of ground screws ensures the mounting system's stability in diverse geological conditions, preventing damage to the system due to foundation settlement and other issues.
The installation of a ground-mounted solar mounting system is a systematic project that requires strict adherence to standardized procedures to ensure the stability of the mounting system and the power generation efficiency of the solar panel system. The following is the main installation process for a ground-mounted solar mounting system:
1. Site Survey and Planning and Design
Before installing a ground-mounted solar mounting system, a detailed site survey is required, including measurements of geological conditions, topography, solar radiation intensity, wind direction and speed, and soil bearing capacity. Based on the survey results, and taking into account the scale of the solar panel system, power generation requirements, and local laws and regulations, a reasonable mounting system installation plan is developed. This plan should clearly define key details such as the specifications and layout of the ground screws, the dimensions and installation angles of the steel channels, and the overall layout of the mounting system to ensure scientific and feasible design.
2. Site Clearance and Leveling
After the site survey and design are completed, the installation site needs to be cleared and leveled. Remove weeds, rocks, debris, and other obstacles from the site, and level any uneven ground to create favorable conditions for subsequent ground screw installation and support erection. For sites with steep slopes, terraced excavation or other methods may be required according to the design to ensure a level installation of the support system.
3. Ground Screw Installation
Ground screw installation is a critical step in the installation of a ground-based solar support system and directly impacts the stability of the system. During installation, specialized ground screw installation equipment (such as a hydraulic pile driver or electric pile driver) is required to drive the ground screws into the ground according to the location and depth specified in the design. During installation, the verticality and depth of the ground screws must be strictly controlled to ensure that the anchoring force of each ground screw meets the design requirements. After installation, the ground screws must be inspected for quality, such as through tensile testing, to ensure they can withstand the weight of the support system and solar panel system.
4. Main Support Structure Erection
Once the ground screws are installed, the main support structure can be erected. First, install the main support beam onto the top connector of the ground screw and secure it with bolts and other fasteners. Next, install the steel channel as a crossbeam and secure it to the main beam. Finally, install auxiliary structures such as diagonal braces and tie rods to enhance the stability of the support system. During the installation process, use tools such as a level and a tape measure to ensure that the main support structure is level and vertical as designed to avoid tilting or deformation.
5. Solar Panel Installation and Fixing
After the main support structure is completed, the solar panels can be installed. Place the solar panels on the steel channel according to the designed arrangement and secure them to the support using specialized clamps, bolts, and other fasteners. During installation, pay attention to the orientation and angle of the panels to ensure they match the design and avoid damaging the panel surface and terminals. After installation, check the installation clearance and flatness of the panels to ensure they meet regulatory requirements.
6. System Wiring and Commissioning
After the solar panels are installed, system wiring is required, including series and parallel connections between the panels and connections to the inverter, distribution box, and other equipment. During the wiring process, strictly follow the electrical wiring diagram to ensure correct and secure connections to avoid potential safety hazards such as short circuits and leakage. After wiring is complete, the entire solar panel system is debugged, including checking system parameters such as voltage, current, and power, and testing the angle adjustment function of the mounting system to ensure stable and efficient system operation.
The installation of a ground-mounted solar mounting system is a systematic project that requires strict adherence to standardized procedures to ensure the stability of the mounting system and the power generation efficiency of the solar panel system. The following is the main installation process for a ground-mounted solar mounting system:
1. Site Survey and Planning and Design
Before installing a ground-mounted solar mounting system, a detailed site survey is required, including measurements of geological conditions, topography, solar radiation intensity, wind direction and speed, and soil bearing capacity. Based on the survey results, and taking into account the scale of the solar panel system, power generation requirements, and local laws and regulations, a reasonable mounting system installation plan is developed. This plan should clearly define key details such as the specifications and layout of the ground screws, the dimensions and installation angles of the steel channels, and the overall layout of the mounting system to ensure scientific and feasible design.
2. Site Clearance and Leveling
After the site survey and design are completed, the installation site needs to be cleared and leveled. Remove weeds, rocks, debris, and other obstacles from the site, and level any uneven ground to create favorable conditions for subsequent ground screw installation and support erection. For sites with steep slopes, terraced excavation or other methods may be required according to the design to ensure a level installation of the support system.
3. Ground Screw Installation
Ground screw installation is a critical step in the installation of a ground-based solar support system and directly impacts the stability of the system. During installation, specialized ground screw installation equipment (such as a hydraulic pile driver or electric pile driver) is required to drive the ground screws into the ground according to the location and depth specified in the design. During installation, the verticality and depth of the ground screws must be strictly controlled to ensure that the anchoring force of each ground screw meets the design requirements. After installation, the ground screws must be inspected for quality, such as through tensile testing, to ensure they can withstand the weight of the support system and solar panel system.
4. Main Support Structure Erection
Once the ground screws are installed, the main support structure can be erected. First, install the main support beam onto the top connector of the ground screw and secure it with bolts and other fasteners. Next, install the steel channel as a crossbeam and secure it to the main beam. Finally, install auxiliary structures such as diagonal braces and tie rods to enhance the stability of the support system. During the installation process, use tools such as a level and a tape measure to ensure that the main support structure is level and vertical as designed to avoid tilting or deformation.
5. Solar Panel Installation and Fixing
After the main support structure is completed, the solar panels can be installed. Place the solar panels on the steel channel according to the designed arrangement and secure them to the support using specialized clamps, bolts, and other fasteners. During installation, pay attention to the orientation and angle of the panels to ensure they match the design and avoid damaging the panel surface and terminals. After installation, check the installation clearance and flatness of the panels to ensure they meet regulatory requirements.
6. System Wiring and Commissioning
After the solar panels are installed, system wiring is required, including series and parallel connections between the panels and connections to the inverter, distribution box, and other equipment. During the wiring process, strictly follow the electrical wiring diagram to ensure correct and secure connections to avoid safety hazards such as short circuits and electrical leakage. After wiring is complete, the entire solar panel system should be debugged, including checking system parameters such as voltage, current, and power, and testing the mounting system's angle adjustment function to ensure stable and efficient system operation.
When selecting a ground-mounting solar mounting system, it is important to consider multiple factors to ensure a high-quality, reliable product that meets the long-term stability requirements of the solar panel system. The following are key considerations for choosing a ground-mounting solar mounting system:
1. Material Quality: Ensure the Strength and Durability of the Mounting System
Material quality is a key factor in determining the lifespan and stability of a ground-mounting solar mounting system. When purchasing, pay special attention to the materials used in core components such as the ground screws, steel channels, and mounting beams. For example, ground screws should be made of high-strength steel and undergo anti-corrosion treatments such as hot-dip galvanizing to ensure excellent corrosion resistance and anchoring strength. Steel channels should be made of high-quality carbon structural steel or stainless steel, which offers high strength and rigidity and can withstand heavy loads. It's also important to review the material's test reports and certifications to ensure compliance with relevant national standards and industry specifications.
2. Corrosion Resistance: Key to Harsh Outdoor Environments
Ground-mounted solar mounting systems are exposed to the outdoors for extended periods and are susceptible to corrosion from factors such as rain, moisture, and UV rays. This can cause rust and corrosion on the steel, impacting the system's stability and service life. Therefore, corrosion resistance is a crucial consideration when selecting a ground-mounted solar mounting system. When purchasing, it's important to understand the anti-corrosion treatment methods used on each mounting system component, such as hot-dip galvanizing, spray coating, or electrophoresis, and to examine parameters such as the thickness and adhesion of the anti-corrosion coating. Generally speaking, hot-dip galvanizing offers the best corrosion protection. The thickness of the anti-corrosion coating should meet relevant standards to ensure the system's outdoor service life of 15 years or more. 3. Structural Design: Balancing Stability and Flexibility
The structural design of a mounting system directly impacts its stability, load-bearing capacity, and angle adjustment flexibility. When purchasing, consider whether the mounting system's structural layout is reasonable and whether sufficient supporting structures such as diagonal braces and tie rods are installed to enhance the system's wind and snow resistance. Also, consider whether the angle adjustment mechanism is flexible and convenient, allowing for precise adjustment based on seasonal variations in the sun's altitude. Furthermore, a modular design is crucial. Modularity facilitates installation and disassembly, improving construction efficiency and reducing ongoing maintenance costs.
4. Manufacturer's Reputation and After-Sales Service: Ensuring Product Quality and After-Sales Support
Choosing a manufacturer with strong capabilities and a good reputation is crucial for ensuring the quality of your ground-mounted solar mounting system. When purchasing, consider the manufacturer's production scale, technical expertise, R&D capabilities, and production equipment, as well as whether they possess relevant production qualifications and certifications (such as ISO9001 quality management system certification and TÜV certification). Also, consider the manufacturer's after-sales service system to determine whether they provide timely technical support, installation guidance, and repair services. High-quality after-sales service can promptly resolve any issues that arise during later use, ensuring the normal operation of the solar panel system.
5. Cost Budget: Balancing Cost-Effectiveness with Long-Term Benefits
When selecting a ground-mount solar mounting system, cost budget is also a factor to consider. Mounting systems made of different materials, with different specifications, and from different manufacturers can vary significantly in price, so it's important to select the most cost-effective product based on the project's actual needs and budget. However, it's important to note that you shouldn't simply pursue low price while ignoring product quality. A low-quality mounting system may malfunction later in life, leading to higher maintenance costs and financial losses. Therefore, when purchasing, consider a comprehensive range of factors, including product quality, performance, lifespan, and price, to balance cost-effectiveness with long-term benefits.
With the continuous development of the solar industry and technological innovation, ground-based solar mounting systems are also undergoing continuous upgrades and iterations, moving towards greater efficiency, intelligence, and environmental friendliness. The following are future development trends for ground-based solar mounting systems:
1. Intelligent Upgrade: Automatic Angle Adjustment and Remote Monitoring
With the integration of technologies such as the Internet of Things, big data, and artificial intelligence, ground-based solar mounting systems will gradually achieve intelligent upgrades. Future mounting systems will be equipped with intelligent sensors and automatic angle adjustment devices that can monitor environmental parameters such as solar radiation intensity, wind direction and speed, and temperature in real time. These devices will automatically adjust the mounting angle of solar panels based on these parameters, ensuring optimal solar radiation reception and maximizing power generation efficiency. Furthermore, intelligent mounting systems can be connected to remote monitoring platforms through IoT technology, enabling real-time monitoring of the system's operating status, fault warnings, and remote maintenance, reducing labor costs and improving operational efficiency.
2. Lightweight and High-Strength: Optimizing Materials and Structural Design
To reduce the weight of mounting systems and improve installation ease while maintaining strength and stability, future ground-mounted solar mounting systems will be developed towards lightweight and high-strength designs. In terms of materials, lightweight, high-strength materials such as high-strength aluminum alloys and carbon fiber composites will be increasingly used to replace traditional steel, reducing the weight of the mounting system. In terms of structural design, topology optimization and finite element analysis will be used to optimize the mounting structure, reduce material usage, and improve the load-bearing capacity and stability of the structure. Lightweight mounting systems not only reduce transportation costs and construction difficulties, but also reduce the anchoring force requirements for ground screws, expanding their application in diverse geological conditions.
3. Environmental Protection and Sustainable Development: Utilizing Green Materials and Circular Design
With the global advocacy for green environmental protection and sustainable development, ground-mounted solar mounting systems will also place greater emphasis on environmental performance. In the future, the production of mounting systems will increasingly incorporate green and environmentally friendly materials, such as recyclable steel and chromium-free anti-corrosion coatings, to reduce environmental pollution. Circular design concepts will be adopted to ensure that mounting system components can be easily disassembled, recycled, and reused at the end of their service life, minimizing resource waste. Furthermore, ground-mounted solar mounting systems can be integrated with ecological agriculture and animal husbandry to achieve a "photovoltaic +" model, such as photovoltaic greenhouses and photovoltaic pastures. This allows for power generation without impacting agricultural production, improving overall land utilization efficiency and promoting sustainable ecological development.
4. Standardization and Modularization: Improving Product Compatibility and Construction Efficiency
To meet the needs of the solar industry's scaled and intensive development, ground-mounted solar mounting systems will develop in a standardized and modularized manner. In the future, the industry will develop more unified product standards and installation specifications for mounting systems to ensure compatibility among mounting components from different manufacturers, facilitating user combination and replacement based on specific needs. In terms of production, a modular approach will be adopted, breaking down the mounting system into multiple standardized modules, such as ground screw modules, steel channel modules, and angle adjustment modules. These modules can be prefabricated in the factory and then transported to the site for rapid assembly, significantly shortening the construction cycle, improving efficiency, and reducing costs.
As the core support structure of a solar panel system, the quality and performance of the ground-mount solar mounting system are directly related to the efficiency, stability, and lifespan of the solar power generation system. From the "rooting" of the ground screws to the "load-bearing" of the steel channels, from the standardized installation process to the comprehensive consideration of key purchasing factors, to the future technological innovation and development, every step highlights the importance of ground-mount solar mounting systems.
