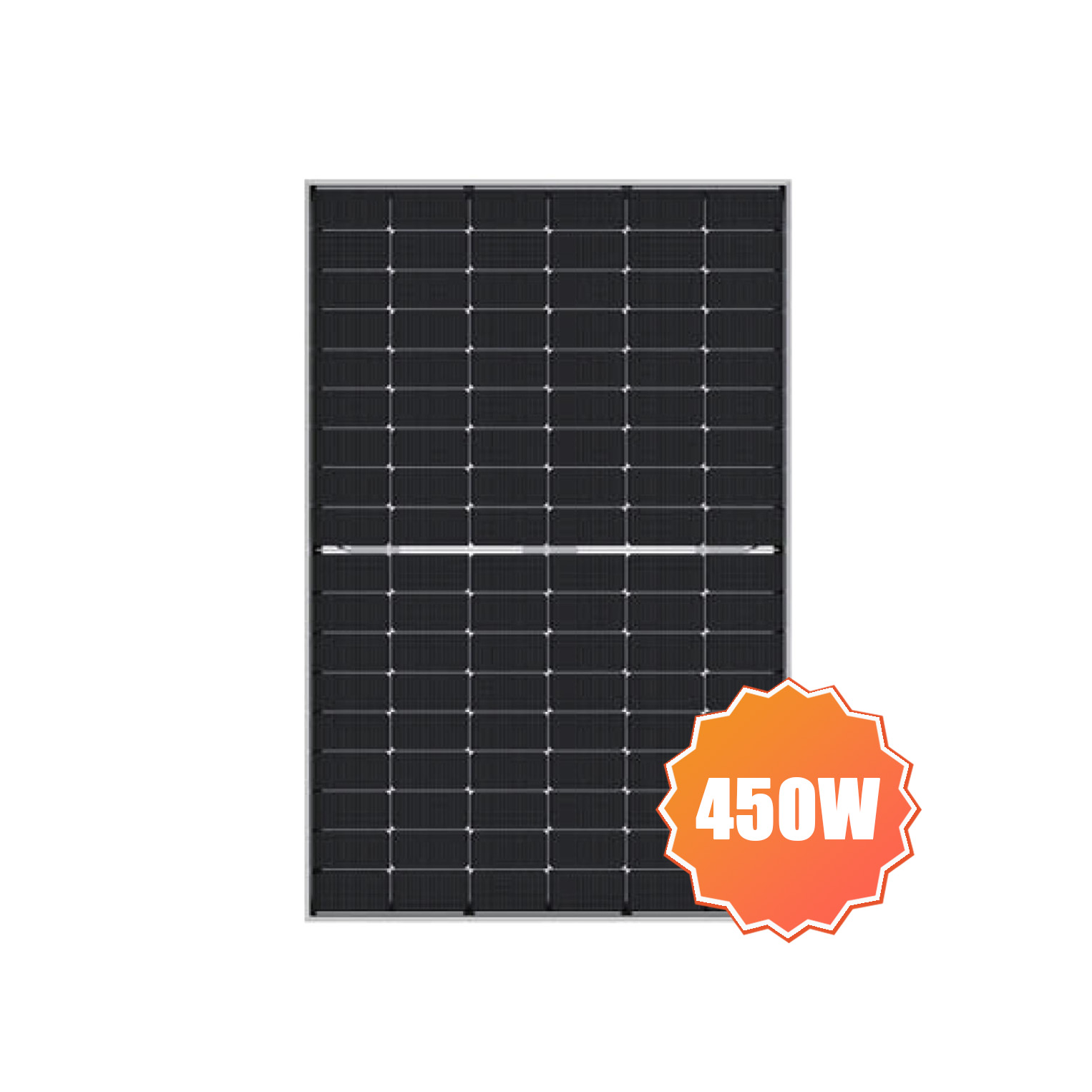

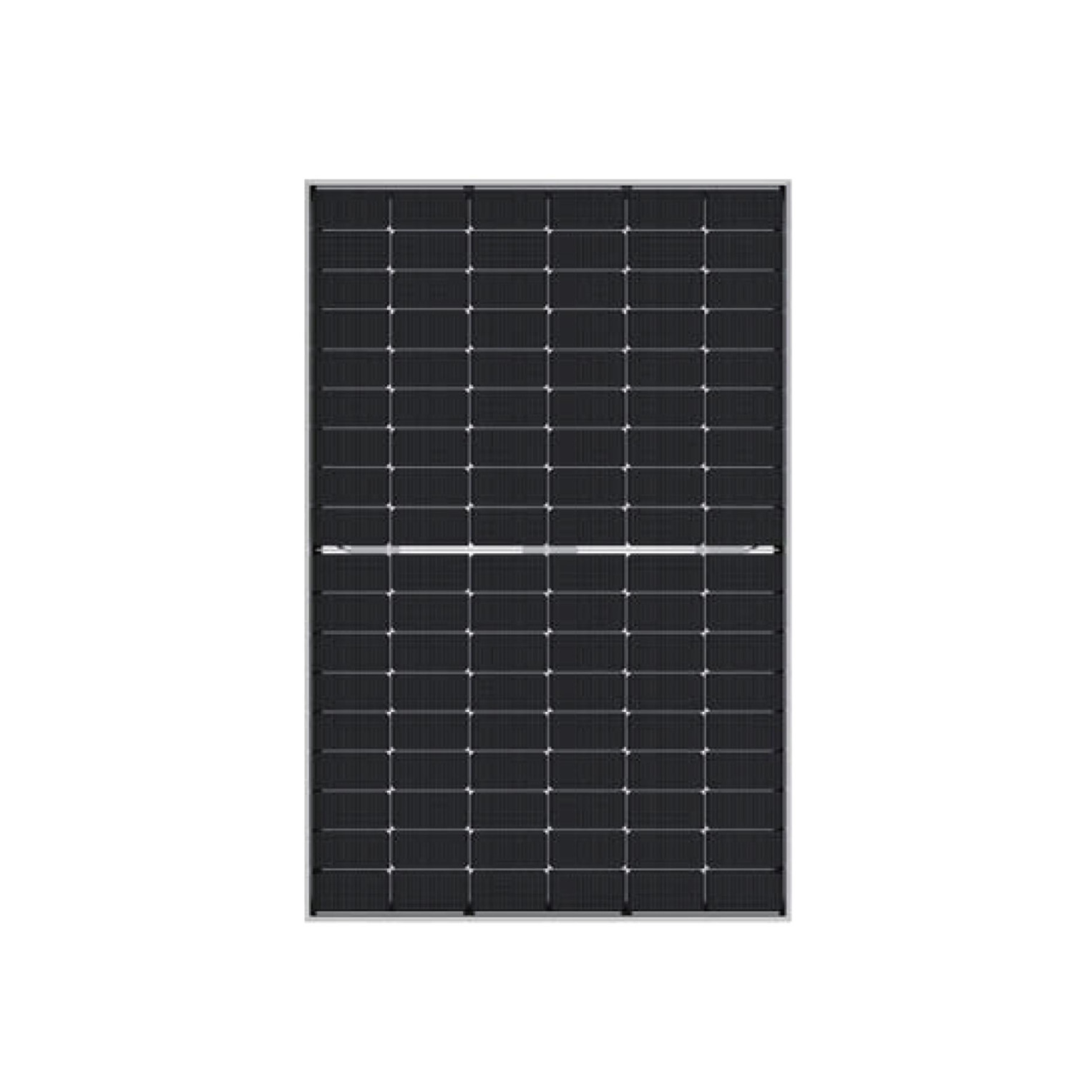

High-Efficiency 450W Solar Panel PV Module for Solar Mounting System
Our 450W Monocrystalline Solar Panel is engineered for high performance and long-term reliability. Featuring advanced solar cell technology, this module delivers an impressive 2284.8Wh average daily generation (based on 6 hours of sunlight), making it the ideal choice for residential rooftops, commercial carports, and off-grid solar systems.
Key Features:
Superior Efficiency: Optimized for maximum power output even in low-light conditions.
Robust Construction: Built with an Anodized Aluminum Alloy frame to withstand harsh environmental conditions and heavy snow/wind loads.
Wide Temperature Range: Reliable performance in extreme climates, ranging from -40°C to +85°C.
Industry Standard Safety: Rated for 1500V DC (IEC) systems, ensuring compatibility with modern high-voltage inverters to reduce system costs.

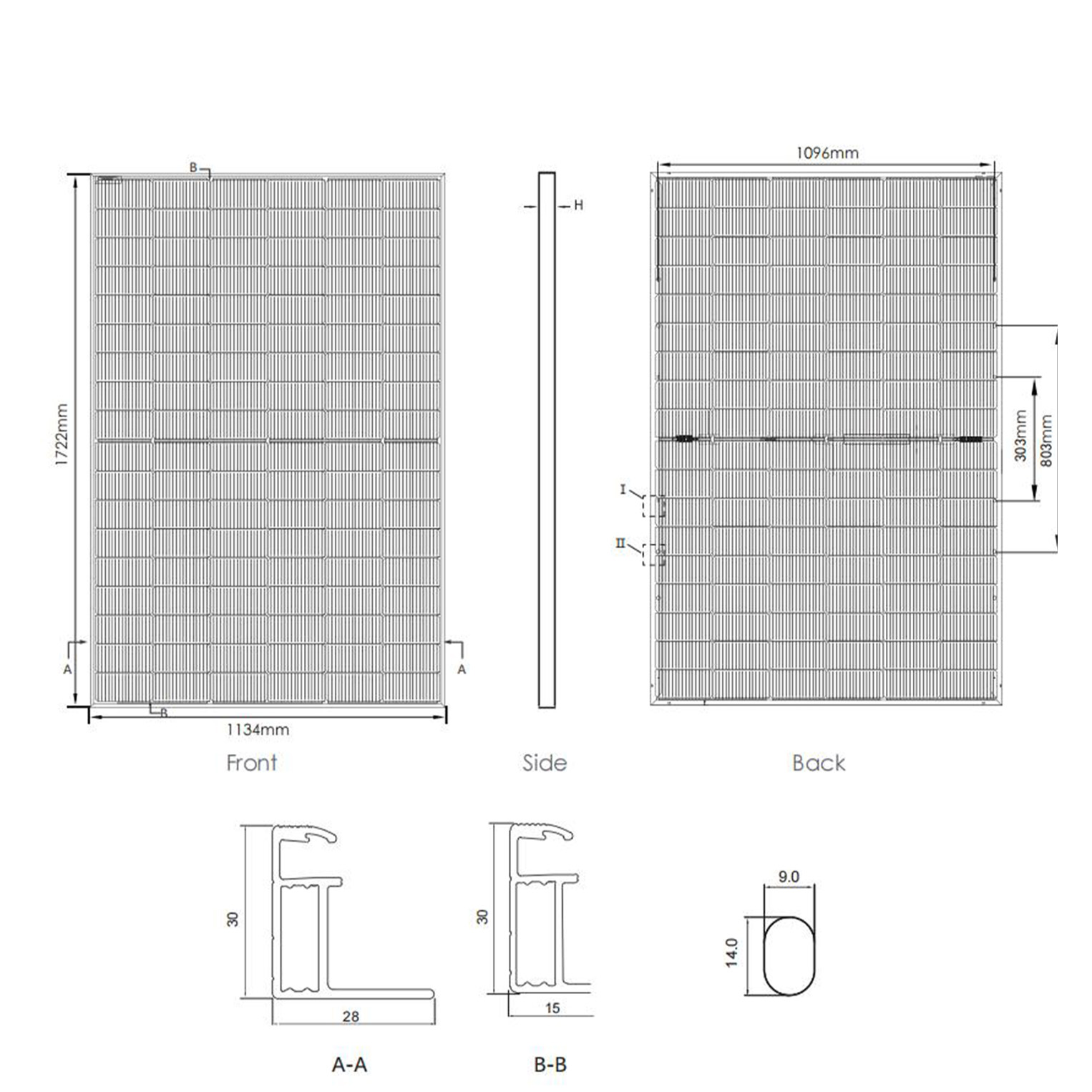

Durable Design: Precision-engineered dimensions (1722113430mm) for easy installation and space-saving efficiency.
Item | Specification |
|---|---|
Rated Power Output | 450W |
Avg. Daily Generation (6h) | 2284.8Wh |
Maximum Power Voltage (Vmpp) | 33.1V |
Maximum Power Current (Impp) | 13.6A |
Open Circuit Voltage (Voc) | 39V |
Short Circuit Current (Isc) | 14.39A |
Module Weight | 24.5 KG |
Dimensions | 1722 1134 30 mm |
Maximum System Voltage | 1500V DC (IEC) |
Operating Temperature | -40°C ~ +85°C |
Frame Material | Anodized Aluminum Alloy |
Packing Configuration | 36pcs/pallet; 936pcs/40'HQ Container |
