Solar Canopy Supports: A Comprehensive Guide to Solar Knowledge

Solar Canopy Supports: A Comprehensive Guide to Photovoltaic Knowledge

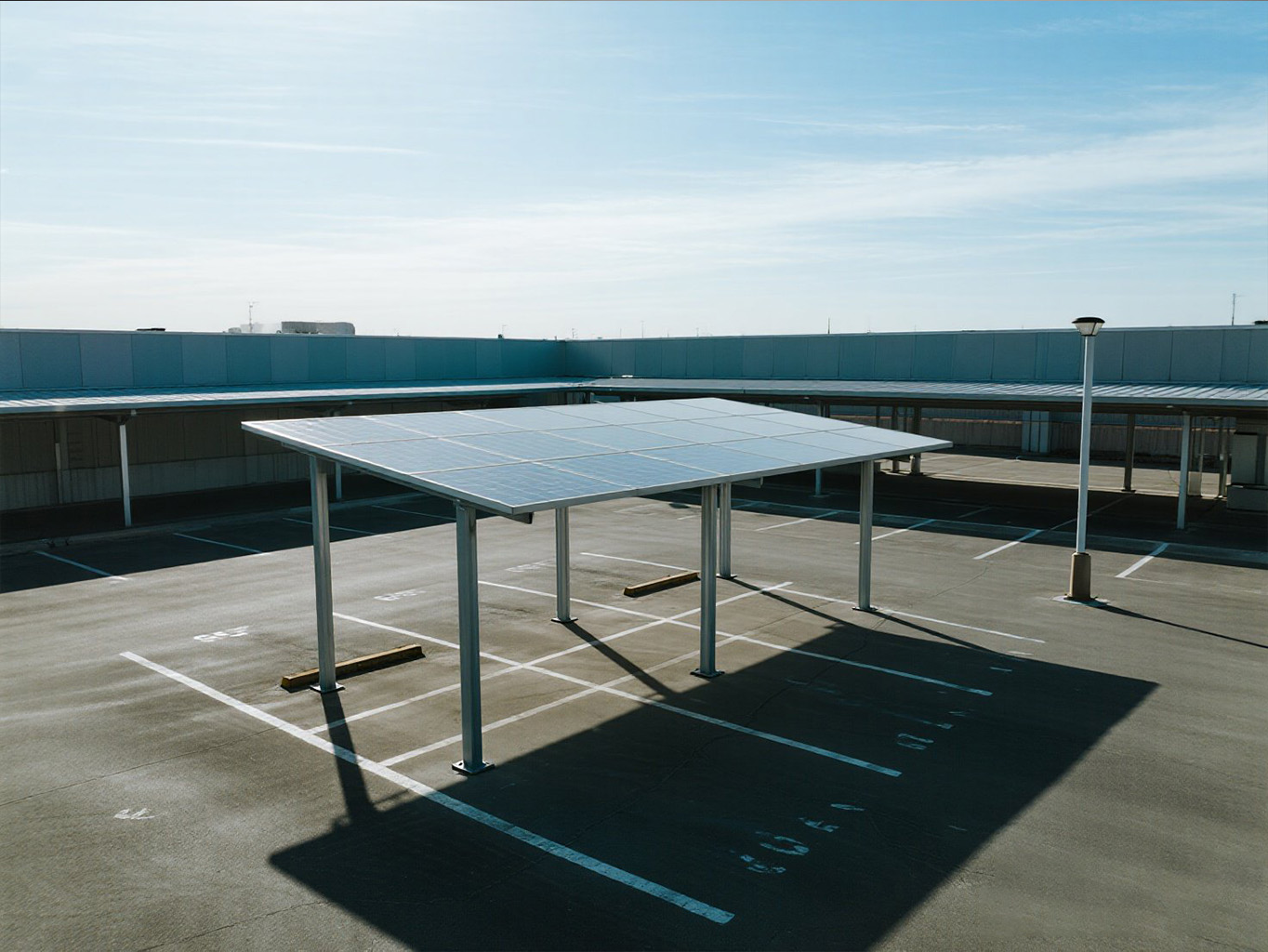

With the increasing global demand for renewable energy, solar power, as a clean and renewable energy source, has garnered significant attention. Solar canopy supports, which integrate photovoltaic (PV) systems with carports, are an innovative application that not only provides parking and shade but also converts solar energy into electricity, offering a users green energy solution. This article delves into the photovoltaic knowledge related to solar canopy supports, covering their working principles, structural components, advantages, and key points for installation and maintenance.

I. Working Principle of Solar Canopy Supports

The core of a solar canopy is the photovoltaic (PV) module, which operates based on the "photovoltaic effect." When sunlight strikes the PV module, photons interact with the semiconductor material in the solar cells, generating electron-hole pairs. Under the influence of the internal electric field of the cell, electrons and holes move in opposite directions, creating an electric current. This current is collected through conductors, then passes through an inverter to convert direct current (DC) into alternating current (AC), which can be used to power electrical devices or fed into the grid.

II. Structural Components of Solar Canopy Supports

A solar canopy support system mainly consists of the following parts:
  1. Support Structure: This includes vertical supports, diagonal beams connecting the supports, purlins attached to the beams for holding the PV module arrays, and fasteners for securing the module arrays. The support structure's role is to firmly hold and support the PV modules, ensuring their safe and stable operation under various weather conditions.
  2. PV Module Arrays: Composed of multiple solar cells, these arrays are responsible for converting solar energy into electrical energy.
  3. Inverter: This device converts the direct current generated by the PV modules into alternating current for use in homes or commercial settings.
  4. Junction Box: It consolidates the electrical energy generated by multiple PV modules and transmits it to the inverter.
  5. Lightning Protection and Grounding System: This ensures the safety of the canopy during thunderstorms.

III. Advantages of Solar Canopy Supports

  1. Energy Conservation and Environmental Protection: By generating electricity from solar power, solar canopies produce no greenhouse gas emissions and have no negative impact on the environment.
  2. Cost Savings: The electricity generated by the canopy be can used first for internal consumption, reducing reliance on grid power and resulting in significant long-term savings on electricity bills. Additionally, excess electricity can be fed into the grid, generating extra income for the owner.
  3. Vehicle Protection: The canopy provides shade and shelter from rain, and the PV panels can effectively block ultraviolet rays, reducing vehicle aging and damage caused by prolonged exposure to sunlight.
  4. Flexible Installation: Solar canopy supports are not limited by geographical location and are easy to install. They highly are versatile and can be designed in various configurations, such as single-column single-direction, double-column single-direction, and single-column double-direction, depending on the site conditions.
  5. High Space Utilization: Solar canopies can be built in factory parks, commercial areas, hospitals, schools, and other places. They solve the problem of high temperatures inside vehicles in open-air parking lots during summer and make full use of existing space without requiring additional land.

IV. Installation and Maintenance of Solar Canopy Supports

(i) Installation Process
  1. Pre-Installation Planning: Measure the area and orientation of the canopy site and assess the sunlight conditions to ensure that the canopy is positioned to receive maximum sunlight exposure. Also, consider the surrounding environment to avoid obstructions that may affect power generation efficiency.
  2. Equipment Selection: Choose appropriate PV panels, inverters, and supports based on budget and performance requirements.
  3. Construction and Installation: Install the supports and PV modules according to the design specifications and complete the electrical connections. After installation, conduct a comprehensive system test to ensure normal operation.
(ii) Maintenance Tips
  1. Regular Cleaning: Periodically clean the surface of the PV panels to remove dust, leaves, bird droppings, and other debris. Keeping the panels clean ensures that sunlight can fully reach the PV panels, thereby improving power generation efficiency.
  2. Equipment Inspection: Regularly check for loose or deformed supports, damaged or cracked PV panels, and aging or short-circuited electrical wiring.
  3. Data Monitoring: Utilize monitoring systems to track real-time data on the PV system's power generation and efficiency. Analyze the data to promptly identify potential system faults.

V. Future Development Trends

As a new type of distributed photovoltaic power generation system, solar canopies have a broad development prospect. With continuous technological advancements and cost reductions, solar canopies will become more widespread. In future the, solar canopies can also be integrated with energy storage systems and intelligent management systems to achieve more efficient and intelligent energy utilization.
In summary, solar canopy supports are not only an energy-saving and environmentally friendly facility but also offer economic benefits to users. They are easy to install and maintain and are suitable for a variety of locations. As people's focus on and demand for renewable energy increases, solar canopy supports are destined to become a beautiful and functional feature in both urban and rural landscapes.
