HNF-080S
HINA-Micro001
| Quantity: | |
|---|---|

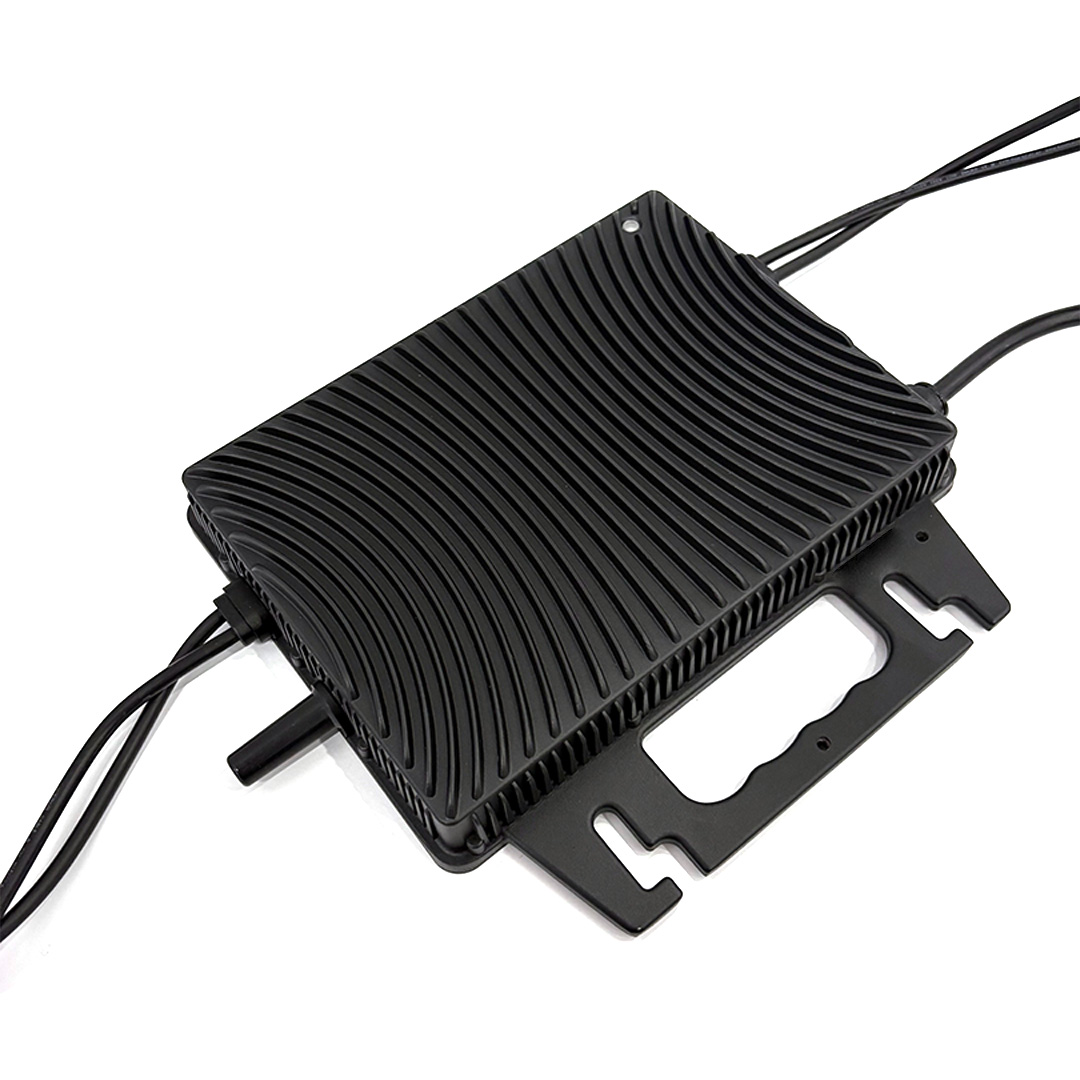

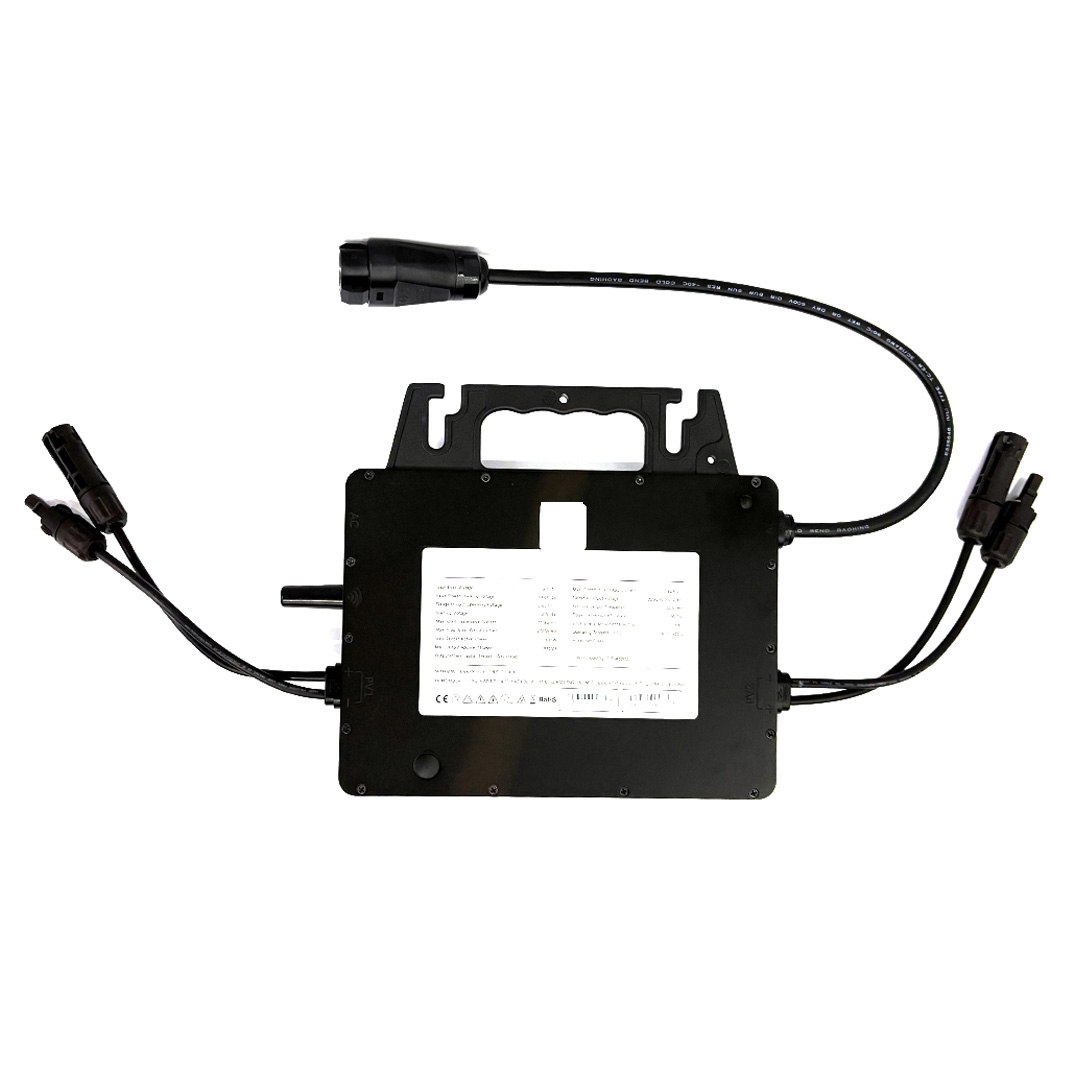

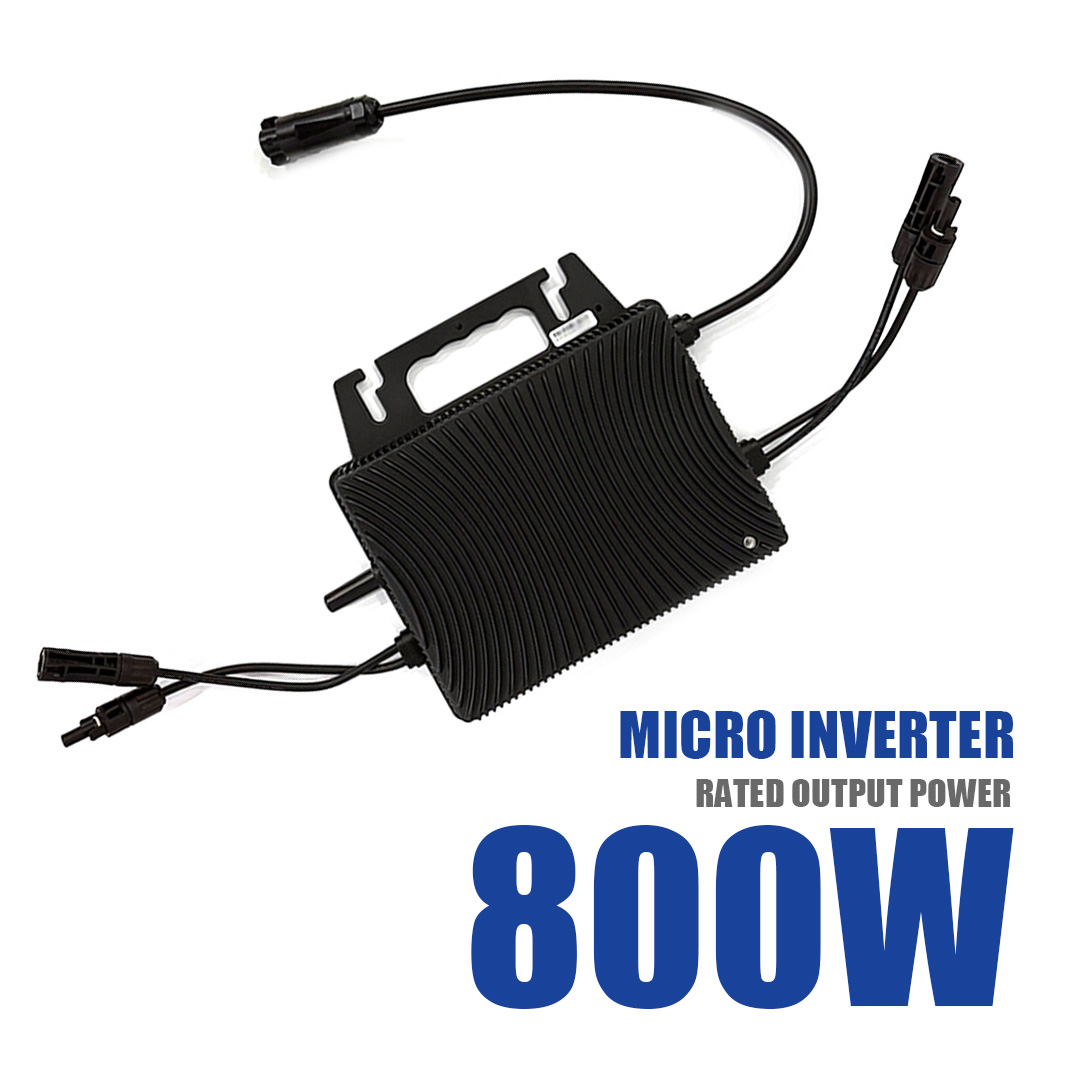

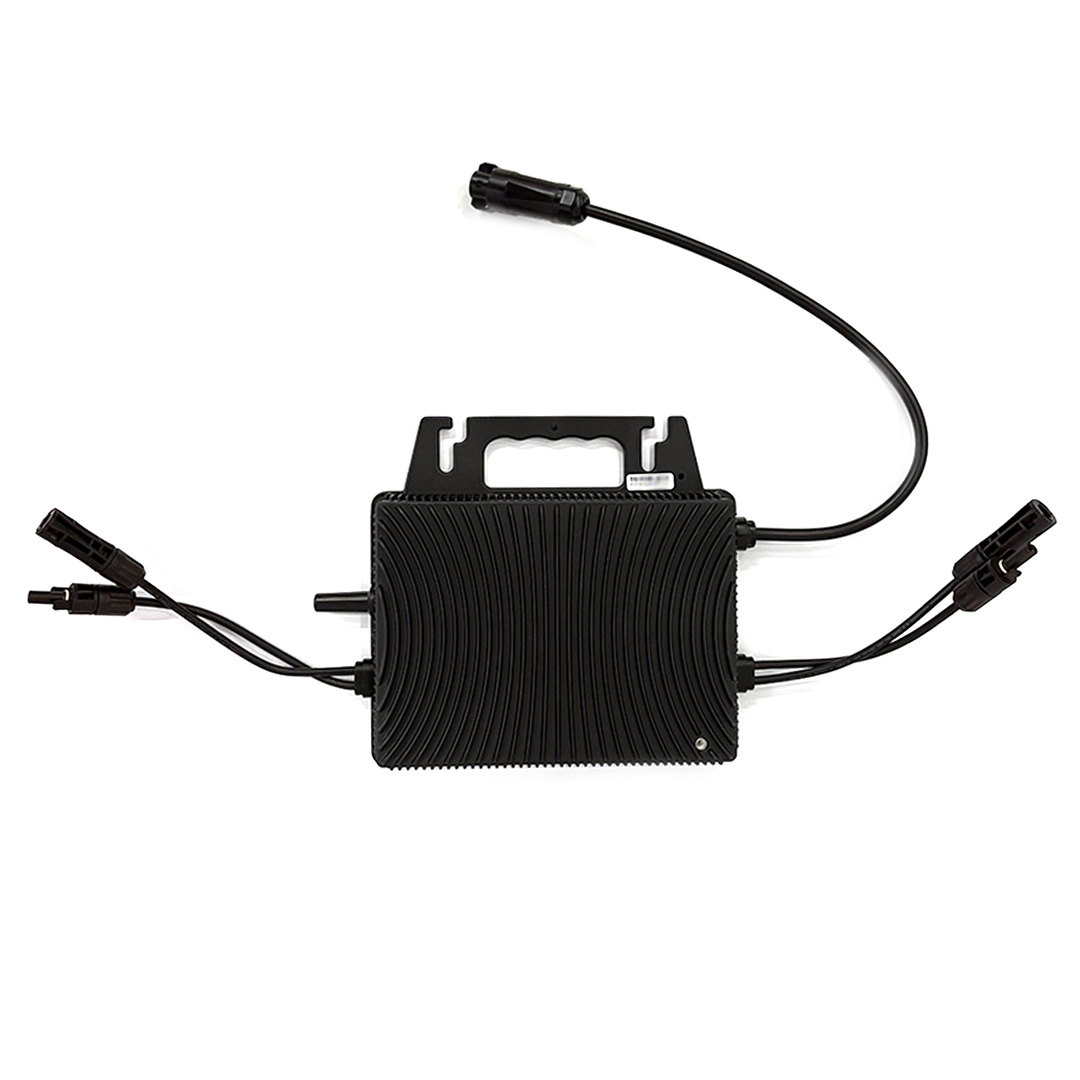

A microinverter is a compact inverter installed on each individual solar panel, enabling panel-level DC to AC conversion and power optimization. It improves energy harvest by reducing losses caused by shading, dust, or module mismatch within the solar PV system. Microinverters enhance system safety, offer advanced monitoring capabilities, and are widely applied in residential solar power systems that require higher flexibility and performance.
| Product Model | HNF-080S | HNF-050S | HNF-200S |
| Input Data (DC) | |||
| Recommended PV Module Power (W) | (320~540+)*2 | 400~670+ | (400~670+）*4 |
| MPPT Votage Range (V) | 16 ~ 60 | ||
| Maximum Input Voltage (V) | 60.00 | ||
| Startup Voltage (V) | 22 | ||
| Maximum Input Current (A) | 16*2 | 16 | 16*4 |
| Maximum input short circuit current (ISC) (A) | 25 | ||
| Number of MPPTs | 2 | 1 | 4 |
| Output Data (AC) | |||
| Rated Output Power (W) | 800 | 500 | 2000 |
| Rated Output Current (A) | 3.48 | 2.17 | 8.7 |
| Nominal Output Voltage (V) | 220 / 230 / 240 | ||
| Nominal Output Frequency (Hz) | 50 / 60 | ||
| Power Factor (Default/Adjustable) | 0.99/0.90 leading...0.90 lagging | ||
| Total Harmonic Distortion (THDi) | ＜3% | ||
| Maximum units per branch | 6 | 16 | 2 |
| Efficiency | |||
| Peak Efficiency | 96.70% | ||
| Dimensions (W*H*D mm) | 235*223*35 | 192*208*35 | 340*286*40.5 |
| Weight (kg) | 3.30 | 2.1 | 6 |
