HINA
HINA-METAL001
| Quantity: | |
|---|---|

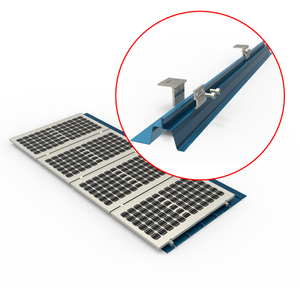

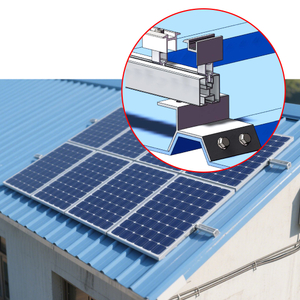

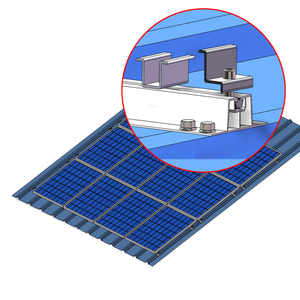

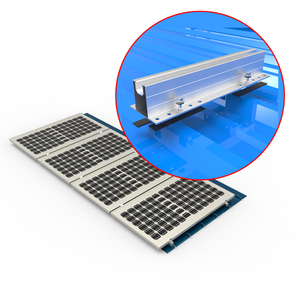

Solar Panel Mounts for Metal Roof Solar Mounting System
Solar roof mounting system is a bracket structure for rooftop installation of solar panels. It consists of a bracket frame, a support rod, and fixing bolts. This bracket system is usually made of metal material, which has good stability and corrosion resistance. By installing a solar roof support system, solar panels can be installed on the roof to make full use of the space on the roof to generate electricity. The advantages of such systems include simple installation, low carbon protection, adjustable inclination to maximize solar energy absorption efficiency, and protection of roof structures. Solar roof support systems can be applied to various types of roofs, including flat roofs and pitched roofs.

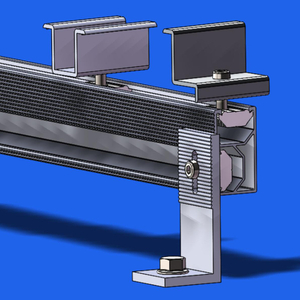

Metal roof mounting system is a solar photovoltaic mounting system for metal roofs, which is suitable for various types of tin roof structures. The system is composed of solar hook, solar fastener, aluminum rails, galvanized C steel channel, etc., which has the characteristics of simple structure, convenient installation and strong bearing capacity.
The main advantages of the system are: 1) stable structure and able to withstand large loads; 2) Easy installation, no need for hoisting equipment; 3) Reusable, save costs; 4) Suitable for various types of metal roof structures.
Technical Parameters | |||
System Name | Solar Metal Roof Mounting System | Design Standard | AS/NZS 1170、DIN 1055、JIS C8955：2017 |
Installation Site | Pitched Roof | International Building Code：IBC 2009 | |
Tilt Angle | 5-45° | California Building Code：CBC 2010 | |
Wind Load | 60m/s | Hook Material | SUS304 |
Snow Load | 2.0KN/㎡ | Fastener | SUS304 |
Applicable Solar Module | Framed or Frameless | Small Components | AL6005-T5(Anodized) |
Panel Layout | Portrait or Landscape | Warranty | 10-year warranty |
