Solutions and Technical Key Points for Installing Ground Mounts on Sloped Terrains

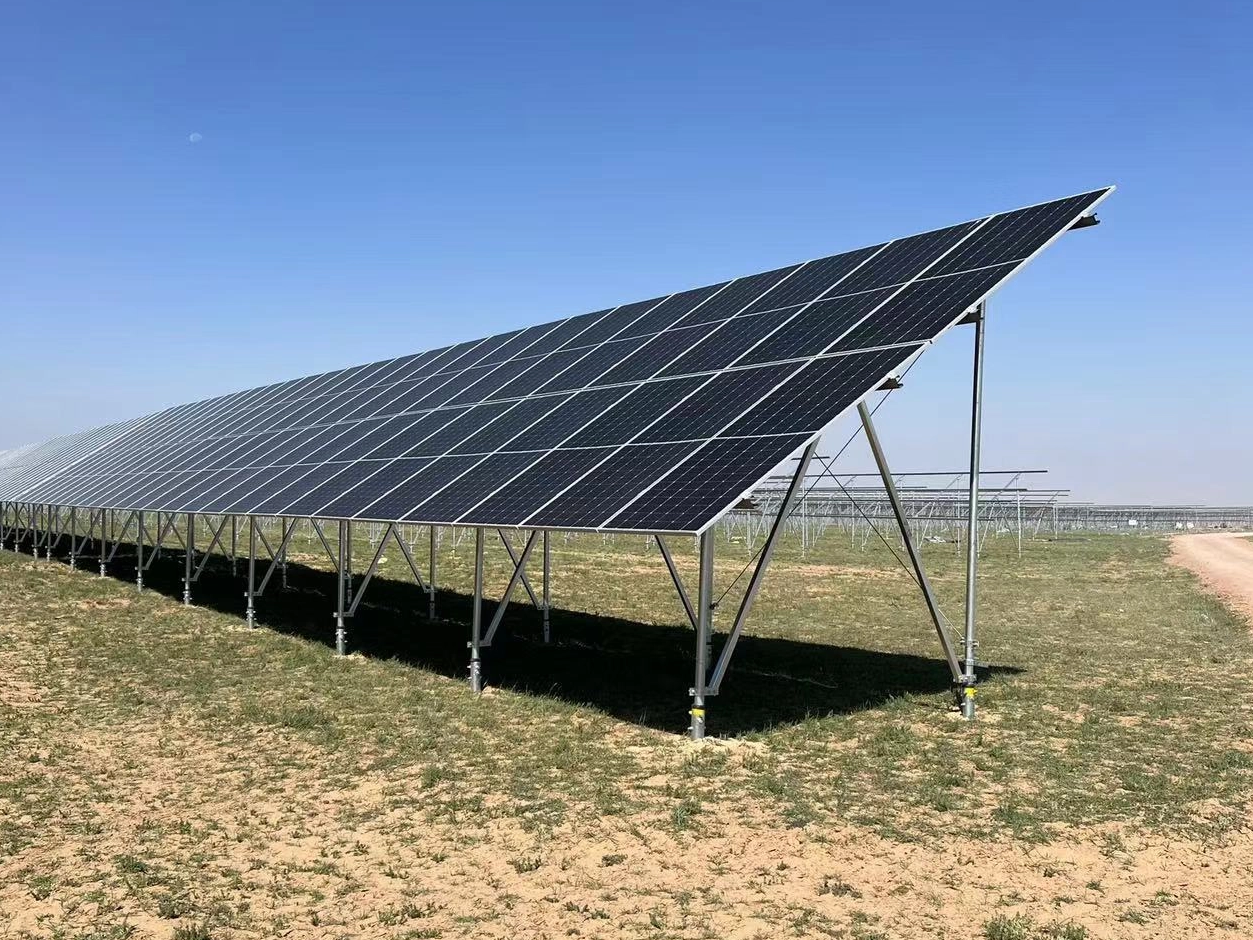

Installing ground mounts on sloped terrains presents unique challenges due to the uneven and inclined surfaces. However, with the right solutions and adherence to key technical points, stable and efficient installations can be achieved. This article focuses on two main approaches: stepped arrangement and special foundations, exploring their solutions and technical aspects in detail.
Stepped Arrangement
Solutions
The stepped arrangement involves constructing the ground mount system in a series of horizontal “steps” that follow the contour of the slope. This method helps to level out the installation area while minimizing the amount of earthwork required.
First, detailed topographical surveys are conducted to map the slope accurately. Based on the survey data, the height and width of each step are carefully calculated. Each step is designed to be large enough to accommodate the ground mount components, such as the support structures and the equipment they hold. For example, in solar panel ground mount installations, the steps are sized to ensure proper spacing and alignment of the panels for optimal sunlight exposure.
During construction, retaining walls or terracing techniques are often employed to create and stabilize the steps. Retaining walls can be made of various materials, including concrete, masonry, or prefabricated modular units. They are built perpendicular to the slope to hold back the soil and prevent erosion, ensuring the stability of each step. Terraces, on the other hand, are formed by cutting into the slope and filling the lower areas, creating flat platforms that are connected by slopes or steps.
Technical Key Points
Accurate Surveying and Design: High - precision topographical surveys are crucial. The use of advanced surveying tools like total stations or LiDAR scanners ensures accurate data collection. The design of the stepped arrangement should consider factors such as the maximum slope angle, soil type, and the load - bearing capacity of the ground. A miscalculation in any of these aspects can lead to instability of the ground mount system.
Stability of Retaining Structures: The retaining walls or terracing structures must be designed to withstand the lateral pressure from the soil. This requires proper engineering calculations based on soil mechanics principles. Reinforcement, such as steel bars in concrete retaining walls, may be necessary to enhance their strength. Regular inspections during and after construction are also essential to detect any signs of movement or damage to the retaining structures.
Alignment and Leveling: Each step must be precisely leveled to ensure that the ground mount components are installed correctly. Even a small deviation in the level can affect the performance of the installed equipment. Laser levels and other leveling tools are used to achieve the required precision. Additionally, the alignment of the steps along the slope should be consistent to maintain the overall structural integrity of the system.
Special Foundations
Solutions
Special foundations are often required on sloped terrains to provide a stable base for the ground mount system, especially when the soil conditions are poor or the slope is too steep for a conventional installation.
One common type of special foundation is the helical pile foundation. Helical piles are long, screw - like shafts that are screwed into the ground. They can be installed at various angles to match the slope, providing a strong and reliable support. Another option is the micropile foundation. Micropiles are small - diameter drilled piles that are grouted into the ground. They can penetrate through weak soil layers and reach more stable strata, offering excellent load - bearing capacity.
For very steep slopes or areas with unstable soil, caisson foundations may be employed. Caissons are large, cylindrical structures that are sunk into the ground. They can be filled with concrete or other materials to create a solid foundation for the ground mount system.
Technical Key Points
Soil Testing and Analysis: Before selecting a special foundation type, comprehensive soil testing is essential. Tests such as soil density, shear strength, and moisture content are conducted to determine the soil's properties. This information is used to calculate the appropriate foundation design, including the depth, diameter, and number of foundation elements required to support the load of the ground mount system.
Installation Precision: The installation of special foundations requires high precision. For example, when installing helical piles, the torque applied during installation must be carefully monitored to ensure that the piles are driven to the correct depth and have sufficient holding power. In the case of micropiles, the drilling process needs to be precisely controlled to ensure that the piles are vertical (or at the designed angle) and reach the desired strata.
Load - Transfer Mechanisms: Understanding the load - transfer mechanisms of special foundations is crucial. Engineers need to ensure that the loads from the ground mount system are effectively transferred to the soil or rock layers through the foundation. This involves analyzing the interaction between the foundation elements and the surrounding soil, and making sure that the foundation can withstand various types of loads, including vertical, horizontal, and overturning forces.
In conclusion, installing ground mounts on sloped terrains requires a combination of appropriate solutions and strict adherence to technical key points. Whether through the stepped arrangement or the use of special foundations, careful planning, accurate design, and precise construction are essential to ensure the stability, safety, and performance of the ground mount system. By considering these factors, installers can overcome the challenges posed by sloped terrains and create reliable ground mount installations.
