In the contemporary era of rapid energy transition, solar photovoltaic (PV) power generation has emerged as a cornerstone of sustainable energy solutions. At the heart of every efficient solar roof installation lies the mounting system, and within this framework, aluminum guide rails stand as the unsung heroes, providing essential structural support and functionality. This article delves deep into the world of aluminum guide rails, exploring their material properties, structural design, performance advantages, application scenarios, and future development trends.
Material Properties: The Foundation of Excellence
Aluminum alloys, particularly those of the 6000 series such as 6005A, 6061, and 6063, are the primary materials for solar roof mounting guide rails. These alloys are meticulously selected for their optimal balance of strength, lightness, and corrosion resistance.
One of the most significant advantages of aluminum alloys is their low density, approximately one - third that of steel. This characteristic is a game - changer in solar roof installations, especially in residential and commercial buildings where roof load - bearing capacity is a critical concern. By using aluminum guide rails, the overall weight of the mounting system is significantly reduced, minimizing the stress on the roof structure. This not only simplifies the installation process but also broadens the range of buildings that can accommodate solar PV systems.
Corrosion resistance is another standout feature of aluminum alloys. When exposed to air, aluminum forms a thin, invisible, and self - healing layer of aluminum oxide on its surface. This protective layer acts as a barrier, preventing further oxidation and shielding the metal from environmental factors such as moisture, acids, and alkalis. In coastal regions, where salt - laden air can rapidly corrode metals, or in industrial areas with high levels of air pollution, aluminum guide rails maintain their structural integrity over extended periods. This durability reduces maintenance costs and extends the lifespan of the solar roof mounting system, making it a cost - effective choice in the long run.
Aluminum alloys also offer excellent formability. Through processes like extrusion, they can be shaped into a wide variety of complex cross - sectional profiles. This flexibility allows manufacturers to design guide rails that are tailored to specific installation requirements, ensuring a perfect fit for different PV module types and mounting configurations. Additionally, aluminum is highly receptive to surface treatments. Anodizing, for example, not only enhances the aesthetic appeal of the guide rails but also further improves their corrosion resistance and wear - resistance.
Structural Design: Engineering for Efficiency
The structural design of aluminum guide rails is a testament to the marriage of form and function. The design process takes into account factors such as load - bearing capacity, ease of installation, and compatibility with PV modules.

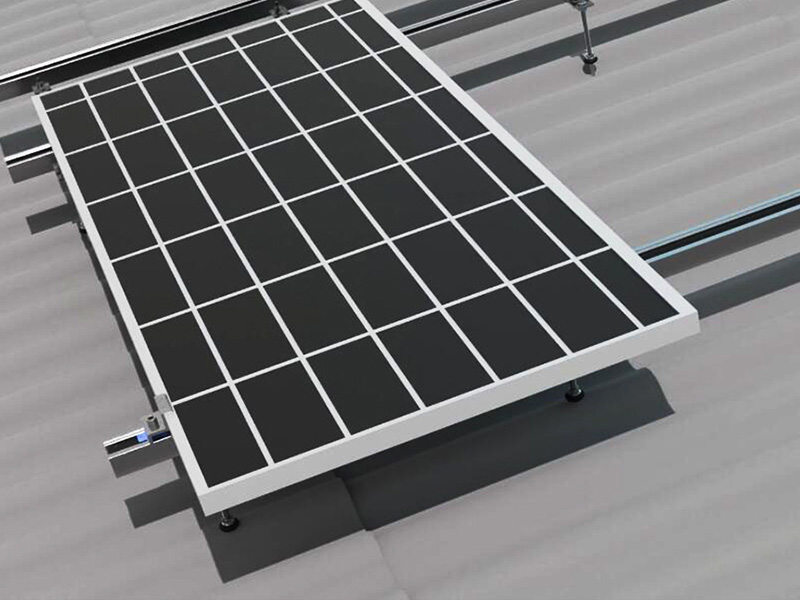

A common design feature is the use of grooves or slots along the length of the guide rail. These slots are engineered to precisely mate with PV module clamps and other connecting components. This interlocking mechanism allows for a quick and secure attachment of PV modules, eliminating the need for complex and time - consuming assembly processes. The snap - fit or bolt - down installation methods enabled by these slots significantly reduce installation time and labor costs, making large - scale solar installations more feasible and cost - effective.
In terms of mechanical structure, many aluminum guide rails feature hollow or honeycomb - like cross - sections. This design approach maximizes strength - to - weight ratio. The hollow structure distributes material in a way that optimizes resistance to bending and torsional forces while minimizing material usage. Reinforcing ribs are often incorporated into the design, especially in areas prone to high stress, such as at the supports or under concentrated loads. These ribs enhance the overall rigidity of the guide rail, ensuring that it can withstand the dynamic forces exerted by wind, snow, and other environmental factors.
Another aspect of structural design is modularity. Modular aluminum guide rail systems are becoming increasingly popular as they offer greater flexibility in installation. These systems consist of standardized components that can be easily combined and customized according to the specific requirements of a solar installation. This modular approach not only speeds up the installation process but also simplifies future maintenance and upgrades.
Performance Advantages: Beyond Expectations
Aluminum guide rails offer a plethora of performance advantages that contribute to the overall efficiency and reliability of solar roof mounting systems.
Despite their lightweight nature, aluminum guide rails can support significant loads. Rigorous engineering and material optimization ensure that they can bear the weight of PV modules, as well as additional loads from wind, snow, and seismic activity. Advanced finite element analysis (FEA) techniques are often employed during the design phase to simulate real - world loading conditions and optimize the guide rail's structural performance. As a result, solar roof systems equipped with aluminum guide rails can operate safely and efficiently in a wide range of climates, from hurricane - prone coastal areas to regions with heavy snowfall.
The thermal compatibility between aluminum guide rails and PV modules is another crucial advantage. Aluminum has a coefficient of thermal expansion that closely matches that of PV module glass. This similarity is vital because it minimizes the stress caused by thermal expansion and contraction. In regions with large temperature fluctuations, this thermal compatibility helps prevent damage to PV modules, such as cracking of the glass or delamination of the encapsulation materials. By reducing thermal stress, aluminum guide rails contribute to the long - term durability and performance of solar PV systems.
Sustainability is also a key performance aspect of aluminum guide rails. Aluminum is one of the most recyclable materials on the planet. At the end of a solar roof system's lifecycle, the aluminum guide rails can be recycled with relatively low energy consumption. Recycling aluminum requires only about 5% of the energy needed to produce new aluminum from bauxite ore. This high recyclability rate not only conserves natural resources but also reduces the environmental impact associated with the production of solar PV systems.
Application Scenarios: Versatility in Action
The versatility of aluminum guide rails makes them suitable for a wide range of solar roof installation scenarios.
In residential applications, aluminum guide rails are highly favored. Homeowners often have specific aesthetic and structural requirements for their solar installations. The lightweight and customizable nature of aluminum guide rails allow for seamless integration with various roof types, including pitched, flat, and curved roofs. Moreover, the ability to choose from different surface finishes and colors ensures that the solar installation blends harmoniously with the architectural style of the house. The ease of installation also means that residential solar projects can be completed relatively quickly, reducing disruption to the homeowners.
Commercial buildings, with their large roof areas, present unique opportunities for solar energy generation. Aluminum guide rails are well - suited for these applications due to their high load - bearing capacity and ease of large - scale installation. In office buildings, shopping malls, and industrial warehouses, aluminum guide rail - based mounting systems can support a large number of PV modules, maximizing the solar power generation potential. The long - term durability and low maintenance requirements of aluminum guide rails are particularly beneficial for commercial property owners, as they reduce the overall cost of solar system ownership.
Agricultural and industrial applications also benefit from the use of aluminum guide rails. In agricultural settings, solar PV systems can be installed on barns, greenhouses, and other farm buildings. The corrosion - resistant properties of aluminum are especially valuable in these environments, where exposure to fertilizers, pesticides, and other chemicals is common. In industrial areas, where harsh environmental conditions such as high humidity, pollution, and extreme temperatures may prevail, aluminum guide rails provide a reliable and long - lasting solution for solar roof mounting.
Development Trends: Shaping the Future
The future of aluminum guide rails in solar roof mounting systems is marked by continuous innovation and technological advancement.
Material innovation is at the forefront of development. Researchers are exploring new alloy compositions and manufacturing processes to further enhance the properties of aluminum guide rails. For instance, the addition of rare - earth elements to aluminum alloys has shown promise in improving strength, corrosion resistance, and fatigue life. New manufacturing techniques, such as 3D printing of aluminum components, may also revolutionize the production of guide rails, enabling more complex and customized designs.
Smart technology integration is another emerging trend. As the Internet of Things (IoT) and sensor technologies continue to evolve, there is a growing demand for intelligent solar roof mounting systems. Aluminum guide rails can be equipped with sensors to monitor parameters such as stress, temperature, and deformation in real - time. This data can be used to optimize the performance of the solar PV system, predict maintenance needs, and ensure the safety and reliability of the installation.
In line with global sustainability goals, the production of aluminum guide rails is becoming more environmentally friendly. Manufacturers are adopting green manufacturing practices, such as using renewable energy sources in production, reducing waste generation, and improving the recycling process. There is also a trend towards using recycled aluminum in the production of new guide rails, further reducing the carbon footprint of solar PV systems.
In conclusion, aluminum guide rails are an integral part of solar roof mounting systems, offering a combination of material excellence, intelligent design, superior performance, and wide - ranging applications. As the solar energy industry continues to grow and evolve, aluminum guide rails will undoubtedly play an even more crucial role in driving the transition to a clean energy future. Their ongoing development, driven by innovation and sustainability, holds the promise of making solar PV systems more efficient, cost - effective, and environmentally friendly.
