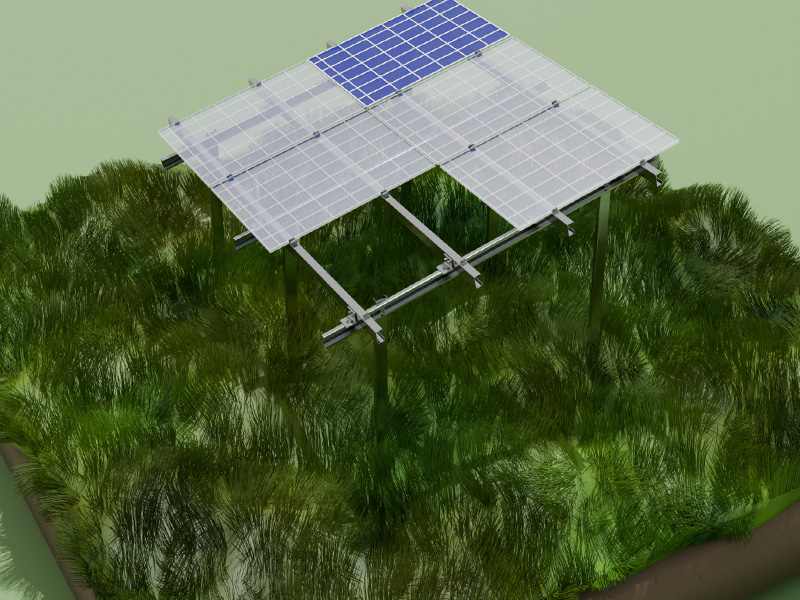

Modular solar mounting systems—featuring pre-assembled nodes, bolted connections, and standardized components—significantly reduce installation time while enabling crane-free assembly in remote sites. Here’s how they transform projects like Australia’s outback solar farms:
Modular designs cut deployment time through:
Pre-Fabricated Nodes:
Components arrive site-ready (pre-drilled, pre-galvanized).
Time saved: Eliminates 80% of on-site measuring/cutting.
Plug-and-Play Bolting:
Uses standardized M12/M16 bolts with captive washers.
Example: 1MW tracker system install drops from 8 days → 3 days.
Minimal On-Site Labor:
2–3 workers can assemble 30–40 mounts/day vs. 15–20 for traditional systems.
Australian Case: Rio Tinto’s Pilbara mine solar farm used modular bolts to install 6MW in 11 days amid 45°C heat—30% faster than conventional methods.
Modular mounts prioritize simplicity for remote deployments:
| Tool Type | Required? | Purpose |
|---|---|---|
| Crane/Lift | ❌ No | Modules weigh <25kg (manual handling) |
| Torque Wrench | ✅ Yes | Critical for bolt tension (e.g., 90Nm for M12) |
| Impact Driver | ⚠️ Optional | Speeds assembly but not essential |
| Laser Level | ✅ Yes | Ensures rail alignment (±1.5mm tolerance) |
Key Features Enabling Crane-Free Use:
Ultra-Light Materials: Aluminum/ZM-steel components.
Sliding Interlocks: Rails snap together without lifting.
Ground-Level Assembly: No elevated work until full structure is secured.
Transport Efficiency:
Flat-packed modules fit 50% more mounts per truck vs. welded frames.
Minimal Skill Barrier:
Color-coded bolts + pictorial instructions enable non-specialist crews.
Extreme Environment Adaptation:
Zinc-nickel bolts resist red dust corrosion.
UV-stabilized nylon alignment jigs prevent thermal warping.
Challenge Fix: In Queensland’s flood-prone zones, modules use sacrificial anode bolts (Mg-alloy) to prevent galvanic corrosion in soggy soil.
Bolt Quality: Must meet ISO 898-1 Class 10.9 + ASTM F3125 for cyclic wind loads.
Foundation Flexibility: Works with helical piles, ground screws, or concrete.
Vibration Risks: Use nord-lock washers on tracker hinges to prevent loosening.
Modular mounts slash installation time by 40–60% and eliminate crane needs—ideal for Australia’s remote regions. Success hinges on:
Pre-Engineered Kits (e.g., Schletter’s FS system, Nextracker’s NX Horizon).
Basic Tools: Torque wrench + laser level suffice.
Corrosion-Adapted Fasteners: Zinc-nickel or stainless bolts (A4-80) for harsh climates.
Pro Tip: For Australian projects, specify AS/NZS 5131-compliant bolts and demand 3.1 material certificates to avoid field failures.
Bottom Line: Modular solar mounts turn weeks of complex construction into days of simplified assembly—unlocking rapid, low-cost solar expansion even in the world’s most isolated sites.
