Hot-Dip Galvanizing (HDG) vs. Zinc-Aluminum-Magnesium (ZM) Coatings: Introduction and Comparison
Definition:
A process where pre-treated steel components are immersed in molten zinc (approx. 450°C). Through an iron-zinc reaction and wetting action, a series of iron-zinc alloy layers form on the steel surface, covered by an outer layer of pure zinc.
Main Composition:
Zinc content > 99%. A relatively pure zinc coating.
Corrosion Protection Mechanism:
Physical Barrier: The dense zinc layer isolates the steel substrate from corrosive media (water, oxygen).
Sacrificial Anode Protection (Cathodic Protection): Zinc has a more negative electrode potential than iron. When the coating is damaged or cut edges expose the steel substrate, zinc corrodes preferentially as the anode, protecting the steel (cathode). This is the primary protection mechanism.
Advantages:
Mature and Stable Technology: Long history, well-established process, reliable and consistent quality.
Effective Sacrificial Protection: Provides good cathodic protection at cut edges, scratches, and damaged areas.
Relatively Low Cost: Zinc is readily available; mature process keeps overall costs low.
Good Workability: Suitable for general stamping, bending, and forming.
High Standardization: Well-established international standards (e.g., GB/T 13912, ASTM A123/A123M, EN ISO 1461).
Disadvantages:
Requires Thicker Coatings for High Corrosion Resistance: Achieving long service life often necessitates thick coatings (e.g., >80μm per side).
Relatively Weaker Protection at Cut Edges: While sacrificial protection works, cut edges can corrode faster (red rust) in extreme environments (marine, industrial).
Average Abrasion/Wear Resistance: Pure zinc is relatively soft.
Appearance Changes Over Time: Zinc oxidizes to form white rust (zinc carbonate hydroxide), eventually developing a dull grey patina (doesn't affect protection).
Limited Resistance to Certain Chemicals: E.g., strong acids, strong alkalis.
Typical Applications:
Power transmission towers, communication towers.
Highway guardrails, municipal railings.
Building structures (roof trusses, supports).
Water pipes, gas pipes.
General fasteners, brackets, metal containers.
Agricultural and livestock facilities.
Definition:
A newer alloy coating technology. By adding specific proportions of aluminum (Al) and magnesium (Mg), and sometimes silicon (Si), to the traditional zinc bath, a multi-phase coating forms on the steel surface. This coating has a zinc base with a complex eutectic/eutectoid microstructure rich in Zn, Al, and Mg. Typically produced via hot-dip process.
Main Composition:
Low-Al Type (e.g., ZM120/ZM150): Zn + 1-3% Al + 1-3% Mg + (trace Si)
Medium-Al Type (e.g., ZM310): Zn + ~5-11% Al + ~2-3% Mg + (trace Si)
High-Al Type (e.g., 55%Al-Zn-Mg): Al + Zn + Mg (e.g., Galvalume Plus - technically closer to Al-Zn base)
Core Components: Zn + Al + Mg. Common commercial grades:
This discussion focuses on Low-Al and Medium-Al ZM coatings, most common for general steel corrosion protection.
Corrosion Protection Mechanism (More Complex & Efficient):
Aluminum (Al): Preferentially forms a dense, stable, adherent aluminum oxide (Al₂O₃) or basic salt layer on the coating surface and within corrosion pits, effectively blocking further corrosive ingress and significantly slowing corrosion rate. Suppresses white rust formation.
Magnesium (Mg): Promotes the rapid formation of dense, stable, low-solubility, highly adherent protective films (e.g., basic zinc chlorides, zinc hydroxide, magnesium hydroxide, Mg-containing layered double hydroxides - LDHs) at coating damage sites, cut edges, and scratches. This film:
Covers and "heals" damaged areas.
Provides exceptional protection at cut edges, drastically delaying red rust appearance.
Forms a protective layer over the coating surface, reducing overall corrosion rate.
Physical Barrier: Dense coating structure provides barrier protection.
Sacrificial Anode Protection: Zinc and Magnesium provide cathodic protection (Mg has a more negative potential than Zn).
Self-Healing/Densification of Corrosion Products: This is the key feature!
Synergistic Effect: The Zn-Al-Mg combination creates a unique eutectic/eutectoid microstructure (e.g., Zn dendrites with interdendritic Al-rich phases and Zn/MgZn₂ eutectic), inherently corrosion-resistant and promoting the formation of the protective corrosion products mentioned.
Advantages:
Outstanding Corrosion Resistance: Typically 2-10 times or more resistant than standard HDG at equivalent coating thickness, especially in harsh environments (high humidity, marine, chloride ions, industrial pollution) and exceptionally superior at cut edges, scratches, and bends. Significantly extends component life.
Exceptional Cut Edge Protection: The self-healing effect provides revolutionary corrosion protection at bare edges created by shearing, punching, sawing, or bending, dramatically delaying red rust.
Potential for Thinner Coatings: Due to vastly improved corrosion resistance, significantly thinner coatings (e.g., 60-80g/m² ZM vs. 100-150g/m² HDG) can achieve equivalent or better service life, enabling material light-weighting and cost optimization.
Good Abrasion/Scratch Resistance: Alloy coatings are generally harder and more wear-resistant than pure zinc.
Better Scratch Resistance: Coating structure offers better resistance to scratches during handling/installation.
Improved Aesthetics (Some Types): Low-Al ZM: Similar to HDG but brighter/more uniform. Medium-Al ZM: Unique fine spangle or smooth finish, more modern appearance. Forms denser corrosion products with less/less severe white rust.
Good Formability: Generally meets forming requirements (stamping, bending) comparable to HDG (specifics depend on composition/structure).
Disadvantages:
Higher Cost: Raw materials (especially Mg) are more expensive than zinc; process control is stricter, leading to higher per-unit-area coating cost than HDG (though overall lifecycle cost may be better due to corrosion resistance enabling thinner coatings/longer life).
Relatively Newer Technology: Large-scale commercial use history (~20+ years) is shorter than HDG; performance varies between manufacturers.
Standardization Still Evolving: International/national standards are less mature/unified than for HDG (e.g., ISO 17925, EN 10346 Annex D, JIS G 3323; Chinese standards under development).
Weldability: Al and Mg increase spatter and porosity risk; welding parameters usually need adjustment.
High-Temperature Limitations: Low-melting eutectic phases may soften or degrade performance at elevated temperatures (>200°C).
Visual Identification: Low-Al ZM can be hard to distinguish from HDG for non-experts.
Typical Applications:
Harsh Environment Construction: Coastal buildings, industrial buildings in high humidity, chemical plant structures.

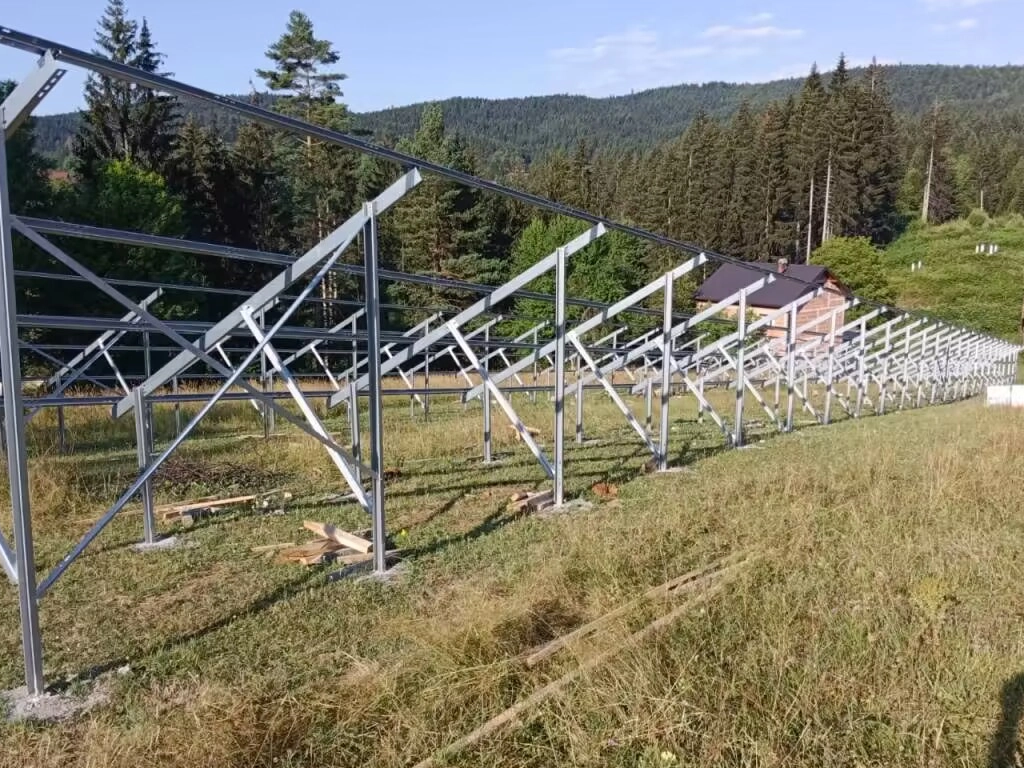

Structures Requiring Ultra-Long Life/Low Maintenance: Solar mounting structures (especially coastal, aquaculture-complementary), wind turbine towers (interior), high-speed rail noise barriers, bridge components (auxiliary), data center infrastructure.
Applications Demanding High Cut Edge Protection: Livestock equipment (highly corrosive), agricultural greenhouse frames, grain silos, warehouse storage racks, cable trays/ladders.
Lightweighting & High-Performance Structures: Automotive components (structural, chassis), appliance housings (high-end).
Base Material for Pre-Painted Steel (Coil Coating): Used as a high-corrosion-resistance substrate for premium painted sheets (e.g., building facades, roofs).
Feature | Hot-Dip Galvanizing (HDG) | Zinc-Aluminum-Magnesium (ZM - Low/Med-Al) | Comparison Notes |
---|---|---|---|
Main Composition | >99% Zn | Zn + Al (1-11%) + Mg (1-3%) + (Si) | ZM is a multi-component alloy coating. |
Core Protection Mechanism | Sacrificial anode (primary) | Sacrificial anode + Dense oxide barrier + Self-healing protective film | ZM mechanism is more complex & efficient; Self-healing is revolutionary. |
Corrosion Resistance | Good | Outstanding (Typically 2-10x+ HDG @ same thickness) | ZM significantly superior; advantage grows with harsher environments. |
Cut Edge Protection | Sacrificial protection, relatively weaker | Exceptional (Self-healing effect) | A core strength of ZM; drastically delays red rust. |
Potential Coating Thickness | Thicker needed for high protection | Can be significantly thinner (for equal/better life) | ZM offers major potential for lightweighting. |
Surface Appearance | Bright/grey spangle; dulls, forms white rust | Low-Al: Similar to HDG but brighter/more uniform; Med-Al: Fine spangle/smooth, more aesthetic; less/severe white rust | ZM generally better appearance & white rust resistance. |
Abrasion/Scratch Resist. | Average | Better | Alloy coating generally harder. |
Formability | Good | Good to Excellent (depends on grade) | Generally meets similar requirements; check specific grade. |
Weldability | Good | Poorer (More spatter/porosity; needs parameter adjustment) | Weldability is a disadvantage for ZM. |
Cost | Lower (Per unit area coating cost) | Higher | ZM has higher initial cost, but consider overall lifecycle cost advantage from thinner coatings & longer life. |
Tech Maturity/Standardization | Very Mature/Stable | Relatively New (~20+ yrs), rapidly evolving | HDG highly standardized; ZM varies more by producer, standards evolving. |
Primary Applications | General structures, guardrails, towers, pipe, general steel | Harsh env. construction, solar/wind, long-life structures, high cut-edge protection, coil coating base, automotive, high-end appliances | ZM excels in demanding, high-performance, harsh environments; rapidly replacing HDG in these areas. |
Choose Hot-Dip Galvanizing (HDG):
Budget is limited/cost-sensitive.
Application environment has mild corrosion (inland/dry, typical urban).
Cut edge protection is not critical, or maintenance (e.g., touch-up painting) is feasible.
Requires very mature technology and standardized assurance.
General structural components; lightweighting not a priority.
High welding demands with difficulty adjusting parameters.
Choose Zinc-Aluminum-Magnesium (ZM):
Pursuing ultra-long service life and low maintenance cost.
Application environment is harsh (high humidity, marine, industrial pollution, chlorides, agriculture/livestock).
Requires exceptional corrosion protection at cut edges, scratches, bends (post-treatment difficult/impossible).
Needs thinner coatings for lightweighting.
Requires superior product aesthetics (especially long-term).
Used in high-performance sectors (solar mounting, wind, data centers, premium building envelopes, automotive).
As a base material for high-end pre-painted steel (coil coating).
Hot-Dip Galvanizing (HDG) remains a proven, economical, and practical corrosion protection technology, dominant in general applications. Zinc-Aluminum-Magnesium (ZM) represents the next generation of high-performance coatings, with its outstanding corrosion resistance, particularly the revolutionary self-healing cut edge protection. Although ZM has a higher per-unit-area cost than HDG, its potential for thinner coatings, extended lifespan, and reduced maintenance offer significant overall lifecycle cost advantages in harsh environments, long-life applications, and high-value sectors. ZM is rapidly expanding its market share and is a key direction for upgrading steel corrosion protection. Selection should consider the operating environment, service life requirements, budget, and processing methods. For new projects, especially in harsh conditions or demanding high durability, ZM is a highly recommended advanced solution.
