The efficient and secure installation of solar panels on rooftops hinges on a robust and adaptable foundation. At the heart of this foundation lies a crucial combination: specially engineered aluminum fittings and roof hooks. This synergistic pairing forms the essential interface between the photovoltaic (PV) modules and the roof structure itself, ensuring long-term performance, structural integrity, and installation flexibility.
Roof hooks serve as the primary point of attachment to the building. Their design is paramount:
Function: To securely fasten the entire mounting system directly to the roof's structural elements (rafters, trusses), transferring all mechanical loads (weight, wind, snow) safely into the building.
Materials & Design: Typically manufactured from highly corrosion-resistant materials:
Galvanized Steel (e.g., G550 or higher): Offers high tensile strength and is cost-effective. A thick zinc coating (e.g., Z275, Z450) provides essential corrosion protection.
Stainless Steel (e.g., AISI 304, 316): Provides superior corrosion resistance, especially in harsh coastal or industrial environments, though at a higher cost. 316 is preferred for maximum durability near saltwater.
Variations: Hooks are designed for specific roof types:

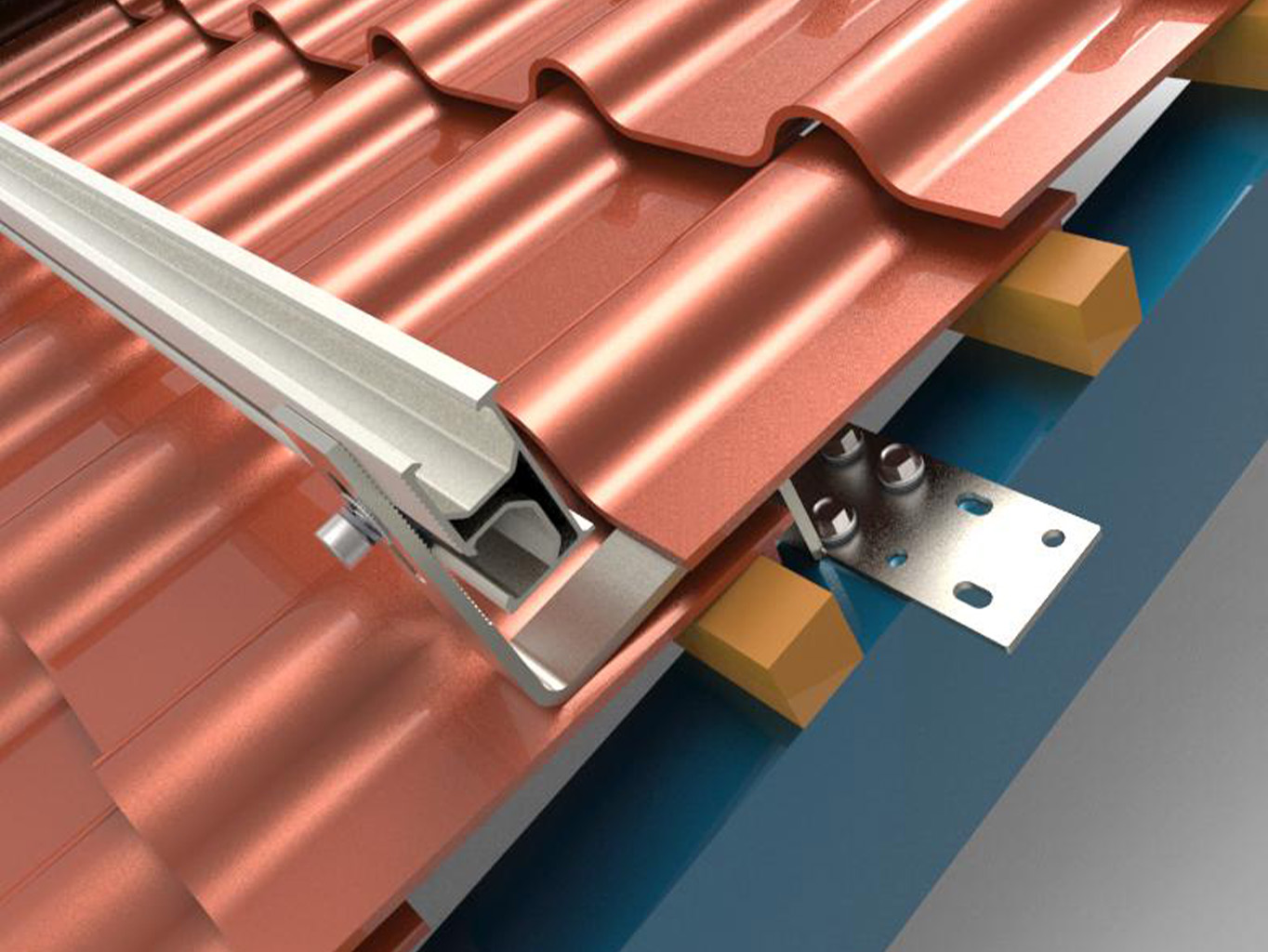

Tiled Roofs: Often feature extended "feet" or adjustable bases to clip under or hook onto tiles without compromising waterproofing.
Sheet Metal Roofs: Utilize clamps or brackets that seal directly onto the ribs or seams of standing seam or trapezoidal metal roofs.
Shingle/Asphalt Roofs: Employ larger bases with integrated flashing to create a watertight seal around the penetration point.
Key Attribute: The hook's strength and corrosion resistance are non-negotiable, as failure here compromises the entire system.
Aluminum fittings form the backbone of the above-roof structure, connecting the roof hooks to the rails that support the PV modules. Their versatility is key:
Function: To provide height adjustment (standoff), tilt angle adjustment, lateral positioning, and a secure connection point for the mounting rails.
Material: Almost exclusively fabricated from Aluminum Alloys (typically 6005-T5 or 6061-T6). This choice is critical because:
High Strength-to-Weight Ratio: Provides necessary structural support while minimizing overall system weight on the roof.
Superior Corrosion Resistance: Aluminum naturally forms a protective oxide layer. Enhanced protection is achieved through anodizing (creating a thicker, harder oxide layer, often clear or colored) or high-quality powder coating.
Excellent Workability & Formability: Allows for complex, lightweight designs.
Thermal Compatibility: Closer thermal expansion coefficient to PV module frames than steel, reducing stress at connection points.
Non-Magnetic & Non-Sparking: Beneficial in certain environments.
Design Complexity: Fittings range from simple L-brackets and angle adjusters to sophisticated multi-component assemblies offering:
Height Adjustment (Standoff): Crucial for creating airflow under modules (cooling) and clearing roof obstructions (tiles, seams, insulation).
Tilt Angle Adjustment: Enables optimal panel orientation for seasonal sun angles, maximizing energy yield.
Lateral Rail Positioning: Allows precise alignment of rails relative to the fixed roof hook positions.
Robust Clamping: Secure interfaces with both the roof hook below and the aluminum rail above, often using high-grade stainless steel bolts and nuts.
The true power lies in the integration of these components:
Optimal Material Pairing: The corrosion resistance of both the roof hook (galvanized/stainless steel) and the aluminum fitting (anodized/powder coated) ensures longevity in harsh rooftop environments. Dissimilar metal contact is managed using insulating pads or appropriate plating (e.g., zinc plating on steel bolts touching aluminum) to prevent galvanic corrosion.
Load Transfer Efficiency: The robust roof hook anchors the system. The engineered aluminum fittings efficiently transfer the loads from the rails and panels down into these anchors without deformation or fatigue.
Installation Flexibility & Speed: Pre-assembled or easy-to-combine fitting/hook combinations significantly speed up installation. Adjustability within the fittings compensates for roof irregularities and simplifies achieving precise panel layout and tilt.
System Optimization: The combination allows designers to tailor the mounting height, tilt, and rail spacing specifically for the project's requirements, roof type, and module dimensions.
Aesthetics & Minimal Footprint: Streamlined aluminum fittings contribute to a lower visual profile. Efficient design minimizes the number of roof penetrations required per hook/fitting assembly.
The aluminum fitting and roof hook combination is far more than just hardware; it is the engineered foundation of a successful rooftop solar installation. The roof hook provides the vital, secure anchor point, built to withstand corrosion and transfer structural loads. The aluminum fitting assembly offers the critical adaptability, strength, and corrosion resistance needed to precisely position and support the PV array efficiently and reliably for decades. Careful selection of high-quality, compatible components within this pairing – considering specific roof type, local climate, and structural requirements – is fundamental to ensuring the safety, performance, and longevity of any rooftop solar photovoltaic system. This essential alliance enables solar energy to be harnessed effectively and securely on diverse rooftops worldwide.
