Solar Tile Roof Mounting System: Opening a New Vision of Green Energy
In the global wave of actively seeking sustainable energy solutions, solar energy, as a clean and renewable energy source, is gradually becoming the mainstay in the energy field. The solar tile roof mounting system, as a key component of the solar photovoltaic power generation system, is like a bridge that closely connects solar panels with the roof, laying a solid foundation for the efficient utilization of solar energy.
I. System Structure and Components

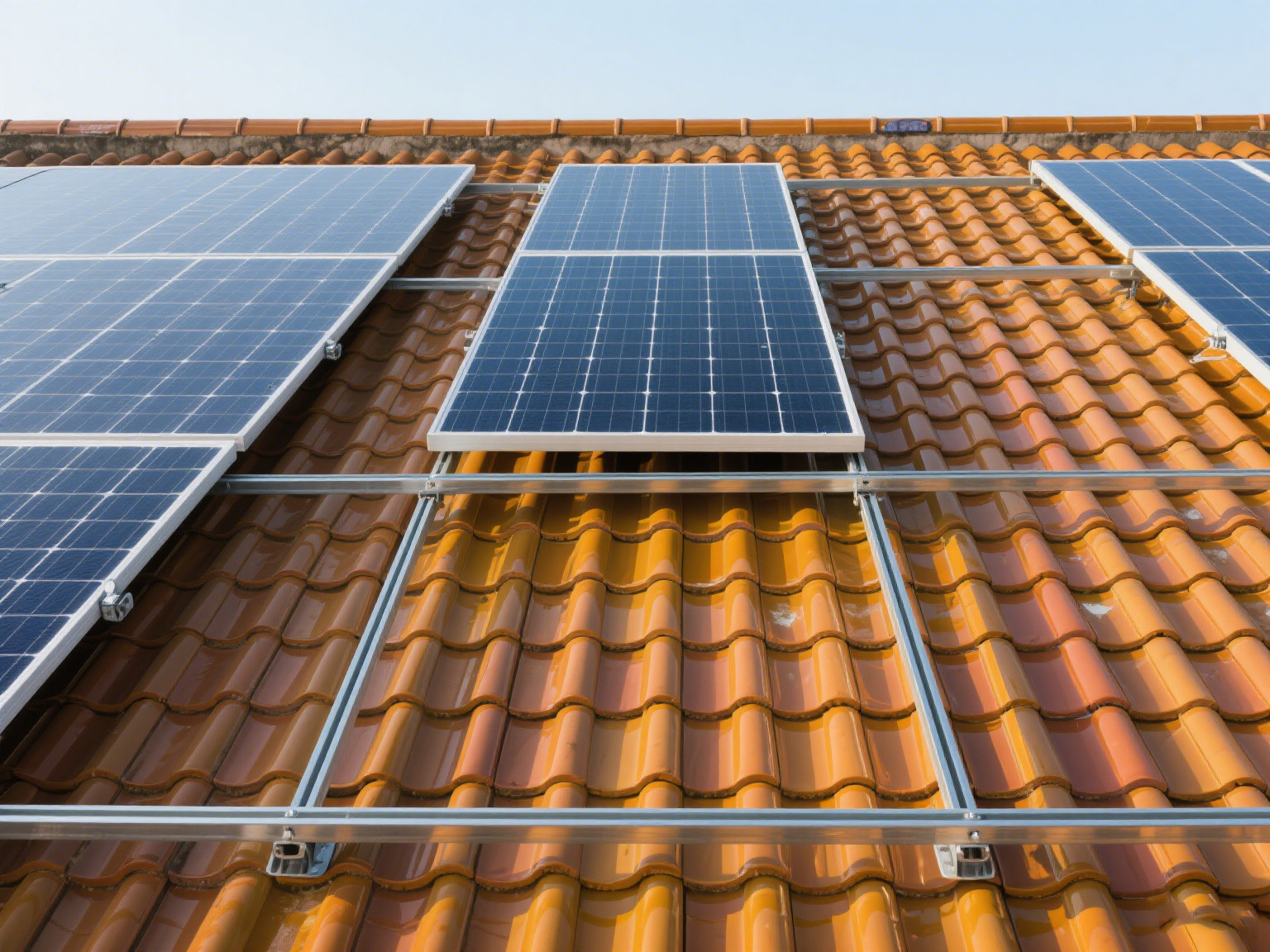

The solar tile roof mounting system is like an elaborately constructed "solar panel support matrix", mainly composed of guide rails, hooks, clamps and various connectors. The guide rails are usually made of high-strength aluminum alloy, and their unique extrusion process endows them with excellent structural strength and corrosion resistance. Taking the common 6005-T5 aluminum alloy guide rail in the market as an example, it can not only easily bear the weight of solar panels, but also stand firm in harsh environments such as wind, sun, rain and snow, ensuring the long-term stable operation of the system. Hooks are key components connecting guide rails and roof tiles. For different types of roof tiles, such as wave tiles, Roman tiles, slate tiles and clay tiles, hooks adapted to them are designed. These hooks are cleverly located under the tiles and fixed on the underlying structure (usually wooden battens), which can not only reduce the penetration of the roof, but also provide stable support. Clamps are used to firmly fix solar panels on the guide rails. Adjustable clamps can meet the installation needs of solar panels of different sizes, ensuring that solar panels can remain stable under various environmental conditions.
II. System Functions and Working Principles
The core function of the solar tile roof mounting system is to provide stable and reliable support for solar panels, enabling them to receive sunlight at the optimal angle, thus maximizing the efficiency of photovoltaic power generation. Its working principle contains exquisite design logic: by adjusting the tilt angle and orientation of the bracket system, the solar panel can be as perpendicular to the sun's rays as possible. In the northern hemisphere, solar panels are usually installed facing due south to make full use of solar radiation. For the change of solar altitude angle in different seasons, some advanced bracket systems also have the function of manually or automatically adjusting the tilt angle. For example, in winter, when the solar altitude angle is low, appropriately increasing the tilt angle of the solar panel can increase the receiving area of the solar panel for sunlight; in summer, when the solar altitude angle is high, appropriately reducing the tilt angle can prevent the solar panel from reducing power generation efficiency due to overexposure. This precise angle adjustment is like equipping the solar panel with an intelligent "light tracker", enabling it to always capture the most sufficient sunlight and efficiently convert solar energy into electricity.
III. System Advantages
Installation Convenience: The design of the solar tile roof mounting system fully considers the convenience of installation. Most of its components can be highly pre-installed. During on-site installation, workers only need to quickly assemble each component according to the pre-designed scheme. Taking a well-known brand of bracket system as an example, the unique inclined mounting clips can be inserted from any position of the aluminum alloy extruded guide rail and highly pre-installed with the clips and hooks, which greatly reduces the installation time and cost. Compared with the traditional bracket system, the installation efficiency can be improved by 30%-50%.
High Durability: The system is designed with a service life of 20 years or even longer. All structural parts are made of high-quality materials such as high-strength stainless steel and anodized aluminum alloy. These materials have excellent weather resistance and durability, and can effectively resist the erosion of extreme climate conditions such as wind, rain, sun, ice and snow. After strict simulation tests, the bracket system can still remain stable and provide reliable support for solar panels in harsh environments where the strong wind speed reaches 60m/s and the heavy snow load reaches 1.8kN/m².
Wide Applicability: Whether it is the roof of a small residence, the roof of a large commercial building, or different types of roof structures (such as sloping roofs and flat roofs), the solar tile roof mounting system can be perfectly adapted. For various general framed solar panels on the existing market, the system can provide stable installation solutions, ranging from small-power household solar systems to large megawatt-level commercial solar power stations.
Good Aesthetics: While meeting functional requirements, the solar tile roof mounting system also pays attention to integration with the building appearance. Its design is compact and concise. After installation, it is integrated with the roof, almost without affecting the original beauty of the building. For some places with high requirements on building appearance, such as villas and high-end residential areas, the system can not only realize the efficient utilization of solar energy, but also maintain the overall beauty of the building.
IV. Installation Process and Key Points
Installation Process: First, determine the position of the roof hook according to the actual situation of the roof and the design scheme. It should be noted that the roof hook shall not be directly pressed on the roof tile, and shall be kept flat. If necessary, wood can be used for gasket treatment. Then, install the guide rail on the roof hook and fix it with T-bolts. During installation, ensure the levelness and straightness of the guide rail. Next, install the clamp, place the solar panel on the guide rail, and firmly connect the solar panel with the guide rail through the clamp. Finally, check the installation of the entire bracket system to ensure that all components are closely connected without looseness.
Installation Points: During installation, strictly operate in accordance with the product specifications and relevant standards. Use specified tools to ensure that the screw tightening torque meets the requirements, so as to avoid safety hazards such as falling of solar panels or bracket systems during use due to insecure installation. At the same time, the roof structure shall be evaluated to ensure that the roof can bear the weight of the bracket system and solar panels. If necessary, the roof can be reinforced. In addition, after the installation is completed, the system shall be comprehensively debugged to check whether the tilt angle and orientation of the solar panel meet the design requirements, so as to ensure the normal operation of the system.
V. Market Application Cases
In Sydney, Australia, a large commercial complex has adopted a solar tile roof mounting system. The commercial complex has a vast roof area. By installing a solar tile roof mounting system, a large number of solar panels are installed. According to the actual operation monitoring, the system can provide millions of kWh of clean electricity for the commercial complex every year, which not only meets most of its own electricity demand, but also feeds the surplus electricity back to the power grid, generating considerable economic and environmental benefits. In China, the roof of a well-known enterprise's factory is also installed with a solar tile roof mounting system. The application of this system has effectively reduced the factory's electricity cost, reduced carbon emissions, established a good green image for the enterprise and enhanced its sense of social responsibility.
As an important innovation achievement in the field of solar photovoltaic power generation, the solar tile roof mounting system is widely used worldwide with its unique advantages, contributing strong strength to promoting energy transformation and achieving sustainable development. With the continuous progress and innovation of technology, it is believed that the solar tile roof mounting system will shine more brilliantly on the future energy stage and create a cleaner and better green home for us.
