Solar Roof Mounting Systems: The Key Support for Green Energy

Introduction

Amid the global energy transition and the push for sustainable development, solar energy has gained increasing attention as a clean and renewable power source. Solar roof mounting systems, as a critical component of photovoltaic (PV) systems, directly impact the efficiency, safety, and lifespan of the entire installation. This article provides a comprehensive overview of solar roof mounting systems.

1. Basic Concepts of Solar Roof Mounting Systems

Solar roof mounting systems are specialized support structures designed to install PV panels on building rooftops. Their primary functions include:

1. Support and Fixation: Providing a stable platform for solar panels

2. Angle Adjustment: Optimizing panel tilt to maximize energy generation

3. Building Protection: Ensuring installation does not damage the roof structure

4. Safety Measures: Withstanding wind loads, snow loads, and other environmental factors

2. Main Types of Solar Roof Mounting Systems

1. Classification by Installation Method

• Flat Roof Mounting Systems:

• Typically use triangular support structures

• Allow adjustable tilt angles (usually 10°-30°)

• Require ballast or penetrating fixation

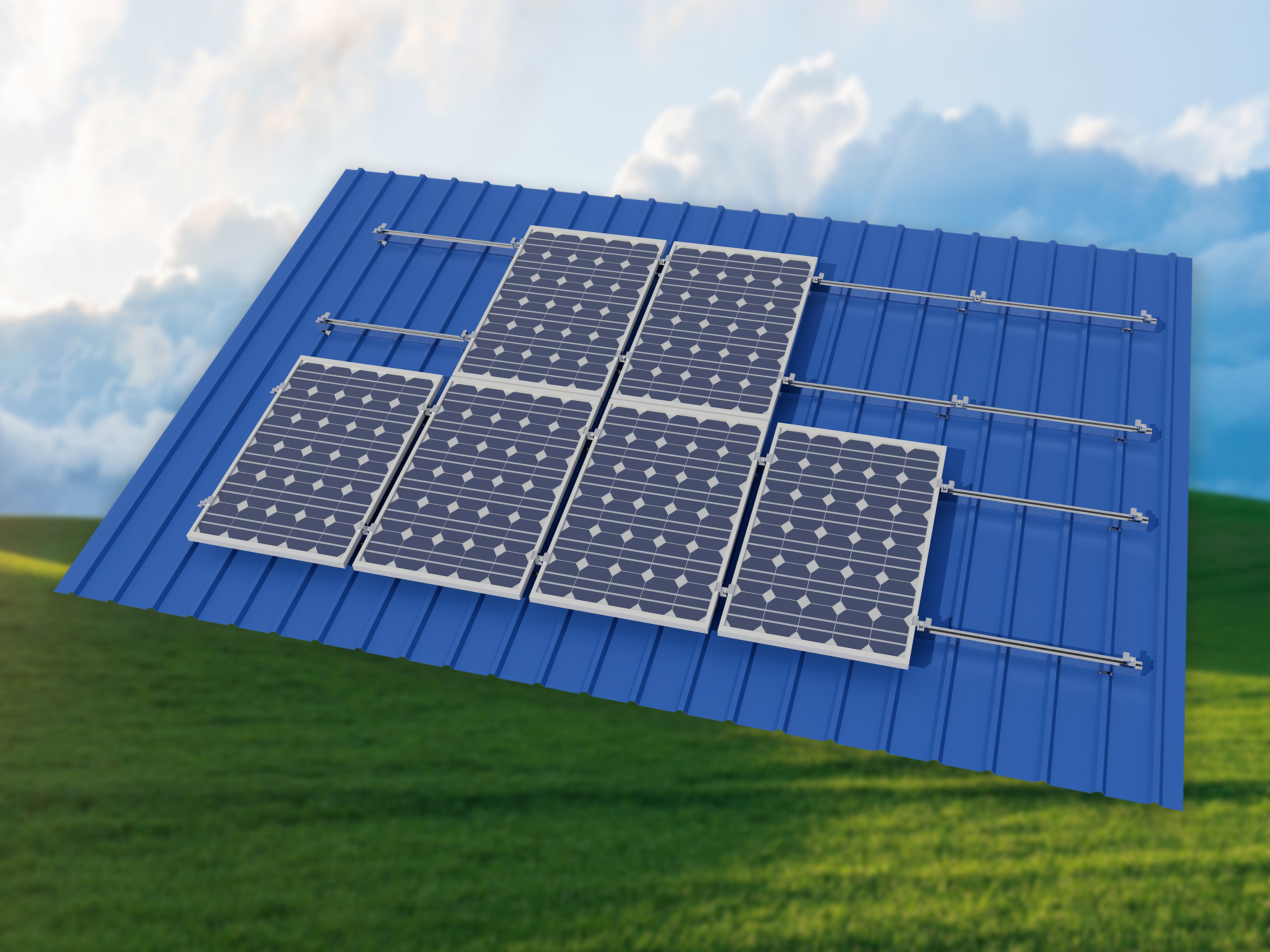

• Sloped Roof Mounting Systems:

• Mount directly onto the roof surface

• Lower profile, reducing wind resistance

• Commonly use hooks or rail fixation

2. Classification by Material

• Aluminum Mounting Systems:

• Lightweight and corrosion-resistant

• Higher cost

• Long lifespan (over 25 years)

• Galvanized Steel Mounting Systems:

• High strength and cost-effective

• Heavier weight

• Requires anti-corrosion treatment

• Stainless Steel Mounting Systems:

• Excellent corrosion resistance

• More expensive

• Often used in highly corrosive environments

3. Key Design Considerations for Solar Roof Mounting Systems

1. Structural Strength Calculations:

• Must account for local maximum wind speeds, snow loads, and climate conditions

• Compliance with building load standards

2. Angle Optimization:

• Determine optimal tilt based on geographic latitude

• Balance energy efficiency and wind resistance

3. Thermal Expansion Compensation:

• Allow for material expansion and contraction

• Prevent long-term stress deformation

4. Lightning Protection:

• Metal structures must be grounded to the building’s lightning protection system

• Prevent damage to PV systems from lightning strikes

4. Installation Considerations for Solar Roof Mounting Systems

1. Roof Assessment:

• Check structural load-bearing capacity

• Evaluate waterproofing condition

• Determine optimal panel placement

2. Installation Process:

• Measure and mark positioning

• Install base mounting components

• Assemble the support structure

• Mount PV panels

• System testing and commissioning

3. Safety Standards:

• Worker safety precautions

• Compliance with electrical installation codes

• Fall protection measures

5. Future Trends in Solar Roof Mounting Systems

1. Smart Design:

• Tracking systems with automatic angle adjustment

• Integrated sensors for real-time monitoring

2. Lightweight Materials:

• Use of advanced materials like carbon fiber

• Reduced roof load pressure

3. Integrated Solutions:

• Building-integrated photovoltaics (BIPV)

• Dual functionality as both power generator and building element

4. Rapid Installation Systems:

• Modular designs

• Reduced installation time and cost

Conclusion

Solar roof mounting systems serve as the crucial link between PV systems and buildings, and their importance cannot be overstated. With technological advancements and growing market demand, mounting systems are evolving toward greater efficiency, safety, and intelligence. Choosing the right mounting solution not only maximizes solar energy utilization but also ensures long-term system stability, laying a solid foundation for the green energy transition.

When considering a solar installation, consulting with professional designers is recommended to select the most suitable mounting system based on specific roof conditions and local climate characteristics, achieving the optimal balance between safety and cost-effectiveness.
