Why Corrugated Metal Roofs Are An Ideal Platform for PV Installation?

Corrugated Metal Roof PV Mounting Systems: The Preferred Solution for Efficiently Utilizing Industrial and Residential Space

Corrugated metal roofs (color steel sheet roofs), widely found on industrial buildings, warehouses, and rural self-built houses, serve as critical platforms for installing distributed photovoltaic (PV) systems. A reliable and well-adapted PV mounting system is the fundamental key to ensuring the safe, efficient, and long-term operation of PV power stations on such roofs.

Why Corrugated Metal Roofs are an Ideal Platform for PV Installation?

1. High Structural Strength: Compared to traditional tile roofs, corrugated metal roofs are typically supported by robust steel beams or purlin systems underneath, offering excellent overall load-bearing capacity. They can easily support the weight of PV modules and the mounting structure.

2. Convenient and Efficient Installation: Their regular, flat (or regularly corrugated) surface facilitates the positioning, installation, and fixing of the mounting system. Construction is fast, and costs are relatively low.

3. Penetration-Free Mounting (Mainstream Method): Most corrugated metal roof PV mounts employ a clamp-based fixing method. Clamps grip directly onto the roof's ridges (peaks) or valleys (troughs), eliminating the need to drill holes through the roof. This maximizes protection of the roof's original waterproofing layer, preventing potential leaks.

4. Good Ventilation and Heat Dissipation: A natural ventilation channel forms between the modules and the roof, helping to lower module operating temperatures and improve power generation efficiency.

Core Types and Features of Corrugated Metal Roof PV Mounting Systems

Designed primarily around how to safely and non-penetratively fix to the roof corrugations, common types include:

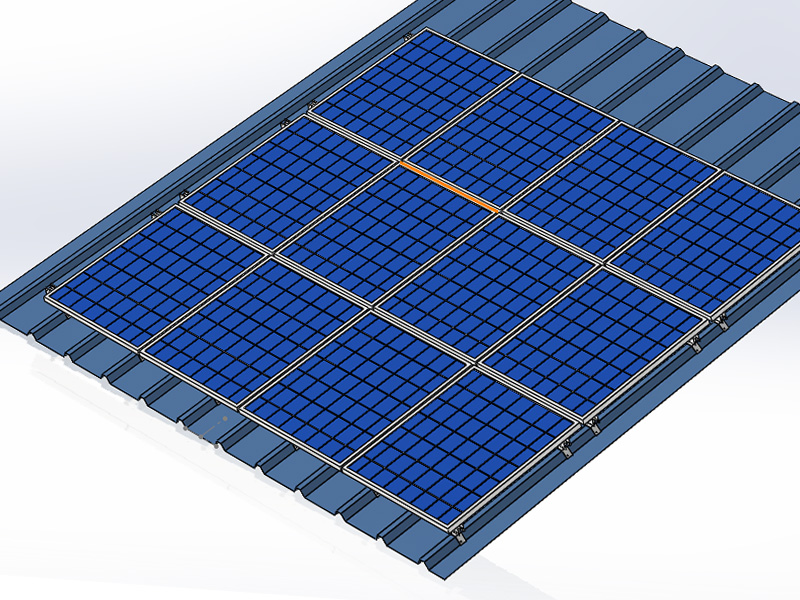

1. Clamp & Rail Systems:

• Structure: Primarily consists of specialized clamps shaped to match the roof profile (clamped on peaks or valleys), bases connecting clamps to rails, rails supporting the modules, and module clamps/end clamps securing the modules.

• Advantages: Relatively simple structure, lower cost, faster installation speed. This is currently the most mainstream and widely used solution.

• Applicability: Suitable for various common corrugation types (e.g., trapezoidal rib, standing seam, corrugated profiles).

2. Rail-Based Systems:

• Structure: Also relies on specialized clamps fixed to the roof, but uses longer longitudinal or transverse rails to support and secure multiple modules. Modules are typically fixed to the rails using side-clamping or mid-clamping methods.

• Advantages: High layout flexibility, adaptable to different module sizes and arrangements; overall structure is more stable with excellent wind uplift resistance; facilitates fine-tuning of module positioning.

• Applicability: Projects requiring high system stability and layout flexibility, especially suitable for large commercial/industrial roofs or areas prone to high winds.

3. Rail-less (Direct Mount) Systems:

• Structure: Modules are fixed directly to mounting bases attached to the roof via specialized connectors or clamps, eliminating rails.

• Advantages: Lowest material cost, most simplified installation steps.

• Disadvantages: Requires extremely high precision matching between module mounting holes and roof corrugations; poor adjustment flexibility; relatively weaker wind resistance (relies on single point strength). Less commonly used.

Clamps: The "Foundation" of Corrugated Roof Mounting Systems

Clamps are the core connecting components of corrugated roof mounting systems; their design and quality are critical:

• Compatibility: Must perfectly match the exact shape and dimensions of the roof corrugations to ensure firm clamping and even force distribution.

• Material & Corrosion Resistance: Typically made from high-strength aluminum alloy or stainless steel, with surface treatments like anodizing, providing excellent corrosion resistance to withstand harsh outdoor environments.

• Sealing: Contact surfaces between clamps and the roof often feature high-quality EPDM rubber or silicone pads. These increase friction to prevent slippage while also acting as a buffer and providing waterproof sealing, preventing water ingress at the clamping points.

Key Considerations for Installing Corrugated Metal Roof PV Mounting Systems

1. Roof Condition Assessment:

• Structural Load Capacity: Must be evaluated by a professional engineer to determine if the existing roof structure (purlins, beams) can withstand the additional PV loads (dead load, wind load, snow load). Particular caution is needed for older buildings.

• Roof Condition: Inspect the metal sheets for severe corrosion, deformation, cracks, or deteriorated sealant. Severely damaged roofs require repair or replacement first.

• Roof Age: Assess if the remaining lifespan can cover the PV system's expected operational period of 25+ years.

2. Precise Positioning and Fixing:

• Clamps must be installed strictly over the roof's load-bearing structural points (e.g., purlins) as per design requirements.

• Tighten clamp bolts strictly to the torque specified in the installation manual. Overtightening can damage the metal sheet or sealing pad; undertightening leads to insecure fixing.

3. Waterproofing is Paramount:

• Ensure all sealing pads under clamps are intact, correctly positioned, and compressed.

• Although penetration-free, take care during installation to avoid scratching or damaging the existing roof waterproofing. After completion, inspect around clamps for any potential leak points.

4. Wind Load Design:

• The mounting system design must comply with local wind load requirements. Reinforcement is especially needed at edges and corners.

• Ensure all connectors are securely tightened. Perform regular inspection and maintenance.

5. Thermal Expansion and Contraction:

• Metal components experience significant thermal movement. Design must include reasonable expansion gaps to avoid stress buildup causing deformation or damage.

Summary of Advantages

• High Safety: Penetration-free installation protects roof waterproofing; reliable structural strength.

• Good Economics: Convenient installation saves labor and time costs; utilizes idle roof space to generate revenue.

• Excellent Power Generation Efficiency: Good ventilation and heat dissipation conditions benefit module performance.

• Environmentally Friendly: Fully utilizes clean energy, reducing carbon emissions.

Potential Challenges & Considerations

• Corrosion Risk: Mounting components and clamps must withstand long-term environmental corrosion; material selection and surface treatment are crucial.

• Thermal Expansion Management: Poor design or improper installation can cause issues.

• Maintenance Access: Safe pathways for future cleaning, inspection, and maintenance need planning on large roofs.

Conclusion

Corrugated metal roof PV mounting technology is highly mature, offering an efficient and reliable solution for PV deployment on commercial, industrial, and residential rooftops. Its core advantage lies in the exceptional waterproof protection and convenient installation afforded by the penetration-free method. Selecting high-quality clamps perfectly matched to the roof profile, conducting rigorous roof load capacity assessments, adhering to standardized installation procedures, and emphasizing corrosion resistance and thermal expansion design are key to ensuring the long-term, safe, and stable operation of a corrugated metal roof PV plant, enabling it to continuously generate green value. As PV applications proliferate and technology advances, corrugated metal roof mounting systems will continue to play a vital role in the distributed energy sector.
