Compact and Lightweight: Mini Rail adopts a minimalist design, which significantly reduces the overall weight and volume of the system compared with traditional large guide rail brackets. This feature greatly simplifies the installation process and improves construction efficiency. Taking a mainstream brand product as an example, its track is made of lightweight aluminum alloy material, which greatly reduces the weight while ensuring structural strength, facilitating the handling operations of installers on high working surfaces such as roofs and reducing construction safety risks.
Strong Aesthetics: The Mini Rail system has unique architectural aesthetic advantages, and its simple and modern design style is more visually appealing than traditional brackets. Due to the reduction of visual interference from large components, it presents a flatter and smoother appearance after installation, which can naturally integrate with various architectural styles. It is especially suitable for commercial buildings and villa projects with high requirements for building appearance, realizing the power generation function without damaging the original aesthetic design of the building.
Flexible Layout: In terms of panel arrangement, Mini Rail shows excellent adaptability. Its small size allows installers to adopt more diverse configuration methods, and the angle and spacing of the panels can be optimized according to the roof structure, thereby improving solar energy utilization and fully tapping the space potential of metal roofs. Even in the face of irregular roofs or areas with obstacles such as pipes and vents, the optimal installation of panels can be achieved through flexible layout to maximize power generation efficiency.
Easy to Install: Mini Rail generally adopts a modular design, and pre-assembled components reduce on-site processing procedures by more than 70%. Installers only need to splice and fix each module in accordance with standardized guidelines to complete the bracket construction. Some systems are equipped with specially designed quick-locking clamps, which can realize the second-level fixing of solar panels, further shortening the installation cycle. This convenience is particularly obvious in large-scale photovoltaic projects, which can effectively shorten the project duration.
High-Quality Aluminum Alloy Material: Most mainstream Mini Rail products are made of high-strength aluminum alloys such as AL6005-T5 and AL6063-T6. These alloy materials have both excellent mechanical properties and corrosion resistance, and can meet the long-term use needs in complex outdoor environments. Taking AL6005-T5 as an example, after anodizing treatment, its tensile strength can reach more than 260MPa, and at the same time, a dense oxide layer is formed to resist corrosion. It is especially suitable for use in coastal areas with high humidity and high salt spray, and its service life can reach more than 25 years.
Surface Treatment Enhances Performance: To further improve durability, Mini Rail is usually subjected to multiple surface treatments. Anodizing treatment can form a 5-10μm hard oxide film, significantly improving wear resistance and corrosion resistance; fluorocarbon spraying process can provide excellent ultraviolet resistance, adapting to high-temperature and strong sunlight environments; some steel connectors adopt hot-dip galvanizing treatment, with a zinc layer thickness of more than 85μm, preventing steel corrosion through the principle of sacrificial anode protection. These processes not only extend the service life of the product but also can customize colors according to architectural needs to enhance the appearance coordination.
Good Durability: Despite its small size, the structural strength of Mini Rail is completely comparable to that of traditional large brackets. Its design has passed strict mechanical simulation tests and can resist the impact of extreme weather - it can withstand wind pressure of 3000Pa (equivalent to a level 12 typhoon) and snow pressure of 500Pa (about 0.5 meters of snow). In the southeast coastal areas prone to typhoons, a reinforced Mini Rail system used in a project successfully withstood a level 14 typhoon, with a 100% intact rate of the bracket structure, ensuring the continuous power generation of the photovoltaic system.
High Cost-Effectiveness: Due to the reduction in the number of components, the Mini Rail system has significant comprehensive cost advantages. The reduction in the purchase volume of materials directly reduces the initial investment, and the improvement in installation efficiency can reduce labor costs by more than 30%. In a 1000㎡ commercial roof photovoltaic project, using the Mini Rail scheme can save 15%-20% of the total cost compared with traditional brackets, and the investment payback period is shortened by 6-8 months, which has extremely high cost performance for cost-sensitive projects.

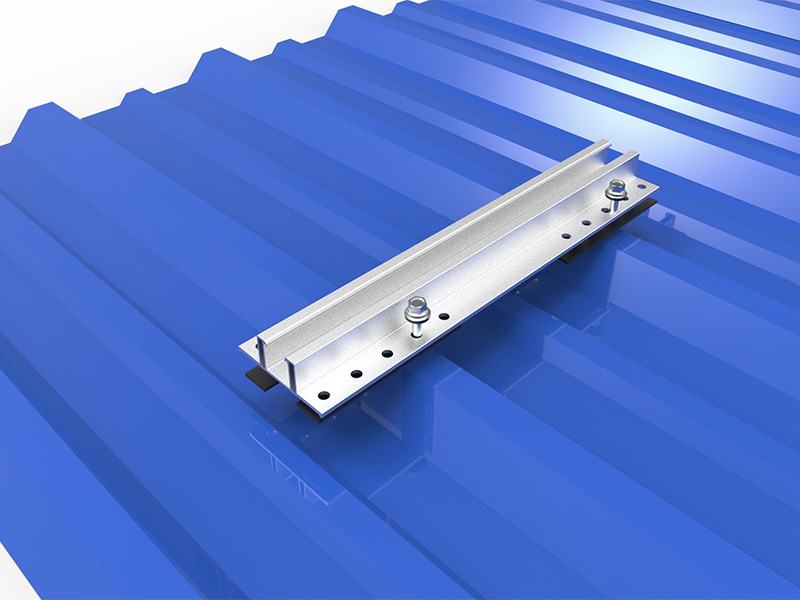

Strong Adaptability: Mini Rail can be adapted to various roof types such as trapezoidal metal roofs, standing seam metal roofs, and color steel tile roofs. According to different roof characteristics, its connection system adopts a customized design: special clamps for trapezoidal roofs can tightly bite with the ribs, and standing seam roofs adopt non-destructive buckle connections, which not only ensure the installation firmness but also avoid damaging the roof waterproof structure. This wide adaptability enables it to meet the photovoltaic transformation needs of various buildings and greatly expand the application scenarios.
Residential Application: In a photovoltaic project of a villa community, the owner required to achieve energy self-sufficiency while retaining the original appearance of the building. After adopting the Mini Rail system, through customized layout, the irregular space of the roof was fully utilized. The installed 30 250W panels generate 35 kWh of electricity per day on average, meeting 80% of the family's electricity demand, and the annual income from surplus electricity connected to the grid is about 2,000 yuan. Its simple appearance is in harmony with the European style of the villa, becoming a demonstration sample of green buildings in the community.
Commercial Building Application: In a 12,000㎡ roof photovoltaic project of a shopping mall, traditional brackets were difficult to adapt due to a large number of ventilation equipment on the roof. After adopting the Mini Rail system, obstacles were avoided through flexible layout, with an installed capacity of 1.5MW and an annual power generation of 1.6 million kWh, meeting 30% of the mall's electricity demand, saving about 180,000 yuan in electricity bills annually, and reducing carbon emissions by 800 tons, becoming a benchmark project for energy conservation and emission reduction in commercial buildings.
Industrial Plant Application: In a 20,000㎡ roof renovation project of a manufacturing enterprise, the Mini Rail system was selected to achieve rapid construction. It only took 15 days to complete the installation of the 2MW photovoltaic system, which was 20 days shorter than the traditional scheme, avoiding affecting the normal production of the factory. After the project was put into operation, the annual power generation was 2.2 million kWh, meeting 40% of the electricity demand of the factory area, reducing the annual electricity expenditure by 250,000 yuan, and the investment payback period was only 5.8 years, providing an efficient solution for the energy transformation of industrial enterprises.
