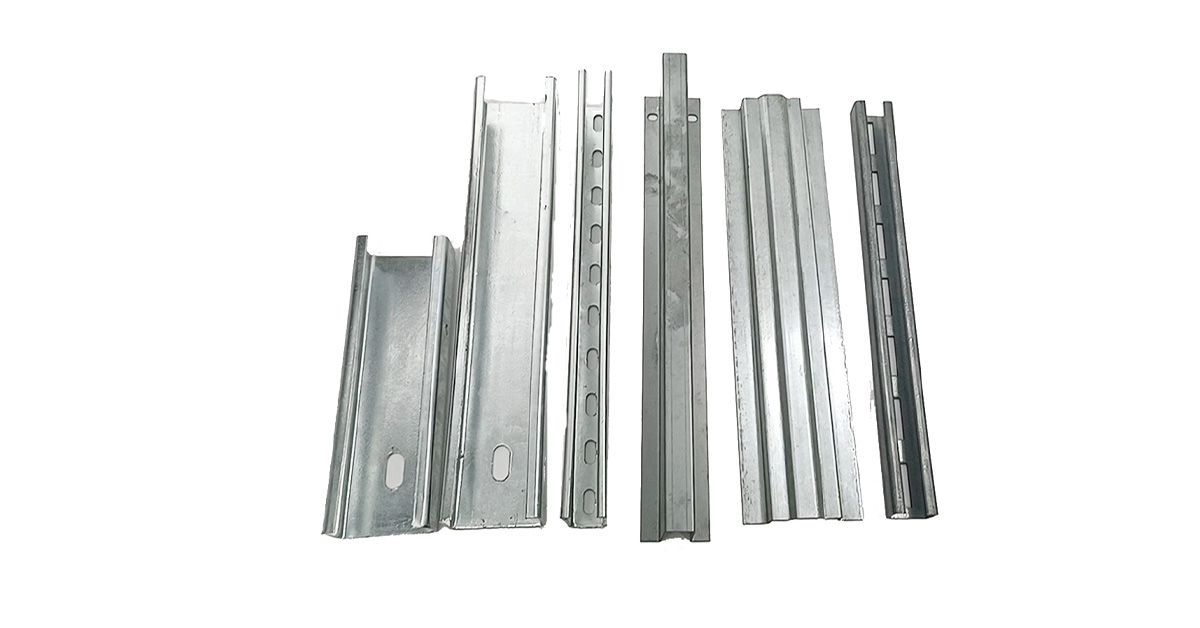

A channel steel beam is a structural element made of steel that has a cross-sectional shape resembling the letter “C.” This shape is also called a channel section or C-beam. The channel consists of a wide, flat central web and two parallel flanges that extend in the same direction. The distinctive profile provides strength and rigidity while using less material compared to a fully rectangular or square section.
Cross-Section Shape: The C-shaped cross-section makes the channel steel beam ideal for applications where one flat surface must be attached to other structural components.
Material: Usually produced from hot-rolled mild steel, high-strength low-alloy steel, or stainless steel.
Sizes: Channel beams come in different sizes and thicknesses. The dimensions are typically specified by the height of the web and the width of the flanges.
Designation: In many standards, channels are labeled by the letter “C” followed by dimensions, for example, C150x75 (where 150 mm is the height, and 75 mm is the flange width).
Channel steel beams are widely used in construction and engineering because of their versatility and ease of installation. Typical applications include:
Structural Support: They can be used as beams, lintels, or columns in buildings and bridges.
Framing: Channel sections are often used for framing walls, floors, and roofs.
Vehicle Manufacturing: They serve as structural components in truck frames and trailers.
Machinery and Equipment: Channels are used to build frames and supports for heavy equipment.
Reinforcements: They strengthen concrete structures when embedded or attached to surfaces.
Lightweight: The open section reduces weight without sacrificing strength.
Ease of Connection: The flat surface allows easy welding, bolting, or riveting.
Cost-Effective: Channels often provide an economical alternative to other shapes like I-beams in light to medium-duty applications.
Flexibility: They can be cut, drilled, and customized for different projects.
In summary, a channel steel beam is a C-shaped steel profile commonly used in construction, manufacturing, and engineering. Its combination of strength, light weight, and ease of fabrication makes it a popular choice for a wide variety of structural and support applications.
