Solar structures, also known as solar mounting systems, are essential frameworks that support solar panels, ensuring optimal positioning for maximum sunlight exposure. These structures play a critical role in the efficiency, durability, and longevity of solar power systems. This article explores the components, types, materials, and applications of solar structures, providing a comprehensive understanding of their importance in solar energy systems.
A typical solar mounting structure consists of several key components:
Mounting Rails & Frames – Provide the base support for solar panels.
Clamps & Brackets – Secure panels to the rails, preventing movement from wind or weather.
Foundation & Supports – Includes ground screws, concrete bases, or ballasts (for rooftop systems).
Tilt Adjustment Mechanism – Allows angle optimization for better sunlight absorption.
Fasteners & Bolts – Ensure structural stability and resistance to environmental stress.
Solar mounting systems vary based on installation location and design:
Fixed-Tilt Systems – Simple, cost-effective, with a set angle.
Adjustable-Tilt Systems – Allow seasonal angle changes for better efficiency.
Ballasted Systems – Use weights instead of roof penetrations (common on flat roofs).

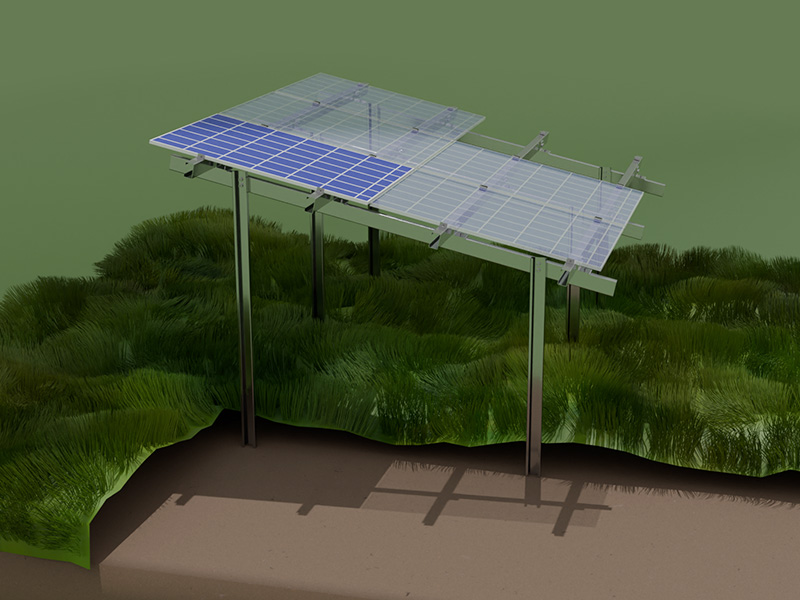

Fixed-Tilt Ground Mounts – Permanent angle, ideal for large solar farms.
Tracking Systems – Adjust panels to follow the sun (single-axis or dual-axis tracking).
Pole Mounts – Elevate panels above ground, useful in uneven terrain.
Provide shade for parking areas while generating solar power.
Often used in commercial and industrial settings.
Installed on water bodies (lakes, reservoirs).
Reduce land usage and improve efficiency due to cooling from water.
The durability of solar structures depends on material selection:
Aluminum – Lightweight, corrosion-resistant, and widely used.
Galvanized Steel – Strong and cost-effective but requires anti-rust treatment.
Stainless Steel – Highly durable, used in harsh environments.
Composite Materials – Emerging options for lightweight and flexible designs.
When designing or selecting a solar structure, factors to consider include:
Load Capacity – Must withstand wind, snow, and seismic forces.
Corrosion Resistance – Essential for long-term durability.
Tilt Angle & Orientation – Affects energy production efficiency.
Ease of Installation & Maintenance – Impacts overall system cost.
Local Regulations & Building Codes – Compliance ensures safety and legality.
Solar mounting systems are used in various settings:
Residential Rooftops – Small-scale solar panel installations.
Commercial & Industrial Buildings – Large rooftop or ground-mounted systems.
Solar Farms – Utility-scale energy generation.
Off-Grid & Remote Installations – Solar-powered water pumps, telecom towers, etc.
Solar structures are a crucial part of photovoltaic systems, ensuring panels are securely mounted and optimally positioned for maximum energy production. The choice of structure depends on installation type, environmental conditions, and project requirements. As solar technology advances, innovations in mounting systems continue to improve efficiency, durability, and cost-effectiveness, further driving the adoption of solar energy worldwide.
1. What is a solar cell structure?
A solar cell (photovoltaic cell) typically has this layered structure:
Anti-reflective coating – Reduces light reflection.
Front contact (grid electrodes) – Collects electrons.
N-type semiconductor layer – Rich in free electrons.
P-type semiconductor layer – Rich in "holes" (positive charge carriers).
P-N junction – Creates an electric field for electron flow.
Back contact – Completes the electrical circuit.
2. What is the structure of the solar system?
The solar system consists of:
The Sun (central star, 99.8% of mass).
8 planets (Mercury, Venus, Earth, Mars, Jupiter, Saturn, Uranus, Neptune).
Dwarf planets (Pluto, Ceres, etc.).
Moons, asteroids, comets, and the Kuiper Belt.
3. What is the solar interior structure?
The Sun’s internal layers are:
Core (nuclear fusion produces energy).
Radiative Zone (energy moves outward as radiation).
Convective Zone (hot plasma circulates like boiling water).
Photosphere (visible "surface").
Chromosphere & Corona (outer atmosphere).
4. How high should solar panels be above the roof?
4-6 inches (10-15 cm) is standard for airflow and cooling.
Local building codes and wind load requirements may affect height.
