Views: 0 Author: Site Editor Publish Time: 2025-10-10 Origin: Site
Are you maximizing your solar panel's potential? PV panel mounting brackets are crucial for solar efficiency. Without them, panels risk damage and reduced energy output. In this guide, we’ll explore the importance of these brackets and how they enhance solar installations. You'll learn about different types, materials, and installation tips to ensure your solar system's stability and performance.
PV panel mounting brackets are the hardware pieces that secure solar panels to various surfaces like roofs, walls, or the ground. They act as the foundation holding panels in place, ensuring they stay stable and correctly positioned to capture sunlight. Without these brackets, panels could shift or get damaged by wind, rain, or snow. Think of them as the "hands" that firmly grip the panels and keep them steady, allowing the solar system to work efficiently and safely.
Mounting brackets play a crucial role in solar installations. They:
● Secure panels firmly to prevent movement or damage.
● Position panels at the ideal angle and orientation to maximize sunlight exposure.
● Help withstand environmental forces such as wind pressure and snow load.
● Protect the panels and the entire solar system, extending its lifespan.
● Ensure the installation meets safety and building codes.
In essence, brackets are not just accessories but key components that directly impact energy output and system durability.
There are several types of PV panel mounting brackets, each designed for specific installation environments and needs. The main types include:
● Roof-Mounted Brackets: These attach solar panels directly to rooftops. They come in variations suited for pitched roofs (angled) or flat roofs, allowing panels to be positioned at optimal tilt angles.
● Ground-Mounted Brackets: Used when panels are installed on the ground. These often allow for adjustable tilts and can be easier to maintain or reposition.
● Wall-Mounted Brackets: Suitable for vertical mounting on building walls, useful in limited space scenarios.
● Tracking Systems: These are advanced mounting setups that move panels throughout the day to follow the sun, maximizing solar exposure and energy production.
Each bracket type serves a unique purpose, and choosing the right one depends on site conditions, panel type, and energy goals.
PV panel mounting brackets provide the critical support solar panels need to stay firmly in place. They secure panels against shifting or lifting caused by wind or other forces. Without sturdy brackets, panels risk damage or misalignment, reducing their ability to capture sunlight effectively. Brackets also maintain the correct tilt and orientation, which is vital for maximizing solar energy absorption. Think of them as the backbone of the solar installation, holding everything steady so the system can perform at its best.
The angle and position of solar panels directly influence how much sunlight they absorb. Mounting brackets enable precise adjustments to panel tilt and orientation, ensuring panels face the sun optimally throughout the day and across seasons. This positioning can significantly boost energy output. Even small misalignments can cause noticeable drops in efficiency. Therefore, the right brackets not only hold panels but also help unlock their full energy potential by maintaining ideal exposure.
Solar panels face harsh weather conditions—strong winds, heavy snow, rain, and temperature changes. Mounting brackets are designed to withstand these environmental forces, protecting panels from damage. They distribute loads evenly across the structure, preventing stress points that could crack or warp panels. Brackets also help absorb vibrations and thermal expansion, extending the lifespan of the entire solar system. Choosing brackets rated for local wind speeds and snow loads ensures your installation remains safe and reliable year-round.
PV panel mounting brackets come in several types tailored for different installation settings. Choosing the right type ensures stability, efficiency, and ease of maintenance. Here’s a closer look at the main categories:
These brackets attach panels directly to rooftops and are the most common choice for residential and commercial solar systems. They split mainly into two types:

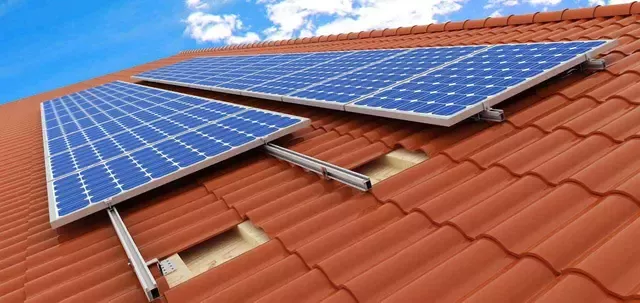

● Pitched Roof Brackets: Designed for sloped roofs, these brackets match the roof’s angle. They often allow easy adjustment of the panel tilt, helping capture sunlight effectively. Installation usually avoids penetrating the roof surface, preserving its integrity.
● Flat Roof Brackets: These use a ballast system to hold panels in place without roof penetration. They tilt panels at adjustable angles to maximize sunlight exposure. Flat roof brackets are ideal for urban environments where roof space is limited.
Used when rooftop installation isn’t feasible, ground-mounted brackets secure panels on the ground. They offer several advantages:
● Easier maintenance and cleaning access.
● Adjustable tilt angles to track seasonal sun changes.
● Flexibility to reposition panels if needed.
Ground mounts are common for large-scale solar farms or open land installations.
These brackets fix panels vertically on building walls. They suit locations with limited roof or ground space. Wall mounts can serve as architectural features or shading devices while generating power. However, they typically capture less sunlight than tilted roof or ground mounts.
Tracking brackets are advanced mounts that move panels throughout the day to follow the sun’s path. They come in two main types:
● Single-axis trackers: Rotate panels east to west to follow the sun’s daily movement.
● Dual-axis trackers: Adjust both tilt and rotation to track the sun’s position seasonally and daily.
Tracking systems can boost energy output by up to 25–35% compared to fixed mounts but involve higher costs and maintenance.
When choosing PV panel mounting brackets, the material is a key factor affecting durability and performance. Aluminum and stainless steel are the two most common materials used for brackets.
● Aluminum is lightweight and corrosion-resistant, making it ideal for rooftop installations where weight matters. It naturally forms a protective oxide layer, preventing rust and extending lifespan. Aluminum brackets are easier to handle and install, reducing labor time and costs. They also offer good strength for most residential and commercial solar systems.
● Stainless Steel is heavier but offers superior strength and durability. It’s often used for bolts, nuts, and specialized components that require extra toughness. Stainless steel withstands harsh weather and resists corrosion even in salty or humid environments. For ground-mounted systems or areas with extreme conditions, stainless steel brackets provide added reliability.
Many mounting systems combine both materials—aluminum for the main bracket body and stainless steel for fasteners—to balance weight, strength, and corrosion resistance.
Corrosion can severely impact the integrity of mounting brackets. Since solar panels are exposed to rain, snow, and varying temperatures, brackets must resist rust and degradation over time.
● Aluminum’s natural oxide layer offers excellent corrosion resistance, especially when anodized. This anodizing process thickens the protective layer, improving resistance to environmental wear.
● Stainless steel is inherently corrosion-resistant due to its chromium content, which forms a protective film on the surface. It performs well even in coastal or industrial areas with salt or pollutants.
Choosing brackets with proven corrosion resistance helps prevent structural failures and costly maintenance.
High-quality mounting brackets should last as long as the solar panels themselves—typically 25 years or more. Proper material choice and protective coatings contribute to longevity.
● Aluminum brackets require minimal maintenance but should be inspected periodically for physical damage or loose fasteners.
● Stainless steel components may need occasional cleaning to remove dirt or salt deposits, especially in coastal regions.
Routine inspections ensure brackets remain secure and functional, preserving system efficiency and safety.
Choosing mounting brackets that fit your installation site is crucial. Different roofs and grounds require specific types of brackets to ensure a secure fit. For example, pitched roofs need brackets that match the slope and roofing material, while flat roofs often use ballasted or tilted brackets. Ground mounts must suit soil conditions and terrain to prevent shifting or sinking. Installing incompatible brackets can cause damage, reduce stability, and lower solar efficiency.
Always check the structural integrity and material of the mounting surface. Some roofs, like tile or metal, need specialized brackets or hooks to avoid leaks and maintain durability. For walls or unconventional surfaces, verify the bracket’s ability to hold weight and resist environmental stress. Site compatibility ensures your system stays stable and performs optimally for years.
Adjustable brackets allow you to tilt and orient solar panels to capture maximum sunlight throughout the day and seasons. Fixed brackets limit this flexibility, which can reduce energy output, especially in locations with changing sun angles. Adjustable systems enable fine-tuning the panel angle for better solar gain, improving overall efficiency.
Ground-mounted systems benefit most from adjustable brackets since they can be repositioned easily. Roof-mounted brackets with tilt options help optimize panel angles without structural changes. When choosing brackets, consider how much adjustability you need based on your location’s latitude and shading conditions. This feature can significantly boost your solar system’s energy production.
Mounting brackets must withstand local environmental forces like wind pressure and snow accumulation. Each bracket has a load rating indicating the maximum wind speed and snow weight it can safely handle. Selecting brackets with appropriate ratings protects panels from damage and prevents system failure.
High wind areas require brackets that resist uplift and vibration. Heavy snow regions need strong brackets that support extra weight without bending or breaking. Using brackets with insufficient load ratings risks costly repairs and downtime. Always consult local building codes and weather data to match bracket ratings with site conditions.
Tip: Choose PV panel mounting brackets rated for your specific site’s wind and snow loads to ensure safety, durability, and peak solar performance.
Installing PV panel mounting brackets correctly is crucial for solar system stability and efficiency. Here’s a straightforward step-by-step process to guide you through:
1. Site Assessment and PreparationInspect the installation site carefully. Check roof or ground conditions, confirm structural integrity, and clear the area of debris.
2. Mark Bracket PositionsBased on panel size and layout, mark exact points for bracket placement. Ensure spacing meets manufacturer specs for load distribution.
3. Attach Brackets to SurfaceSecure brackets to the roof, wall, or ground using appropriate fasteners. For roofs, use roof hooks or anchors designed for the material (tile, metal, asphalt). For ground mounts, use concrete footings or ground screws.
4. Install Mounting RailsFix rails onto the brackets. Rails act as the frame that holds the panels. Make sure rails are level and aligned.
5. Secure Panels with ClampsPlace solar panels on the rails, then fasten them using mid and end clamps. Tighten clamps evenly to avoid panel damage.
6. Adjust Tilt and OrientationIf brackets offer adjustability, set the panel tilt angle for optimal sunlight exposure. Double-check alignment.
7. Perform Final InspectionVerify all bolts and clamps are tight. Check for any loose components or potential weak points.
8. Electrical Connections and GroundingConnect wiring and ensure the mounting system is properly grounded according to electrical codes.
● Uneven Roof SurfacesSolution: Use adjustable brackets or shims to level panels.
● Roof Material CompatibilitySolution: Select brackets and hooks designed specifically for the roof type to avoid leaks or damage.
● Wind Uplift RisksSolution: Use brackets rated for local wind speeds and secure fasteners properly.
● Snow Load ConcernsSolution: Choose brackets with adequate load ratings and reinforce if necessary.
● Panel Damage from Over-tighteningSolution: Tighten clamps to manufacturer torque specs to prevent cracking.
● Always wear personal protective equipment (PPE) such as gloves, helmet, and safety harnesses when working at heights.
● Use proper ladders and scaffolding to maintain stability during installation.
● Turn off electrical power before starting any wiring work.
● Follow local building codes and manufacturer instructions strictly.
● Inspect tools and equipment before use to ensure they are in good condition.
●
PV panel mounting brackets are essential for solar installations, ensuring stability, optimal sunlight exposure, and protection against environmental forces. Proper bracket selection enhances energy output and system longevity. Choosing the right brackets tailored to site conditions boosts solar efficiency. Hainan Solar offers high-quality brackets that provide durability and corrosion resistance, enhancing solar system performance. Their products are designed to meet specific installation needs, ensuring maximum energy production and safety. Selecting Haina Solar's brackets guarantees a reliable and efficient solar setup.
A: PV panel mounting brackets are hardware pieces that secure solar panels to surfaces like roofs, walls, or the ground, ensuring stability and optimal sunlight capture.
A: They position panels at ideal angles, maximizing sunlight exposure and energy output, while protecting against environmental forces like wind and snow.
A: They ensure panels remain stable, safe, and correctly oriented, significantly impacting energy efficiency and system durability.
A: The cost varies based on material (aluminum or stainless steel), type (roof, ground, wall-mounted), and additional features like adjustability or tracking systems.
A: Consider site conditions, compatibility with the mounting surface, adjustability for sunlight exposure, and local wind and snow load ratings.
